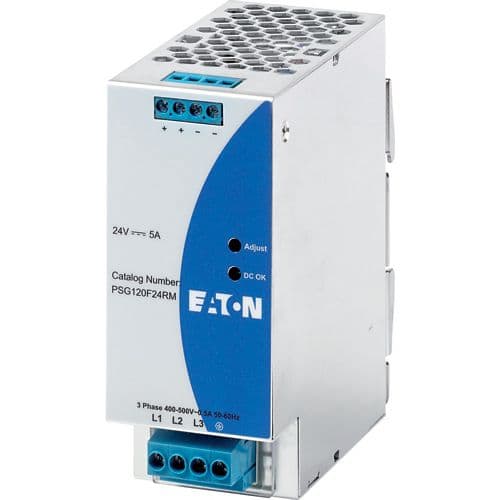

Eaton PSG power supply unit

Eaton

Eaton PSG power supply unit

رقم القطعة: 172885

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton PSG power supply unit

المواصفات

Product NameEaton PSG power supply unit
Catalog Number172885
Model CodePSG480F24RM
EAN4015081694730
Product Length/Depth175 mm
Product Height170 mm
Product Width155 mm
Product Weight1.485 kg
CertificationsEN 50178/IEC 62103 Electrical Safety (of IT equipment) : SIQ to EN60950-1, UL/c-UL recognized to UL 60950-1, CSA-C22.2 No. 60950-1, CB scheme to IEC 60950-1 SELV (EN 60950) Electrical equipment of machines: IEC60204-1 (Overvoltage category III) RoHS 2014/35/EU EN 55011 2014/30/EU Protection against electric shock: DIN 57100-410 Class2: UL1310 and CSA-C22.2 No. 223 Mains harmonics limitation: EN 601000-3-2 IEC/EN 61204-3 ITE: EN 55022, EN 61000-3-2, EN 61000-3-3, EN 55024 PELV (EN 60204) UL 508 IEC Rated CSA Std. C22.2 EN Listed EAC
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.172885.html
Shock resistance30 g (300 m/s²) in all directions, Mechanical, According to IEC/EN 60068-2-27
Vibration resistance10 - 500 Hz at 30 m/s² (3 G max ) for 60 min. in X-axis, Y-axis, Z-axis directions, (IEC/EN 60068-2-6)
