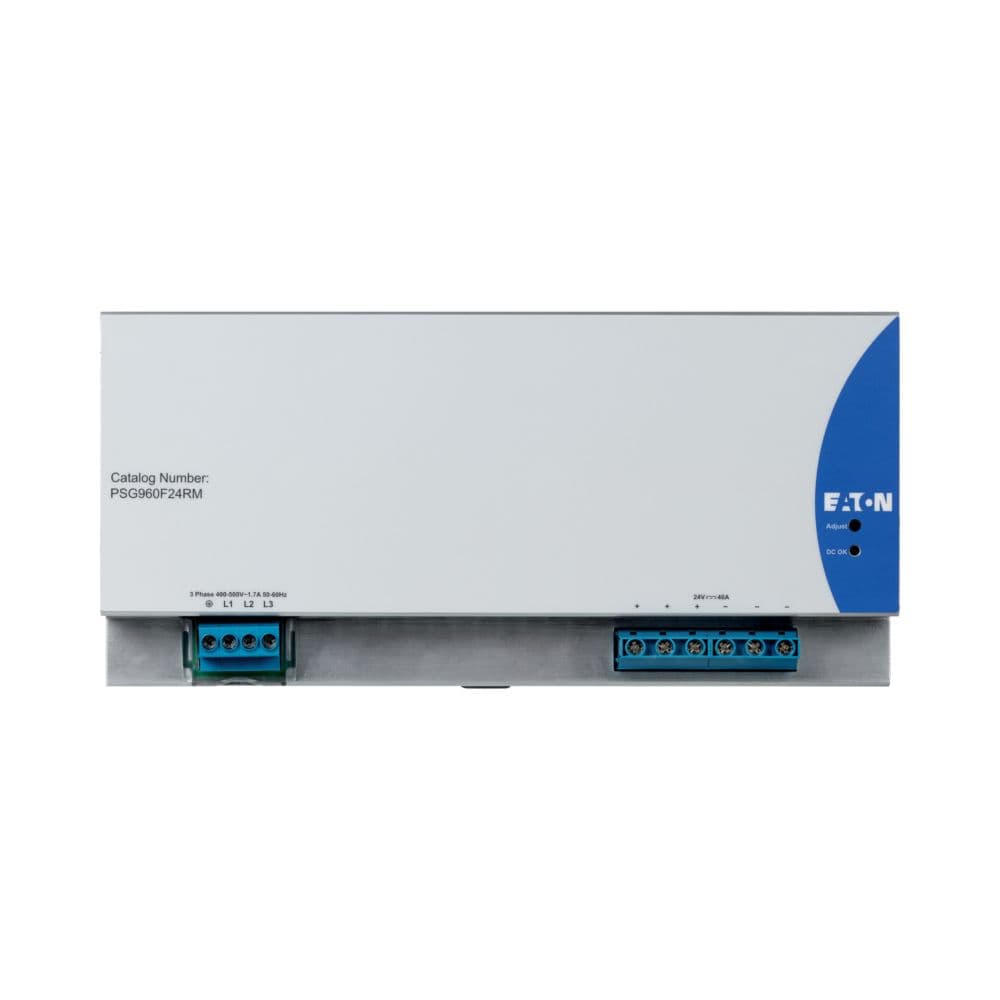

Eaton PSG power supply unit

Eaton

Eaton PSG power supply unit

رقم القطعة: 172886

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton PSG power supply unit

المواصفات

Product NameEaton PSG power supply unit
Catalog Number172886
Model CodePSG960F24RM
EAN4015081694747
Product Length/Depth380 mm
Product Height165 mm
Product Width160 mm
Product Weight2.66 kg
CertificationsPELV (EN 60204) EN 50178/IEC 62103 2014/35/EU RoHS ITE: EN 55022, EN 61000-3-2, EN 61000-3-3, EN 55024 Electrical Safety (of IT equipment) : SIQ to EN60950-1, UL/c-UL recognized to UL 60950-1, CSA-C22.2 No. 60950-1, CB scheme to IEC 60950-1 EN 55011 IEC/EN 61204-3 2014/30/EU Mains harmonics limitation: EN 601000-3-2 Class2: UL1310 and CSA-C22.2 No. 223 SELV (EN 60950) Electrical equipment of machines: IEC60204-1 (Overvoltage category III) Protection against electric shock: DIN 57100-410 UL 508 IEC Rated CSA Std. C22.2 EN Listed EAC
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.172886.html
Shock resistance30 g (300 m/s²) in all directions, Mechanical, According to IEC/EN 60068-2-27
Vibration resistance10 - 500 Hz at 30 m/s² (3 G max ) for 60 min. in X-axis, Y-axis, Z-axis directions, (IEC/EN 60068-2-6)
