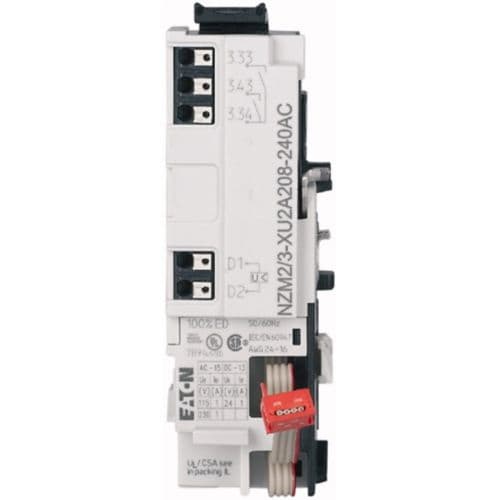

Eaton Moeller series NZM Shunt release

المواصفات

Special featuresThe breakers are actuated by a voltage pulse or by applying a no-break current.For signalizing commands or different states of the circuit-breaker.Two relays per unit.The activation criteria can be configured in the trip unit.Configuration via communication or circuit breaker display or front USB port and Eaton Power Xpert Protection Manager.If the shunt trip is live, contact with the circuit breaker’s primary contacts is prevented when switched on.Only for use in combination with circuit-breakers with electronic trips.Shunt trip relay modules cannot be installed simultaneously with make-before-break auxiliary contact NZM...-XHIV, under-voltage trip NZM...-XU... or shunt trip NZM...-XA.Relay coil is controlled by trip unit.Relay contacts for control wiring.Relays can be used for controlling remote operator with Us=208-204 V AC.Control wiring on push-in clamps.Cannot be used with the PXR10 NZM-AX electronic trip.
Product NameEaton Moeller series NZM Shunt release
Catalog Number189744
Model CodeNZM4-XA2A24AC/DC
EAN4015081877393
Product Length/Depth110 mm
Product Height63 mm
Product Width62 mm
Product Weight0.245 kg
CompliancesUL/CSA IEC RoHS conform
CertificationsIEC60947 UL listed UL (File No. E140305) CSA (Class No. 1437-01) UL489 CE marking CSA-C22.2 No. 5-09 CSA certified UL (Category Control Number DIHS) CSA (File No. 22086)
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.189744.html
Suitable forOff-load switch Motor safety switch
Used withPXR20(25) NZM4(-4)-..X…
TypeAccessoryShunt releaseShunt release with two relays
FrameNZM4
