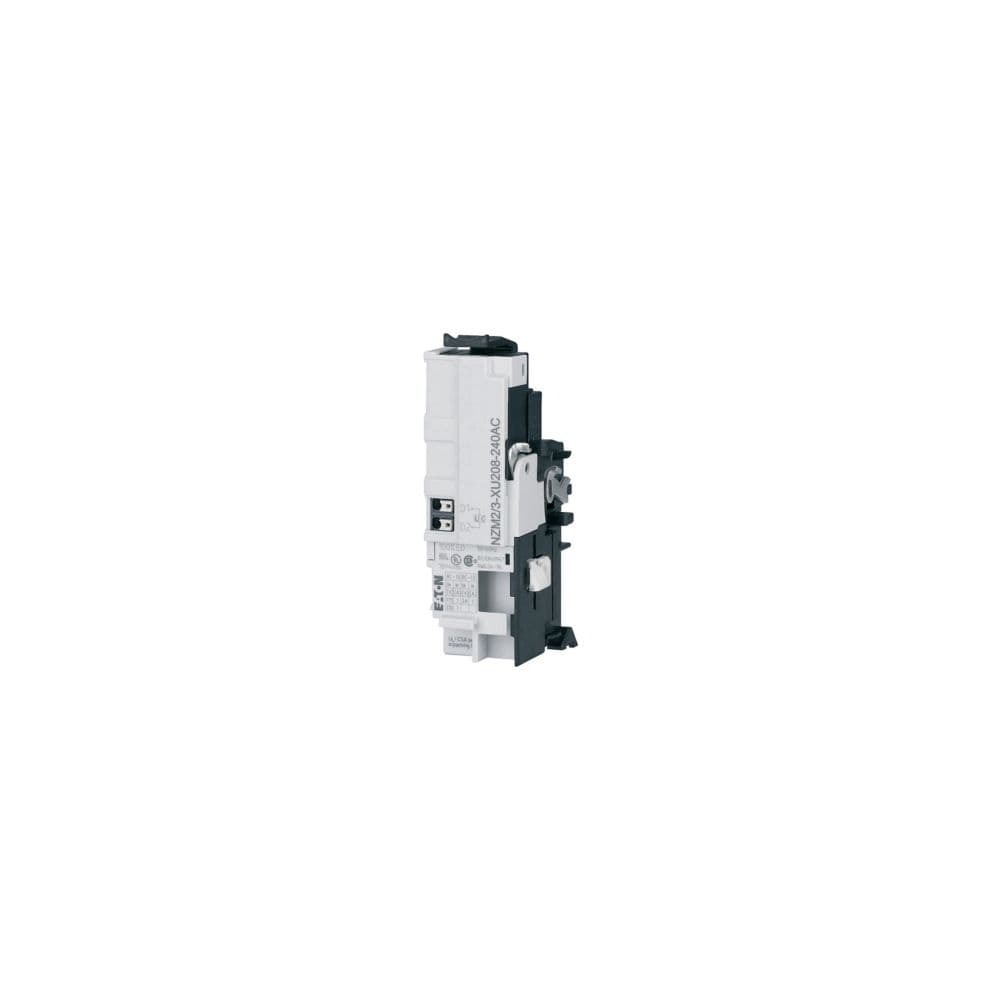

Eaton Moeller series NZM Undervoltage release

Name: Eaton Moeller series NZM Undervoltage release
Brand: Eaton
SKU: 189750

رقم القطعة: 189750

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM Undervoltage release

Special features	Non-delayed disconnection of NZM circuit-breaker or N switch-disconnector when the control voltage sinks below 35 – 70% US. For use with emergency-stop devices in connection with an emergency-stop button. When the under-voltage trip is switched off, accidental contact with the circuit breaker’s primary contacts is prevented when switched on. Undervoltage release modules cannot be installed simultaneously with early-make contact NZM…-XHIV, shunt release NZM…-XA… or relais modules NZM...-X2A...
Product Name	Eaton Moeller series NZM Undervoltage release
Catalog Number	189750
Model Code	NZM2/3-XU24AC-PI
EAN	4015081877454
Product Length/Depth	115 mm
Product Height	65 mm
Product Width	75 mm
Product Weight	0.08 kg
Compliances	IEC UL/CSA RoHS conform
Source URL	https://www.eaton.com/gb/en-gb/skuPage.189750.html
Suitable for	Motor safety switch Off-load switch
Used with	NZM2(-4), N(S)2(-4) NZM3(-4), N(S)3(-4)
Type	Undervoltage release
Frame	NZM2/3
