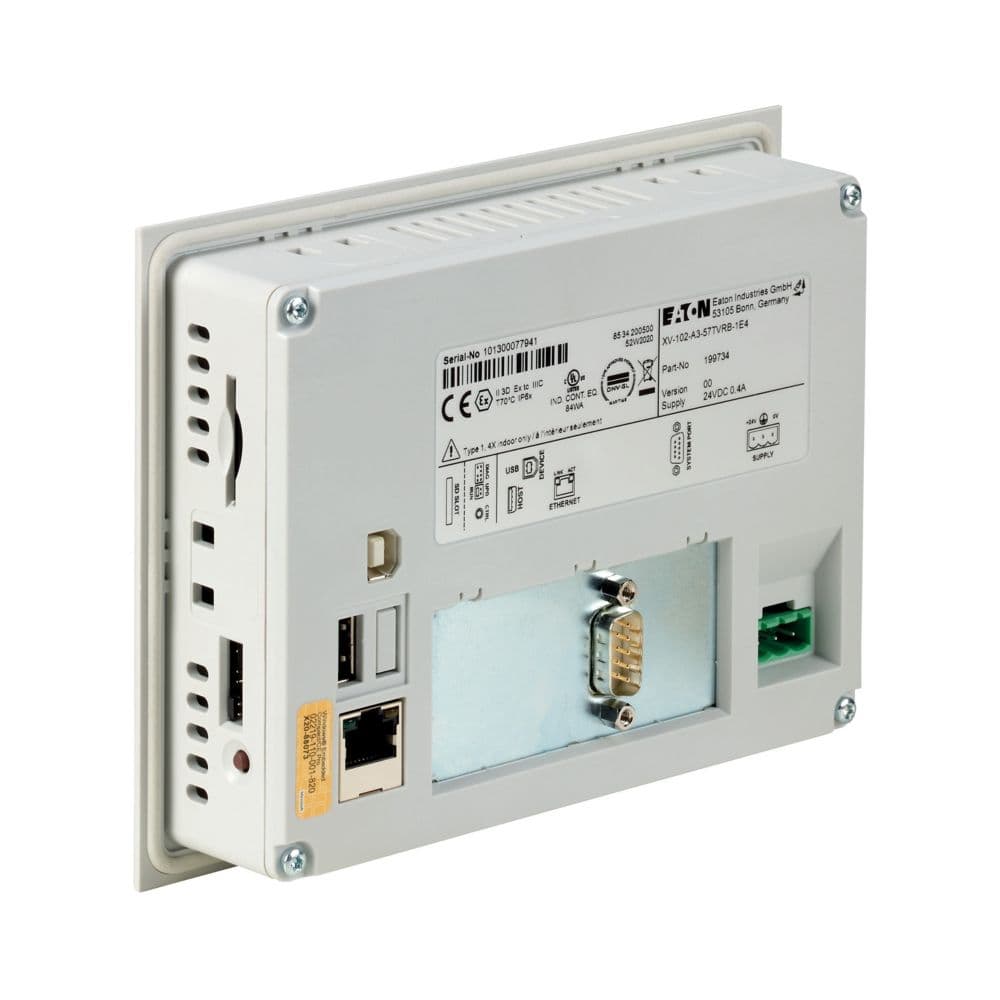

Eaton XV-102 Touch panel
رقم القطعة: 199734
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Eaton XV-102 Touch panel
المواصفات
| Ambient operating temperature - max | 50 °C |
|---|---|
| Ambient operating temperature - min | 0 °C |
| Product Name | Eaton XV-102 Touch panel |
| Catalog Number | 199734 |
| Model Code | XV-102-A3-57TVRB-1E4 |
| EAN | 7640130099746 |
| Product Length/Depth | 170 mm |
| Product Height | 39 mm |
| Product Width | 130 mm |
| Product Weight | 0.52 kg |
| Compliances | Eaton supports the product until its end of life |
| Certifications | UL File No.: E208621 CSA Class No.: NWGQ8 UL Category Control No.: NWGQ2 DNV GL |
| Source URL | https://www.eaton.com/gb/en-gb/skuPage.199734.html |
| Features | USB Host Ethernet interface Slot for SD card UL508, cUL approvals Fanless CPU and system cooling, natural convection-based passive cooling USB device |
| Type | Touch display for easyE4 |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| 10.2.5 Lifting | Does not apply to enclosures without lifting aids. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| Degree of protection | IP65 |
| Enclosure material | Plastic |
| Built-in depth | 34 mm |
| Mounting method | Flush mounting |
| Model | Insulating enclosure and front plate |
| Fitted with: | 1 x USB device (built-in interface) 1 x Ethernet 100base-TX/10base-T (built-in interface) Alpha numeric keyboard Color display Message indication Message system (incl. buffer and confirmation) Numeric keyboard Printer output Recipes SW interfaces |
| Shock resistance | Mechanical, According to IEC/EN 60068-2-27 |
| Vibration resistance | According to IEC/EN 60068-2-6 |
| Operating temperature - max | 50 °C |
| Operating temperature - min | 0 °C |
| Equipment heat dissipation, current-dependent Pvid | 9.5 W |
| Static heat dissipation, non-current-dependent Pvs | 9.5 W |
| Product category | XV100 |
| Degree of protection (front side) | IP65 NEMA 4X |
| Voltage type | DC |
| Power consumption | Max. 10 W 2.5 W (USB Slave to USB Host) 9.5 W total 7 W |
| Memory capacity | 64,000 kByte |
| Memory | 32 kByte internal NVRAM (retained data) SD Memory Card Slot: SDA Specification 1.00 (External) 128 MByte internal NAND-Flash (can be used for data backup) 64 MByte internal DRAM (OS, Program and data memory) |
| Relative humidity | 10 - 90 % (non-condensing) |
| Fuse type | Built-in fuse (not accessible) |
| Air pressure | 795 - 1080 hPa (operation) |
| Number of HW-interfaces (industrial ethernet) | 1 |
| Number of HW-interfaces (other) | 0 |
| Number of HW-interfaces (parallel) | 0 |
| Number of HW-interfaces (RS-232) | 0 |
| Number of HW-interfaces (RS-422) | 0 |
| Number of HW-interfaces (RS-485) | 0 |
| Number of HW-interfaces (USB) | 1 |
| Number of HW-interfaces (wireless) | 0 |
| Number of interfaces (PROFINET) | 0 |
| Protection against polarity reversal | Yes |
| Residual ripple | ≤ 5 % (input voltage) |
| Processor | RISC CPU, 32 Bit, 400 MHz |
| Supply voltage at AC, 50 Hz - max | 0 VAC |
| Supply voltage at AC, 50 Hz - min | 0 VAC |
| Supply voltage at AC, 60 Hz - max | 0 VAC |
| Supply voltage at AC, 60 Hz - min | 0 VAC |
| Supply voltage at DC - max | 28.8 VDC |
| Supply voltage at DC - min | 20.4 VDC |
| Interfaces | USB 2.0 host (1.5 - 12 Mbit/s, not galvanically isolated) Ethernet (100Base-TX/10Base-T) RS232 (not galvanically isolated, 9-pin SUB-D plug, UNC) |
| Voltage dips | ≤ 10 ms from rated voltage (24 V DC) 5 ms from undervoltage (19.2 V DC) |
| Width of the front | 170 mm |
| Resolution | 640 x 480 pxVGA |
| Display size | 115 x 86 mm |
| Backup time | 10 years, typ. (time at zero voltage) |
| Front height | 130 mm |
| Number of buttons (programmable function) | 0 |
| Number of buttons with LED | 0 |
| Number of grey-scales/blue-scales of display | 0 |
| Operating system | Windows CE 5.0 (license included) |
| Software | GALILEO, Visualization software, Engineering |
| Display contrast ratio | 300:1 |
| Number of slots | 1 (for SD-Card) |
| Display lighting | Dimmable via software LED |
| Display type | Standard front with standard membrane (fully enclosed) TFT |
| Lifespan | 40,000 h (Service life of back-lighting) |
| Rated control supply voltage | 24 V DC (UAUX, -20 %/+25 %) 24 V DC (UPOW, -20 %/+25 %) |
| Luminance intensity | 250 cd/m² |
| Number of colors of the display | 64000 |
| RoHs conformity | Yes |
| Touch technology | Glass with film touch sensor Resistive touch Touch sensor (glass with foil), Resistive touch protective screen |
| Number of HW-interfaces (serial TTY) | 0 |
| Number of online/runtime languages | 100 |
| Number of password levels | 200 |
| Number of pixels (horizontal) | 320 |
| Number of pixels (vertical) | 240 |
| Number of system buttons | 1 |
| Screen size (diagonal) | 5.7 in |
| Permissible voltage | 35 V DC (for a duration of < 100 ms) 19.2 - 30 V DC, effective (rated operating voltage -20 %/+25 %) 18.0 - 31.2 V DC, absolute with ripple 18 - 31.2 V DC, battery powered (rated operating voltage -25 %/+30 %) |
| Rated operational voltage | 24 V DC (power-supply - safety extra low voltage) |
