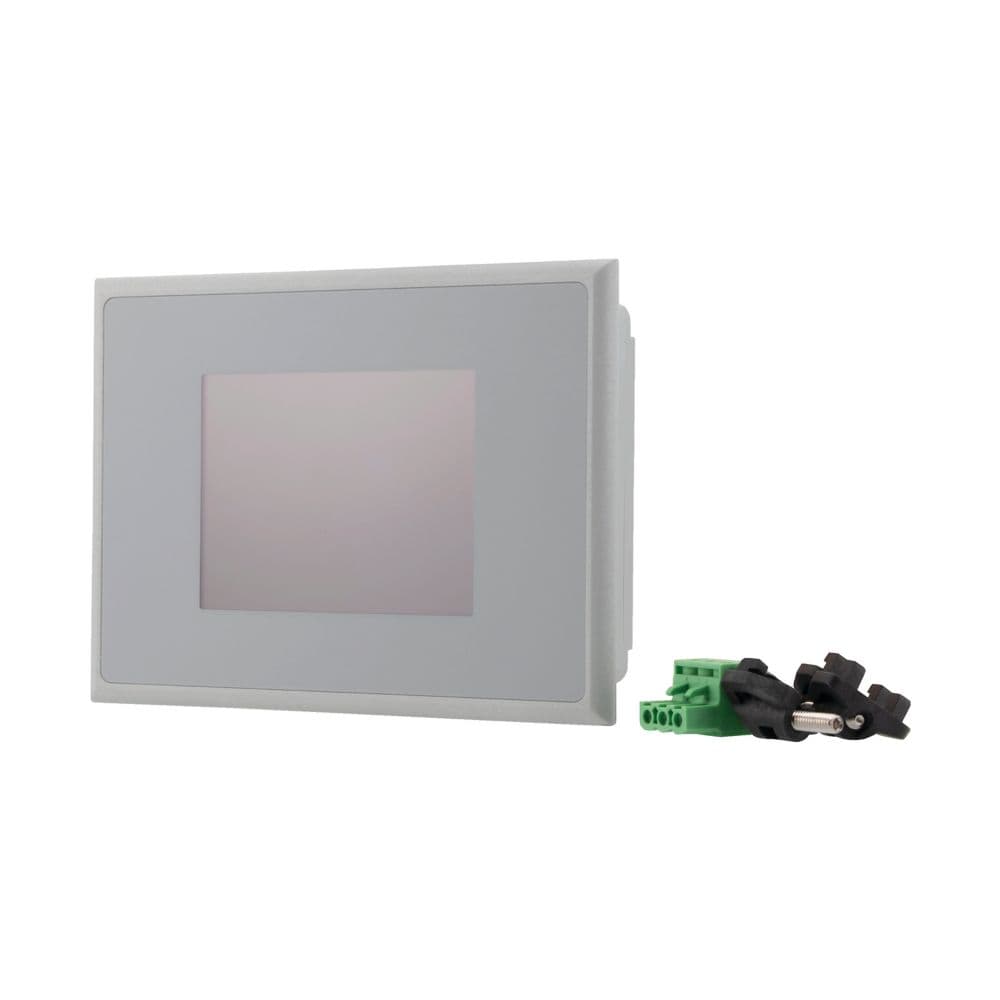

Eaton XV-102 Touch panel

Name: Eaton XV-102 Touch panel
Brand: Eaton
SKU: 198513

رقم القطعة: 198513

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton XV-102 Touch panel

المواصفات

Ambient operating temperature - max	50 °C
Ambient operating temperature - min	0 °C
Ambient storage temperature - max	60 °C
Ambient storage temperature - min	-20 °C
Functions	Process value representation (output) possible Process default value (input) possible Additional software components, loadable
Product Name	Eaton XV-102 Touch panel
Catalog Number	198513
Model Code	XV-102-A0-35TQRB-1E4
EAN	7640130099500
Product Length/Depth	136 mm
Product Height	30 mm
Product Width	100 mm
Product Weight	0.24 kg
Compliances	Eaton supports the product until its end of life
Certifications	CE marking CSA-C22.2 No. 60950-1 UL Category Control No.: NWGQ2 UL Recognized Certified by UL for use in Canada UL 60950-01 EAC IEC/EN 61131-2 CUL508 UL File No.: E208621 UL report applies to both US and Canada CSA Class No.: NWGQ8
Source URL	https://www.eaton.com/gb/en-gb/skuPage.198513.html
Used with	EASY-E4
Features	USB device Slot for SD card Ethernet interface UL508, cUL approvals Fanless CPU and system cooling, natural convection-based passive cooling
Type	Touch display for easyE4
10.10 Temperature rise	The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating	Is the panel builder's responsibility.
10.12 Electromagnetic compatibility	Is the panel builder's responsibility.
10.13 Mechanical function	The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
10.2.2 Corrosion resistance	Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures	Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat	Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects	Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation	Please enquire
10.2.5 Lifting	Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact	Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions	Meets the product standard's requirements.
10.3 Degree of protection of assemblies	Meets the product standard's requirements.
10.4 Clearances and creepage distances	Meets the product standard's requirements.
10.5 Protection against electric shock	Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components	Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections	Is the panel builder's responsibility.
10.8 Connections for external conductors	Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength	Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage	Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material	Is the panel builder's responsibility.
Degree of protection	IP20, rear (according to EN 60529-1)
Enclosure material	Plastic
Built-in depth	25 mm
Mounting method	Flush mounting Flush mounting - Clearance: Width x Height x Depth ≥ 30 mm (1.18") Flush mounting - Inclination from vertical: ±45° (if using natural convection)
Model	Plastic enclosure and glass panel in plastic frame
Fitted with:	Alpha numeric keyboard Recipes Message indication Message system (incl. buffer and confirmation) SW interfaces Numeric keyboard Color display Printer output 1 x Ethernet 100base-TX/10base-T (built-in interface) 1 x USB host (built-in interface)
Shock resistance	15 g, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 11 ms, 18 Impacts
Vibration resistance	According to IEC/EN 60068-2-6
Operating temperature - max	50 °C
Operating temperature - min	0 °C
Equipment heat dissipation, current-dependent Pvid	5 W
Heat dissipation capacity Pdiss	0 W
Heat dissipation per pole, current-dependent Pvid	0 W
Static heat dissipation, non-current-dependent Pvs	5 W
Product category	XV-100
Degree of protection (front side)	IP65 NEMA 4X
Voltage type	DC
Power consumption	2.5 W (USB Slave to USB Host) 9.5 W total 5 W
Explosion safety category for gas	Explosion protection according to EN 13463_x Explosion protection according to EN 61241-1 Explosion protection according to EN 60079-0
Memory capacity	64,000 kByte
Memory	SD Memory Card Slot: SDA Specification 1.00 (External)
Relative humidity	10 - 90 % (non-condensing)
Environmental conditions	Condensation: prevent with appropriate measures
Protocol	EtherNet/IP Other bus systems MODBUS TCP/IP
Fuse type	Built-in fuse (not accessible)
Air pressure	795 - 1080 hPa (operation)
Battery runtime	Back-up of real-time clock: CR 2032, non-replaceable (soldered)
Number of HW-interfaces (industrial ethernet)	1
Number of HW-interfaces (other)	0
Number of HW-interfaces (parallel)	0
Number of HW-interfaces (RS-232)	0
Number of HW-interfaces (RS-422)	0
Number of HW-interfaces (RS-485)	0
Number of HW-interfaces (USB)	1
Number of HW-interfaces (wireless)	0
Number of interfaces (PROFINET)	0
Protection against polarity reversal	Yes
Processor	RISC CPU, 32 Bit, 400 MHz
Supply voltage at AC, 50 Hz - max	0 VAC
Supply voltage at AC, 50 Hz - min	0 VAC
Supply voltage at AC, 60 Hz - max	0 VAC
Supply voltage at AC, 60 Hz - min	0 VAC
Supply voltage at DC - max	28.8 VDC
Supply voltage at DC - min	20.4 VDC
Interfaces	Ethernet (100Base-TX/10Base-T) USB 2.0 host (not galvanically isolated)
Width of the front	136 mm
Resolution	320 x 240 pxQVGA
Display size	70 x 53 mm
Front height	100 mm
Number of buttons (programmable function)	0
Number of buttons with LED	0
Number of grey-scales/blue-scales of display	0
Conditions of acceptability	UL/CSA The provided Ethernet Connection is only allowed to connect to inhouse networks. The following end-product enclosures are required: Fire The unit must be supplied via a SELV source. The investigated Pollution Degree is: 2
Operating system	Windows CE 5.0 (license included)
Software	GALILEO, Visualization software, Engineering
Number of slots	1 (for SD-Card)
Display lighting	LED Dimmable via software
Display type	TFT Color display, TFT Standard front with standard membrane (fully enclosed)
Rated control supply voltage	24 V DC (UAUX, -20 %/+25 %)
Number of colors of the display	65536
RoHs conformity	Yes
Touch technology	Resistive touch Glass with film touch sensor
Number of HW-interfaces (serial TTY)	0
Number of online/runtime languages	100
Number of password levels	200
Number of pixels (horizontal)	320
Number of pixels (vertical)	240
Number of system buttons	1
Screen size (diagonal)	3.5 in
Rated operational voltage	24 V DC (power-supply - safety extra low voltage)
