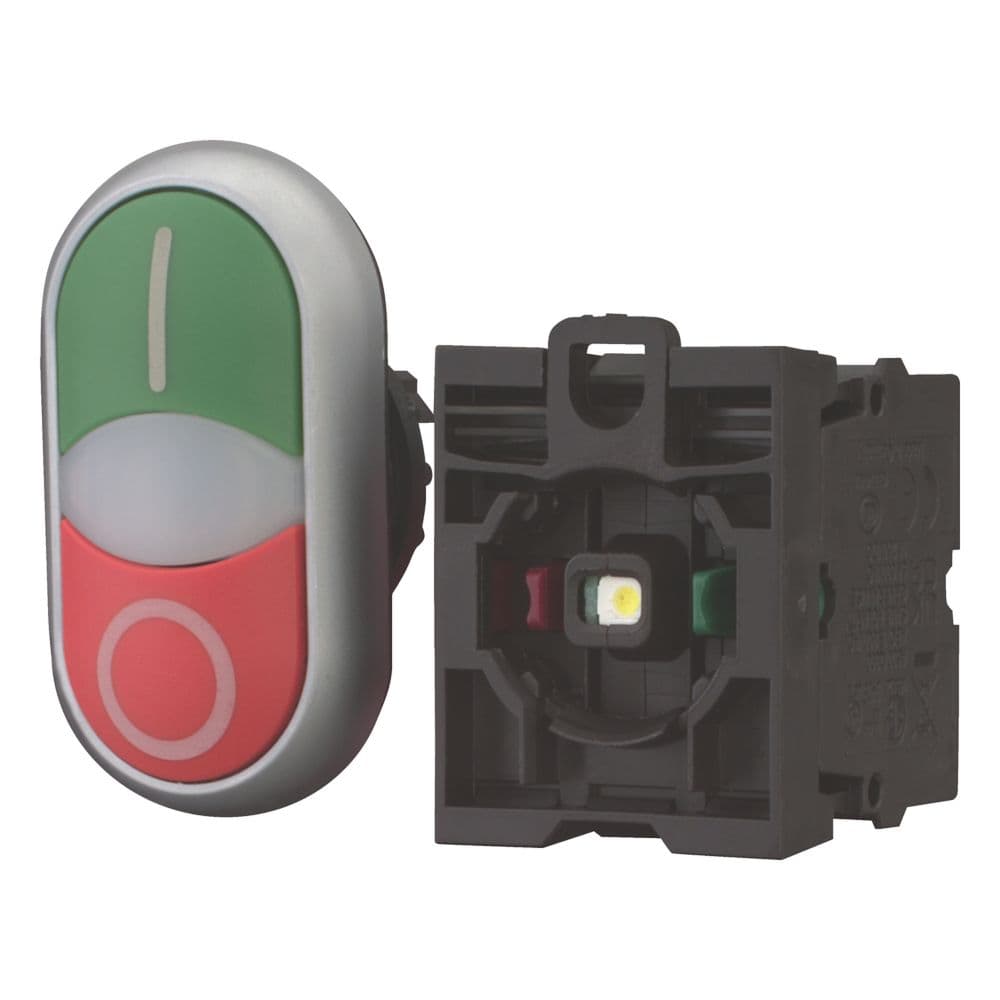

Eaton Moeller® series M22 double actuator pushbutton

Eaton

Eaton Moeller® series M22 double actuator pushbutton

رقم القطعة: 216509

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M22 double actuator pushbutton

المواصفات

Product NameEaton Moeller® series M22 double actuator pushbutton
Catalog Number216509
Model CodeM22-DDL-GR-X1/X0/K11/230-W
EAN4015082165093
Product Length/Depth30 mm
Product Height55 mm
Product Width30 mm
Product Weight0.015 kg
CertificationsCSA-C22.2 No. 94-91 CSA Class No.: 3211-03 CSA-C22.2 No. 14-05 IEC/EN 60947-5 UL File No.: E29184 UL CSA CSA File No.: 012528 IEC/EN 60947 CE UL 508 UL Category Control No.: NKCR VDE 0660 DNV GL LR
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.216509.html
Actuator functionSpring-return Momentary
Actuator colorGreen, red
FeaturesTransparent
Fitted with:Front ring LED element
Electric connection typeScrew connection
DesignNon-Flush Classical
Bezel colorChrome
Bezel materialPlastic
Lens typeRound
InscriptionInscribed
Number of command positions2
Actuating force5 N
Knob travel5.7 mm
Actuator travel and actuation force (DIN EN 60947-5-1)4.8 mm
Light colorWhite
