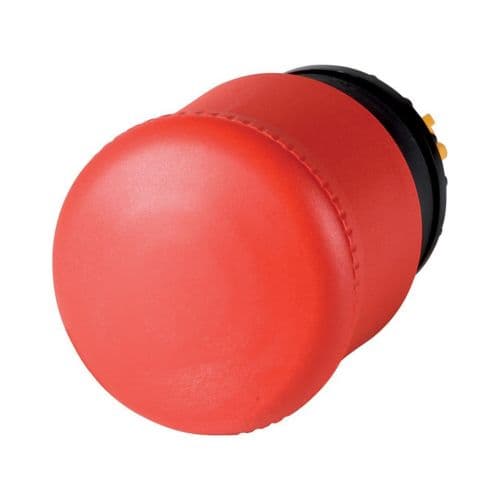

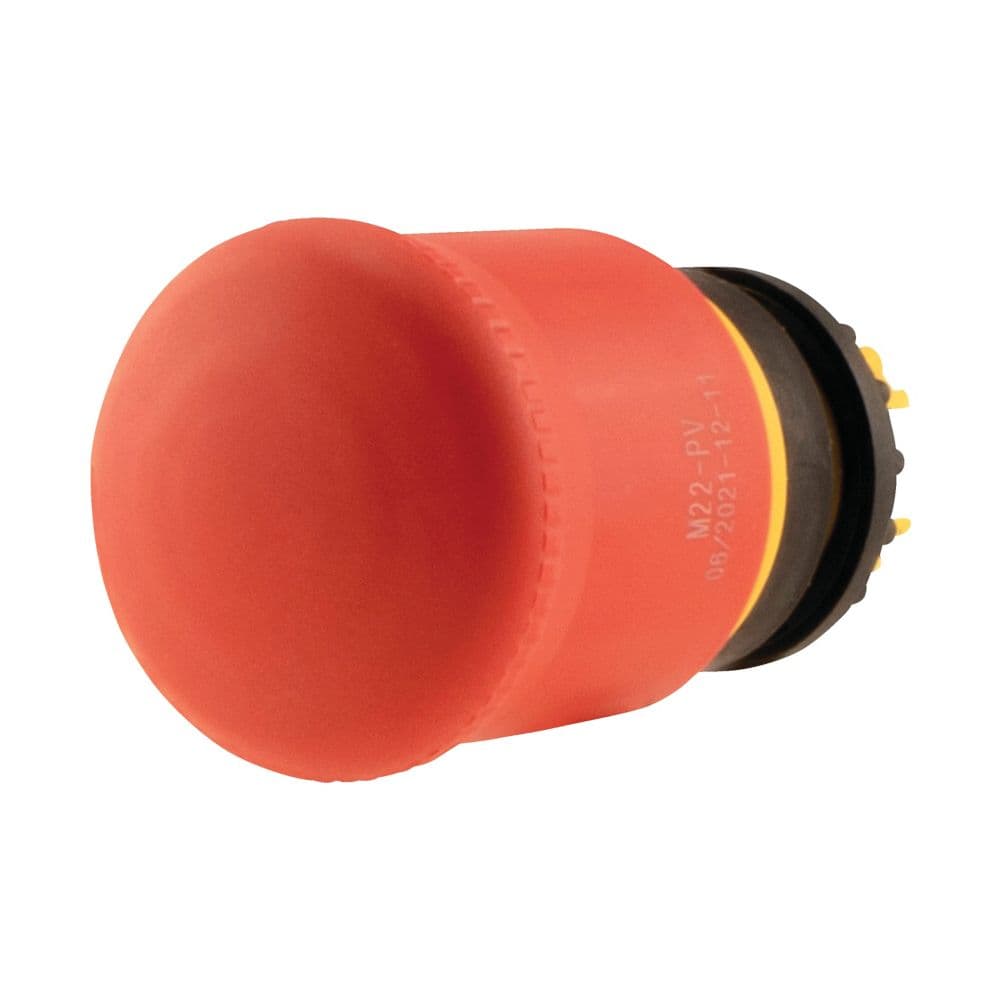

Eaton Moeller® series M22 emergency stop/emergency switching off pushbutton

Name: Eaton Moeller® series M22 emergency stop/emergency switching off pushbutton
Brand: Eaton
SKU: 216876

رقم القطعة: 216876

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M22 emergency stop/emergency switching off pushbutton

Product Name	Eaton Moeller® series M22 emergency stop/emergency switching off pushbutton
Catalog Number	216876
Model Code	M22-PV
EAN	4015082168766
Product Length/Depth	38 mm
Product Height	70 mm
Product Width	38 mm
Product Weight	0.039 kg
Compliances	CE Marked
Certifications	EN 60947-5 CSA Std. C22.2 No. 94-91 IEC 60947-5 UL 508 CSA Std. C22.2 No. 14-05 VDE UL CE CSA File No.: 012528 IEC/EN 60947-5 CSA IEC/EN 60947 UL File No.: E29184 CSA Class No.: 3211-03 CSA-C22.2 No. 14-05 CSA-C22.2 No. 94-91 VDE 0660 UL Category Control No.: NKCR DNV GL LR
Source URL	https://www.eaton.com/gb/en-gb/skuPage.216876.html
Catalog Notes	Max. number of contacts: four M22-(C)K01, …10 or two M22-(C)K02, …20, …11
Actuator function	Pull-to-release Switching function latching
Actuator color	Red
Color	Red
Design	Mushroom-shaped Classical
Actuating force	50 N
Actuator diameter	38 mm
Illumination	Non-illuminated
Unlocking method	Pull-release
