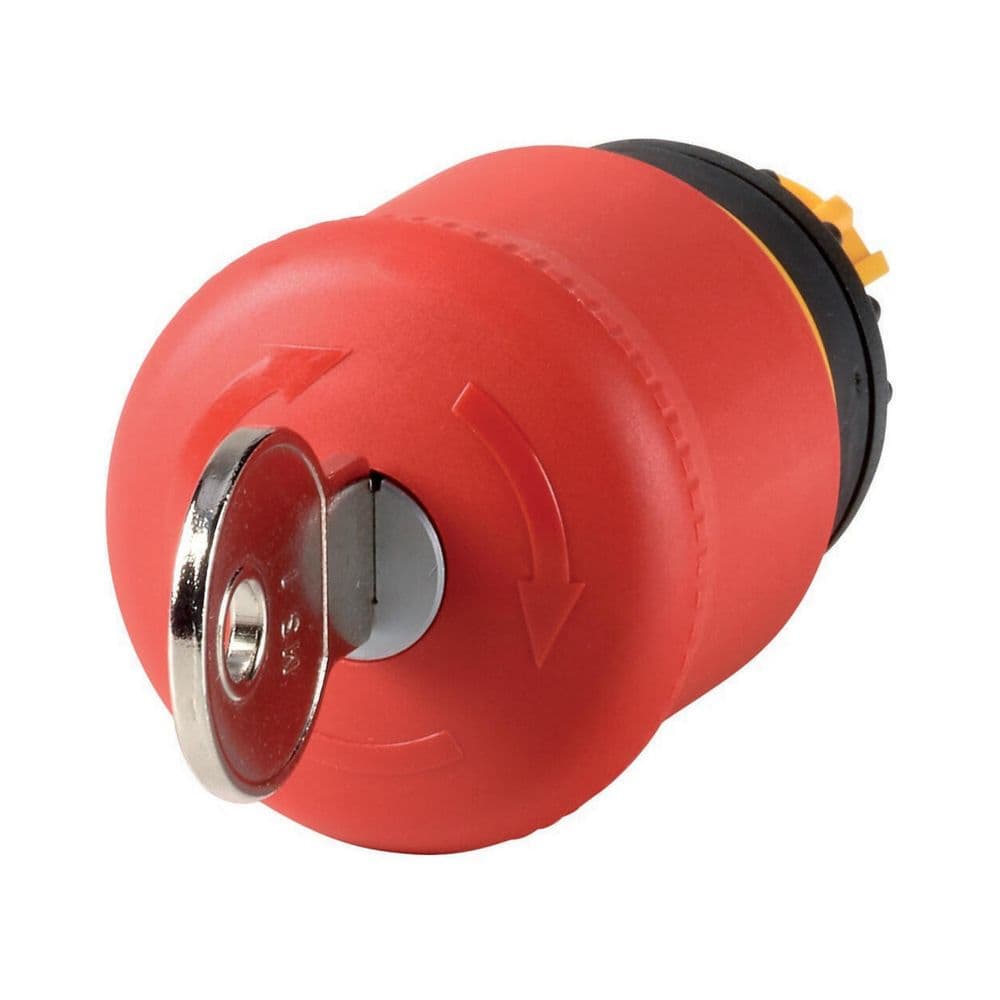

Eaton Moeller® series M22 emergency stop/emergency switching off pushbutton

Name: Eaton Moeller® series M22 emergency stop/emergency switching off pushbutton
Brand: Eaton
SKU: 216880

رقم القطعة: 216880

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M22 emergency stop/emergency switching off pushbutton

Product Name	Eaton Moeller® series M22 emergency stop/emergency switching off pushbutton
Catalog Number	216880
Model Code	M22-PVS-MS*
Product Length/Depth	93 mm
Product Height	38 mm
Product Width	38 mm
Product Weight	0.06 kg
Certifications	CSA File No.: 012528 CE UL Category Control No.: NKCR VDE 0660 CSA-C22.2 No. 94-91 CSA-C22.2 No. 14-05 CSA IEC/EN 60947 UL UL 508 IEC/EN 60947-5 UL File No.: E29184 CSA Class No.: 3211-03 DNV GL LR
Source URL	https://www.eaton.com/gb/en-gb/skuPage.216880.html
Catalog Notes	Max. number of contacts: four M22-(C)K01, …10 or two M22-(C)K02, …20, …11
Actuator function	Switching function latching Key-release
Actuator color	Red
Color	Red
Design	Mushroom-shaped Classical
Actuating force	50 N
Actuator diameter	38 mm
Illumination	Non-illuminated
Unlocking method	Key-release
