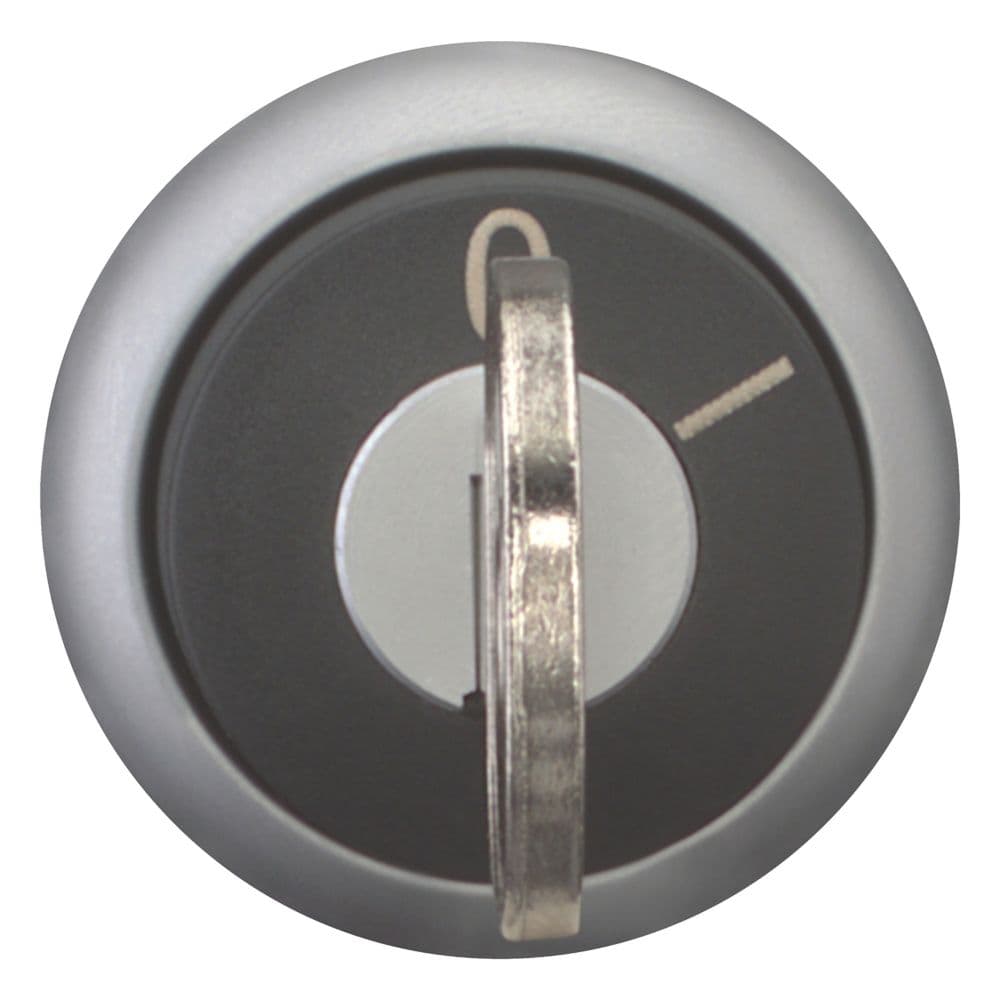

Eaton Moeller® series M22 key-operated actuator

Name: Eaton Moeller® series M22 key-operated actuator
Brand: Eaton
SKU: 216883

رقم القطعة: 216883

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M22 key-operated actuator

Functions	Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
Product Name	Eaton Moeller® series M22 key-operated actuator
Catalog Number	216883
Model Code	M22-WS-MS*
Product Length/Depth	70 mm
Product Height	30 mm
Product Width	30 mm
Product Weight	0.034 kg
Compliances	CE Marked
Certifications	CSA Std. C22.2 No. 94-91 IEC 60947-5 EN 60947-5 UL 508 CSA Std. C22.2 No. 14-05 VDE CSA-C22.2 No. 94-91 UL CSA IEC/EN 60947-5 VDE 0660 CSA File No.: 012528 IEC/EN 60947 UL File No.: E29184 CE CSA Class No.: 3211-03 CSA-C22.2 No. 14-05 UL Category Control No.: NKCR DNV GL LR
Source URL	https://www.eaton.com/gb/en-gb/skuPage.216883.html
Actuator function	Spring-return Key withdrawable in position 0 Momentary
Actuator type	Key
Number of switch positions	2
Actuator color	Black
Fitted with:	Front ring
Design	Key operated Classical
Bezel color	Titanium
Bezel material	Plastic
Indicator color	Other
Lens type	Round
Key code	Selectable
