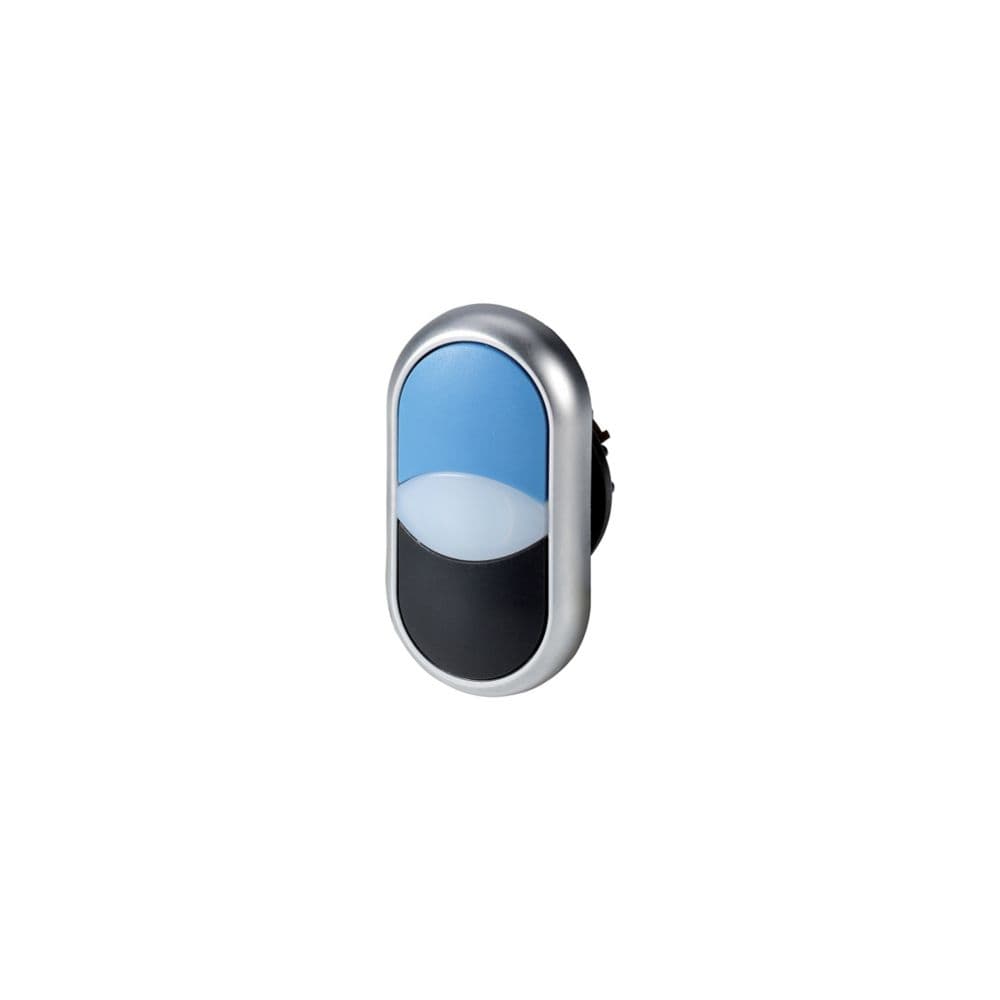

Eaton Moeller® series M22 double actuator pushbutton

Eaton

Eaton Moeller® series M22 double actuator pushbutton

رقم القطعة: 226770

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M22 double actuator pushbutton

المواصفات

Product NameEaton Moeller® series M22 double actuator pushbutton
Catalog Number226770
Model CodeM22-DDL-*-*-*
Product Length/Depth30 mm
Product Height55 mm
Product Width30 mm
Product Weight0.015 kg
CertificationsVDE 0660 CSA CSA-C22.2 No. 14-05 UL UL Category Control No.: NKCR CSA Class No.: 3211-03 CSA File No.: 012528 CSA-C22.2 No. 94-91 IEC/EN 60947 IEC/EN 60947-5 CE UL 508 UL File No.: E29184 DNV GL LR
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.226770.html
Catalog NotesNotes on customized inscription → Data sheet, additional product information (links)
Actuator functionMomentary Spring-return
Actuator colorOther
FeaturesLabelled
Fitted with:Front ring
Lens colorWhite
DesignNon-Flush Classical
Bezel colorTitanium
Bezel materialPlastic
Lens typeOval
InscriptionIndividual inscription possible
Number of command positions2
Actuating force5 N
