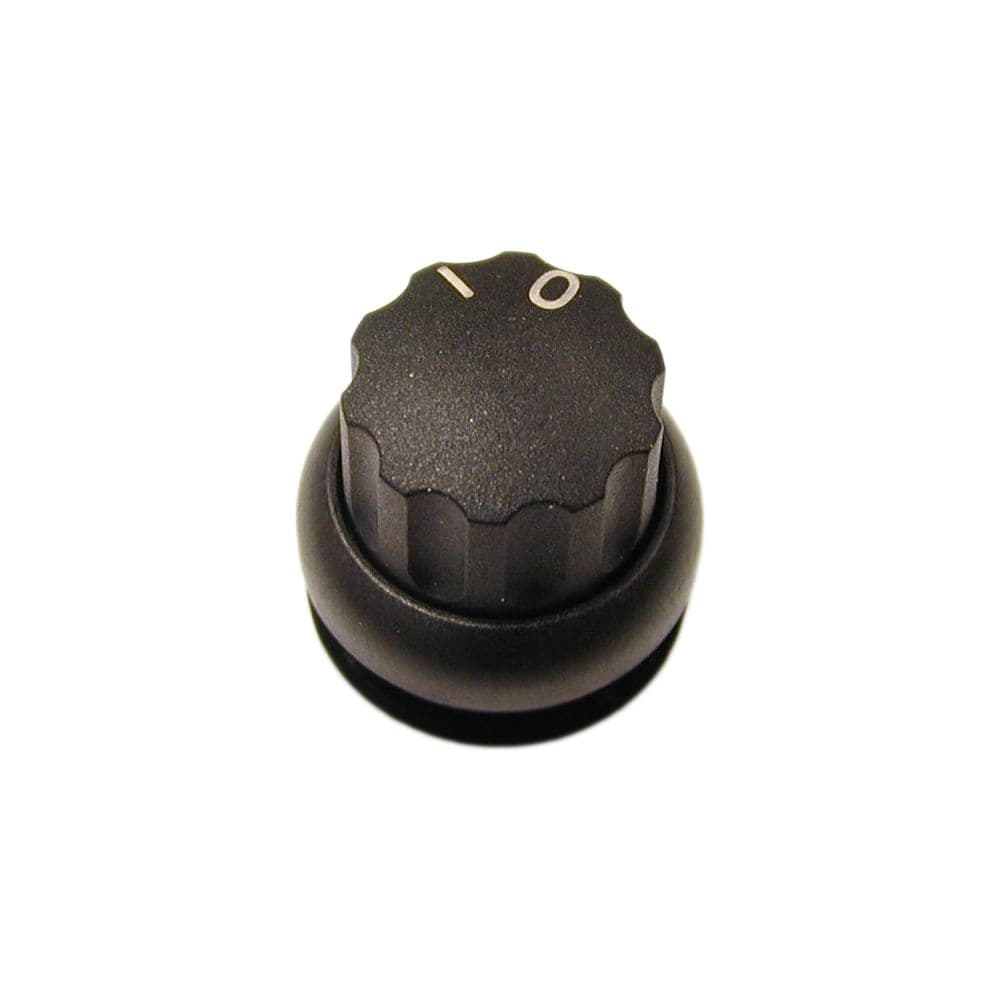

Eaton Moeller® series M22 selector switch

Name: Eaton Moeller® series M22 selector switch
Brand: Eaton
SKU: 226837

رقم القطعة: 226837

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M22 selector switch

Functions	Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
Product Name	Eaton Moeller® series M22 selector switch
Catalog Number	226837
Model Code	M22S-WR-*
Product Length/Depth	43 mm
Product Height	30 mm
Product Width	30 mm
Product Weight	0.013 kg
Certifications	CSA-C22.2 No. 14-05 UL VDE 0660 CSA Class No.: 3211-03 IEC/EN 60947 CSA File No.: 012528 UL File No.: E29184 IEC/EN 60947-5 UL Category Control No.: NKCR CSA-C22.2 No. 94-91 UL 508 CE CSA DNV GL LR
Source URL	https://www.eaton.com/gb/en-gb/skuPage.226837.html
Catalog Notes	Notes on customized inscription → Data sheet, additional product information (links)
Actuator function	Maintained Switching function latching
Actuator type	Turn button
Number of switch positions	2
Actuator color	Black
Fitted with:	Front ring
Design	With rotary head Classical
Bezel color	Black
Bezel material	Plastic
Indicator color	Other
Lens type	Round
Inscription	Individual inscription possible
