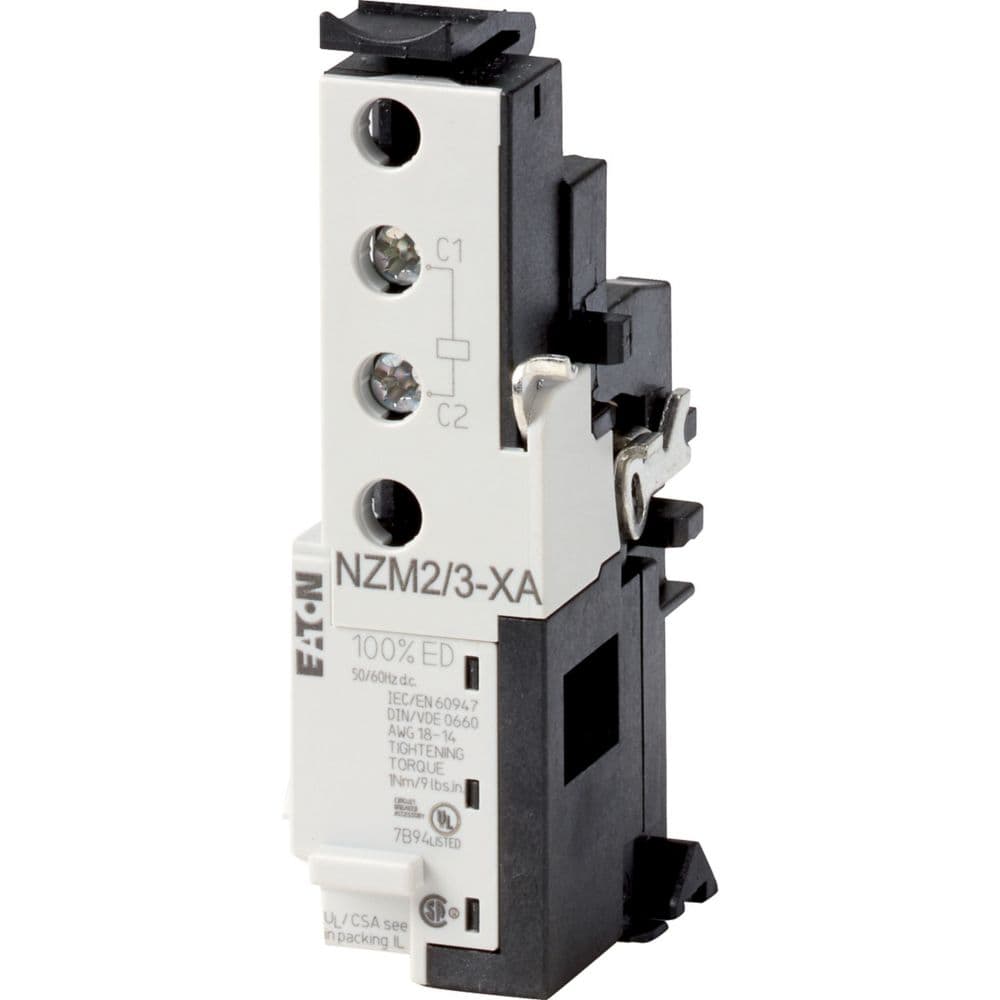

Eaton Moeller series NZM Shunt release

Eaton

Eaton Moeller series NZM Shunt release

رقم القطعة: 259754

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM Shunt release

المواصفات

Special featuresSwitches are tripped by a voltage pulse or by the application of uninterrupted voltage.If the shunt trip is live, contact with the circuit breaker’s primary contacts is prevented when switched on.Shunt releases cannot be installed simultaneously with NZM...-XHIV... early-make auxiliary contact or NZM...-XU... undervoltage release.
Product NameEaton Moeller series NZM Shunt release
Catalog Number259754
Model CodeNZM2/3-XA24AC/DC
EAN4015082597542
Product Length/Depth42 mm
Product Height90 mm
Product Width30 mm
Product Weight0.094 kg
CompliancesUL/CSA IEC RoHS conform
CertificationsCE marking CSA certified UL listed IEC60947 UL (Category Control Number DIHS) CSA (Class No. 1437-01) UL (File No. E140305) CSA (File No. 22086) CSA-C22.2 No. 5-09 UL489
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.259754.html
Suitable forOff-load switch
Used withNZM2(-4), N(S)2(-4) NZM3(-4), N(S)3(-4)
TypeAccessoryShunt release
FrameNZM2/3
