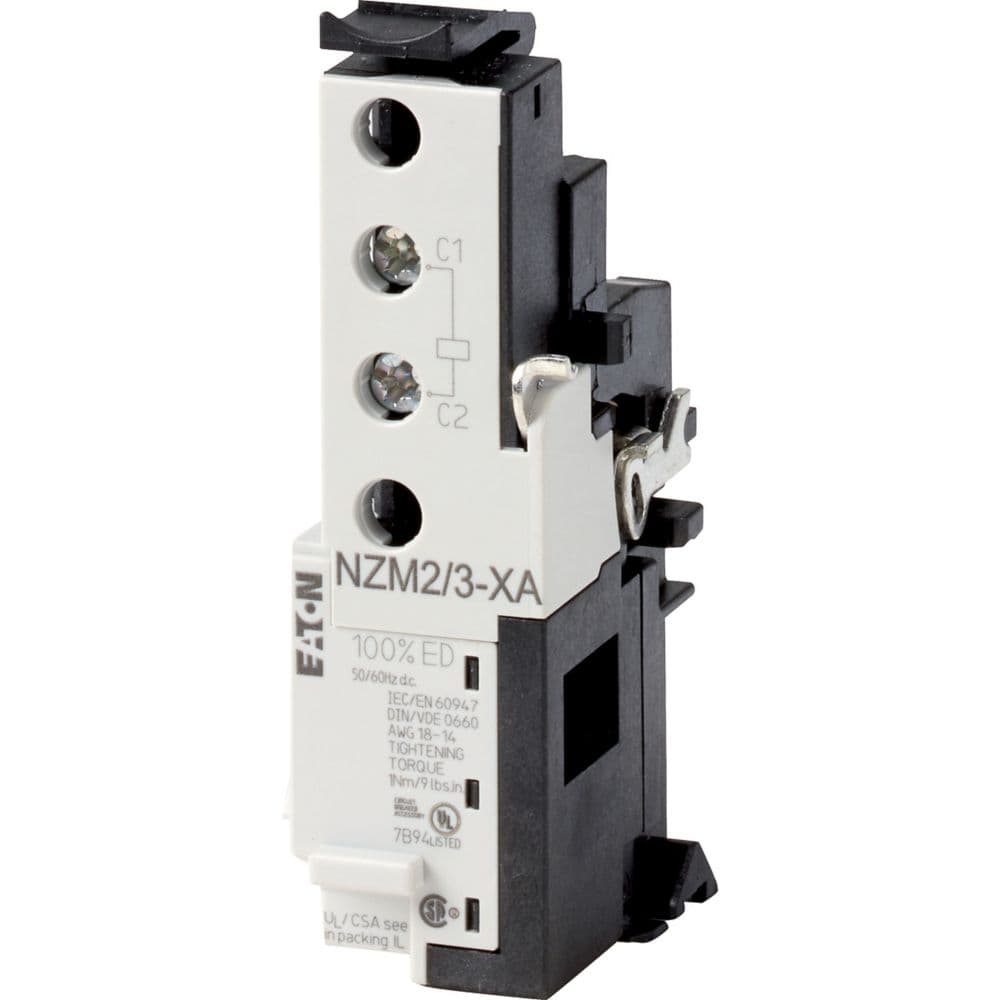

Eaton Moeller series NZM Shunt release

Name: Eaton Moeller series NZM Shunt release
Brand: Eaton
SKU: 259758

رقم القطعة: 259758

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM Shunt release

Special features	Switches are tripped by a voltage pulse or by the application of uninterrupted voltage.If the shunt trip is live, contact with the circuit breaker’s primary contacts is prevented when switched on.Shunt releases cannot be installed simultaneously with NZM...-XHIV... early-make auxiliary contact or NZM...-XU... undervoltage release.
Product Name	Eaton Moeller series NZM Shunt release
Catalog Number	259758
Model Code	NZM2/3-XA60AC/DC
EAN	4015082597580
Product Length/Depth	42 mm
Product Height	90 mm
Product Width	30 mm
Product Weight	0.064 kg
Compliances	IEC UL/CSA RoHS conform
Certifications	UL (File No. E140305) CSA (File No. 22086) UL (Category Control Number DIHS) CSA (Class No. 1437-01) IEC60947 CSA certified CSA-C22.2 No. 5-09 UL489 CE marking UL listed
Source URL	https://www.eaton.com/gb/en-gb/skuPage.259758.html
Suitable for	Off-load switch
Used with	NZM3(-4), N3(-4) NZM2(-4), N2(-4)
Type	AccessoryShunt release
Frame	NZM2/3
