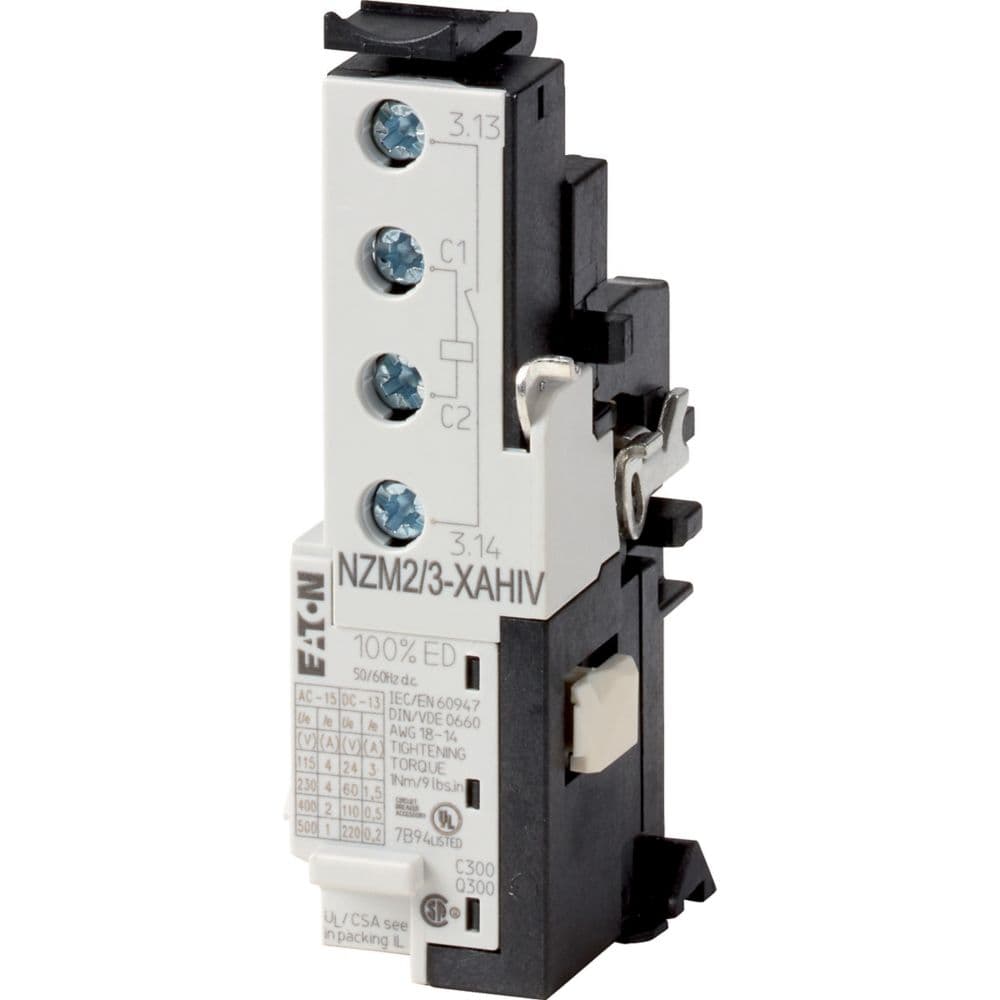

Eaton Moeller series NZM Shunt release

Eaton

Eaton Moeller series NZM Shunt release

رقم القطعة: 259812

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM Shunt release

المواصفات

Special featuresCannot be used in conjunction with NZM...-XR... remote operator.If the shunt trip is live, contact with the circuit breaker’s primary contacts is prevented when switched on.Early make of auxiliary contact on switching on and off (manual operation): approx. 20 ms.Shunt releases cannot be installed simultaneously with NZM...-XHIV... early-make auxiliary contact or NZM...-XU... undervoltage release.
Product NameEaton Moeller series NZM Shunt release
Catalog Number259812
Model CodeNZM2/3-XAHIV48AC/DC
EAN4015082598129
Product Length/Depth42 mm
Product Height90 mm
Product Width30 mm
Product Weight0.064 kg
CompliancesIEC UL/CSA RoHS conform
CertificationsCSA (Class No. 1437-01) UL (Category Control Number DIHS) CSA certified UL489 IEC60947 CSA (File No. 22086) UL listed UL (File No. E140305) CSA-C22.2 No. 5-09 CE marking
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.259812.html
Suitable forOff-load switch
Used withNZM3(-4), N(S)3(-4) NZM2(-4), N(S)2(-4)
TypeAccessoryShunt release
Fitted with:Early-make auxiliary contact
FrameNZM2/3
