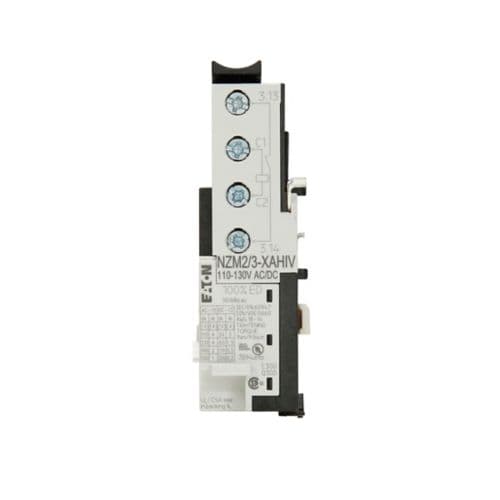

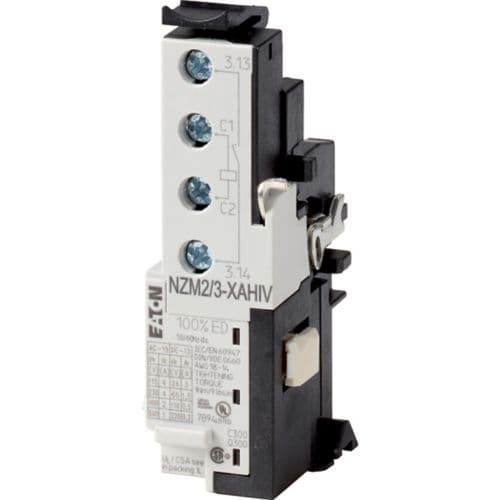

Eaton Moeller series NZM Shunt release

Eaton

Eaton Moeller series NZM Shunt release

رقم القطعة: 259818

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM Shunt release

المواصفات

Special featuresCannot be used in conjunction with NZM...-XR... remote operator.If the shunt trip is live, contact with the circuit breaker’s primary contacts is prevented when switched on.Early make of auxiliary contact on switching on and off (manual operation): approx. 20 ms.Shunt releases cannot be installed simultaneously with NZM...-XHIV... early-make auxiliary contact or NZM...-XU... undervoltage release.
Product NameEaton Moeller series NZM Shunt release
Catalog Number259818
Model CodeNZM2/3-XAHIV208-250AC/DC
EAN4015082598181
Product Length/Depth42 mm
Product Height90 mm
Product Width30 mm
Product Weight0.099 kg
CompliancesUL/CSA IEC RoHS conform
CertificationsUL (Category Control Number DIHS) UL489 UL (File No. E140305) CSA-C22.2 No. 5-09 CSA certified CSA (Class No. 1437-01) CSA (File No. 22086) CE marking UL listed IEC60947
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.259818.html
Suitable forOff-load switch
Used withNZM2(-4), N(S)2(-4) NZM3(-4), N(S)3(-4)
TypeAccessoryShunt release
Fitted with:Early-make auxiliary contact
FrameNZM2/3
