Eaton Moeller series NZM operating element

Eaton

Eaton Moeller series NZM operating element

رقم القطعة: 260166

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM operating element

المواصفات

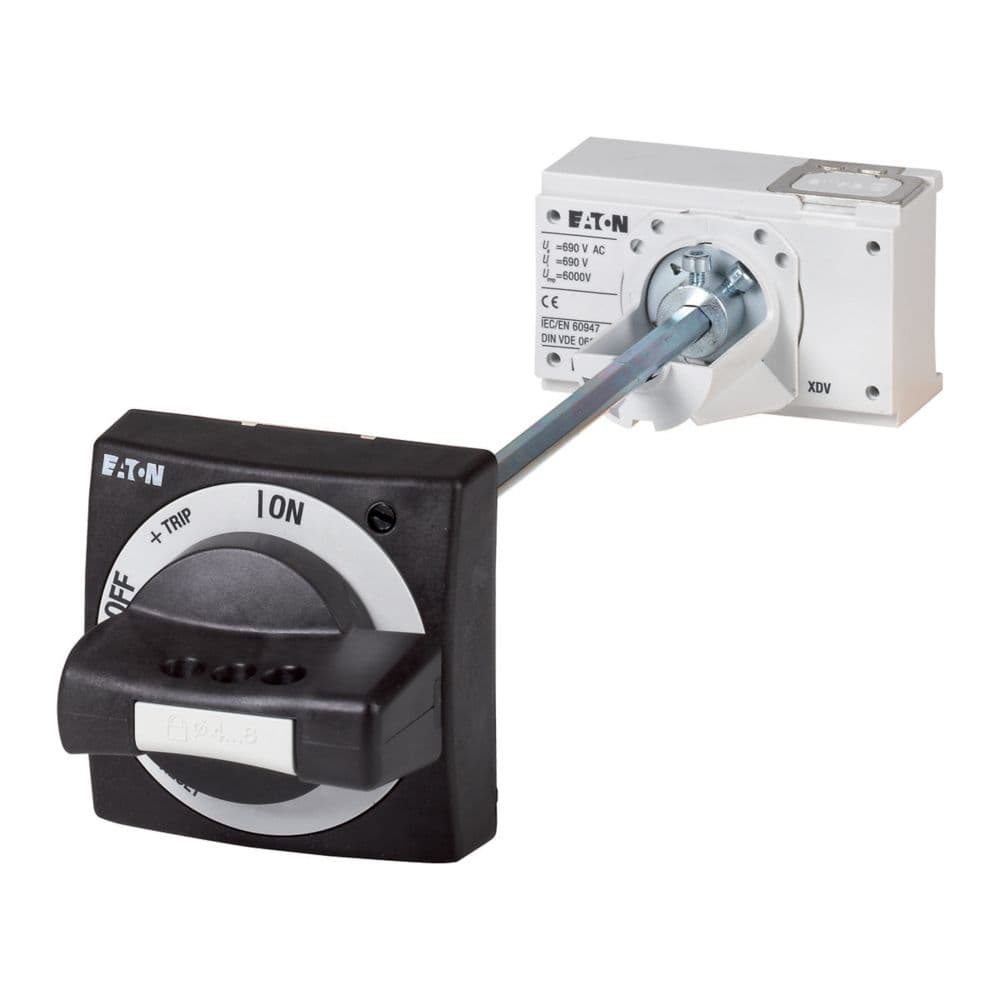

Special featuresDoor coupling rotary handle for operating the switch through a closed control panel doorExternal warning plate/designation label can be clipped on.Complete including rotary drive and coupling partsExtension shaft additionally required.
Product NameEaton Moeller series NZM operating element
Catalog Number260166
Model CodeNZM1-XTVD
EAN4015082601669
Product Length/Depth75 mm
Product Height190 mm
Product Width90 mm
Product Weight0.595 kg
CompliancesIEC UL/CSA RoHS conform
CertificationsUL489 CE marking UL (Category Control Number DIHS) IEC60947 CSA certified CSA (File No. 22086) CSA-C22.2 No. 5-09 UL (File No. E140305) CSA (Class No. 1437-01) UL listed
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.260166.html
Suitable forSwitch disconnector Power circuit breaker
Used withNZM1(-4), PN1(-4), N(S)1(-4)
FeaturesStandard: black / gray Lockable
TypeAccessoryDoor coupling rotary handle
Fitted with:Padlock
FrameNZM1
