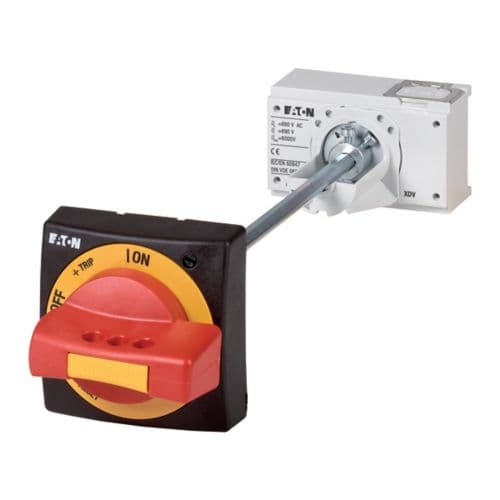

Eaton Moeller series NZM operating element

Eaton

Eaton Moeller series NZM operating element

رقم القطعة: 260176

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM operating element

المواصفات

Special featuresDoor coupling rotary handle for operating the switch through a closed control panel doorExternal warning plate/designation label can be clipped on.Complete including rotary drive and coupling partsExtension shaft additionally required.
Product NameEaton Moeller series NZM operating element
Catalog Number260176
Model CodeNZM3-XTVDV
EAN4015082601768
Product Length/Depth75 mm
Product Height190 mm
Product Width90 mm
Product Weight1.446 kg
CompliancesUL/CSA IEC RoHS conform
CertificationsIEC60947 UL listed CSA certified CSA (File No. 22086) UL (Category Control Number DIHS) CSA (Class No. 1437-01) UL489 UL (File No. E140305) CE marking CSA-C22.2 No. 5-09
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.260176.html
Suitable forSwitch disconnector Power circuit breaker
Used withNZM3(-4), PN3(-4), N(S)3(-4)
FeaturesStandard: black / gray Lockable
TypeDoor coupling rotary handle
Fitted with:Padlock
FrameNZM3
