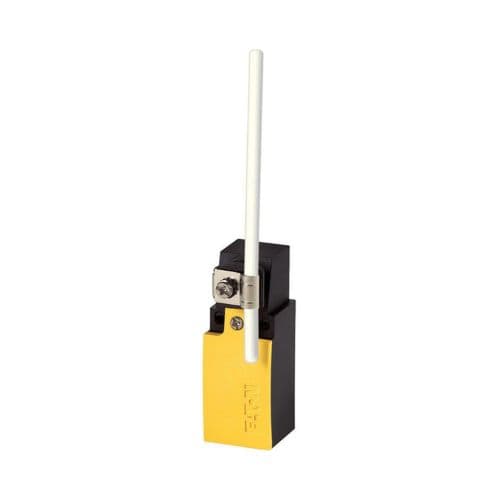

Eaton Moeller® series LS Position switch

Name: Eaton Moeller® series LS Position switch
Brand: Eaton
SKU: 266104

رقم القطعة: 266104

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series LS Position switch

Product Name	Eaton Moeller® series LS Position switch
Catalog Number	266104
Model Code	LS-11S/S
EAN	4015082661045
Product Length/Depth	33.5 mm
Product Height	180 mm
Product Width	31 mm
Product Weight	0.067 kg
Certifications	CSA-C22.2 No. 14 CSA File No.: 012528 UL File No.: E29184 UL 508 CSA IEC/EN 60947 UL CE UL Category Control No.: NKCR CSA Class No.: 3211-03 IEC/EN 60947-5
Source URL	https://www.eaton.com/gb/en-gb/skuPage.266104.html
Catalog Notes	The operating head can be rotated 90° to enable adaptation to the specified approach directionUsing the product in areas exposed to ozone and UV radiation or in sub-zero temperatures in unprotected outdoor environments (e.g. altitudes above 1,000 m, unprotected sunlight) may reduce the degree of protection. The customer / user must validate the overall application accordingly. If applicable, the use of the LS-…-CC (Cold Climate) variants should be considered.
Actuator type	Spring-rod
Actuating force at beginning/end of stroke	1.0 N/8.0 N
Actuating torque of rotary drives	0.2 Nm
Actuator length	126 mm
