Eaton Moeller® series LS Position switch

Eaton

Eaton Moeller® series LS Position switch

رقم القطعة: 266108

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

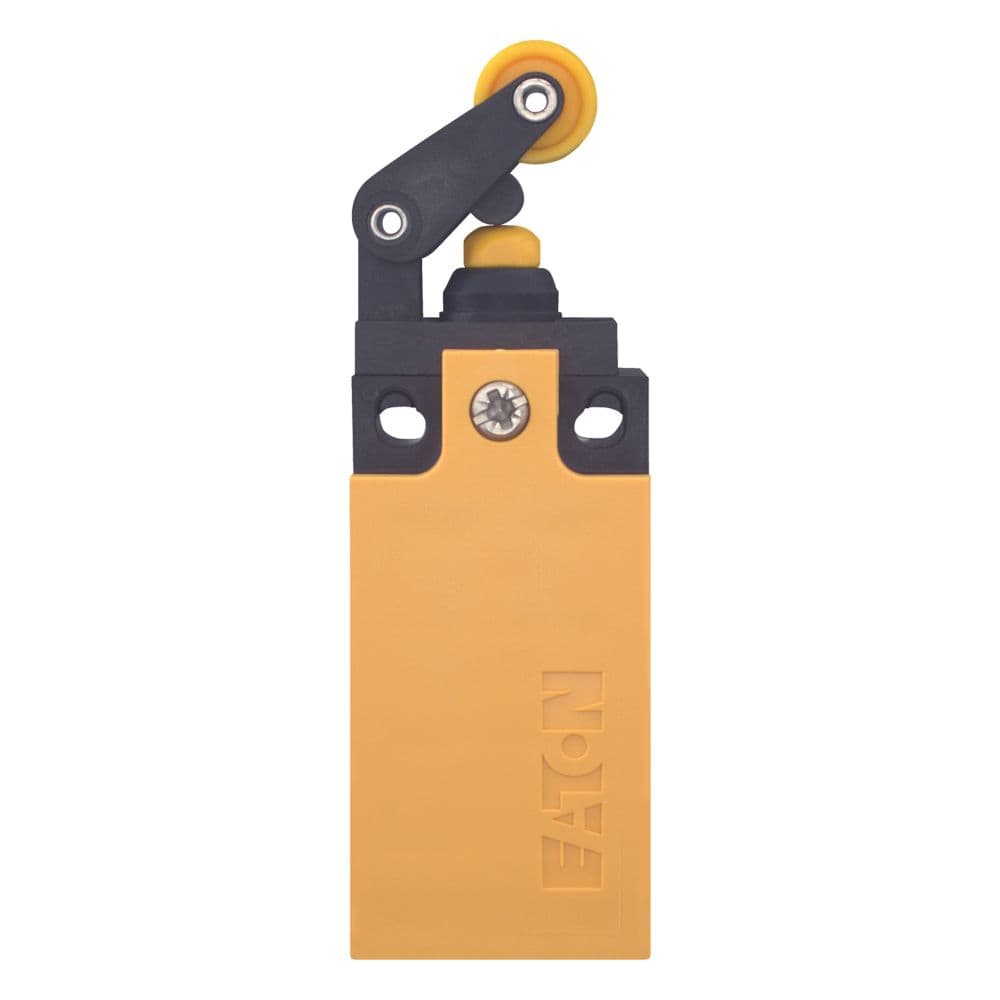

Eaton Moeller® series LS Position switch

المواصفات

Product NameEaton Moeller® series LS Position switch
Catalog Number266108
Model CodeLS-02/L
EAN4015082661083
Product Length/Depth33.5 mm
Product Height96 mm
Product Width31 mm
Product Weight0.055 kg
CertificationsUL 508 UL File No.: E29184 CE UL CSA File No.: 012528 CSA-C22.2 No. 14 IEC/EN 60947 CSA IEC/EN 60947-5 UL Category Control No.: NKCR CSA Class No.: 3211-03
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.266108.html
Catalog NotesThe operating head can be rotated 90° to enable adaptation to the specified approach directionUsing the product in areas exposed to ozone and UV radiation or in sub-zero temperatures in unprotected outdoor environments (e.g. altitudes above 1,000 m, unprotected sunlight) may reduce the degree of protection. The customer / user must validate the overall application accordingly. If applicable, the use of the LS-…-CC (Cold Climate) variants should be considered.
Actuator typeSquare roller lever
Actuating force at beginning/end of stroke1.0 N/8.0 N
Actuating torque of rotary drives0.2 Nm
Operating speedFor angle of actuation α = 30°/45° Max. 1 m/s (with DIN cam, mechanical actuation)
