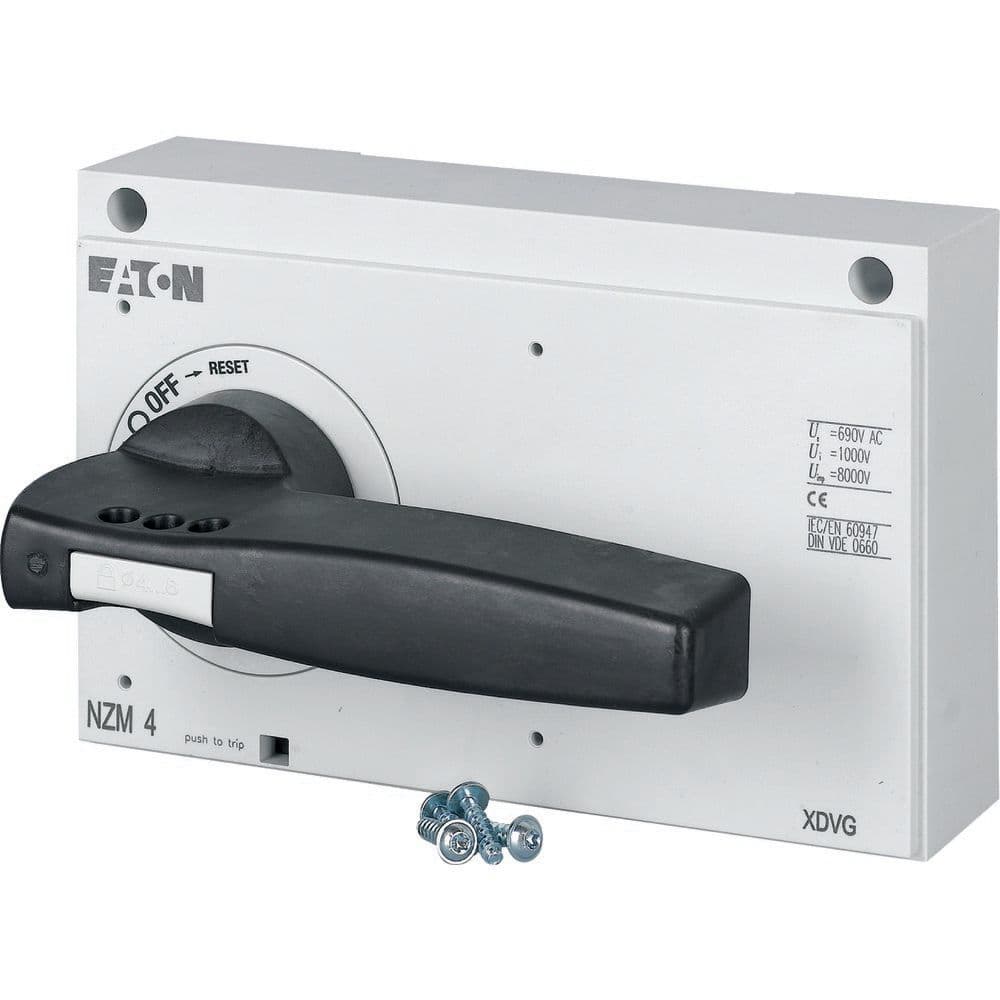

Eaton Moeller series NZM operating element

Eaton

Eaton Moeller series NZM operating element

رقم القطعة: 266608

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM operating element

المواصفات

Special featuresComplete with rotary driveCannot be combined with insulating surroundMODAN handle position detection by wire release can be retrofittedMakes it possible to operate the switch with a rotational movement and provides locking facilities
Product NameEaton Moeller series NZM operating element
Catalog Number266608
Model CodeNZM4-XDV
EAN4015082666088
Product Length/Depth150 mm
Product Height80 mm
Product Width210 mm
Product Weight1.314 kg
CompliancesIEC UL/CSA RoHS conform
CertificationsUL listed CSA (Class No. 1437-01) UL (File No. E140305) CSA certified CSA (File No. 22086) IEC60947 UL489 CSA-C22.2 No. 5-09 UL (Category Control Number DIHS) CE marking
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.266608.html
Suitable forSwitch disconnector Power circuit breaker
Used withNZM4(-4), N(S)4(-4)
FeaturesLockable Standard: black / gray
TypeRotary handle on circuit-breaker
Fitted with:Padlock Extension shaft
FrameNZM4
