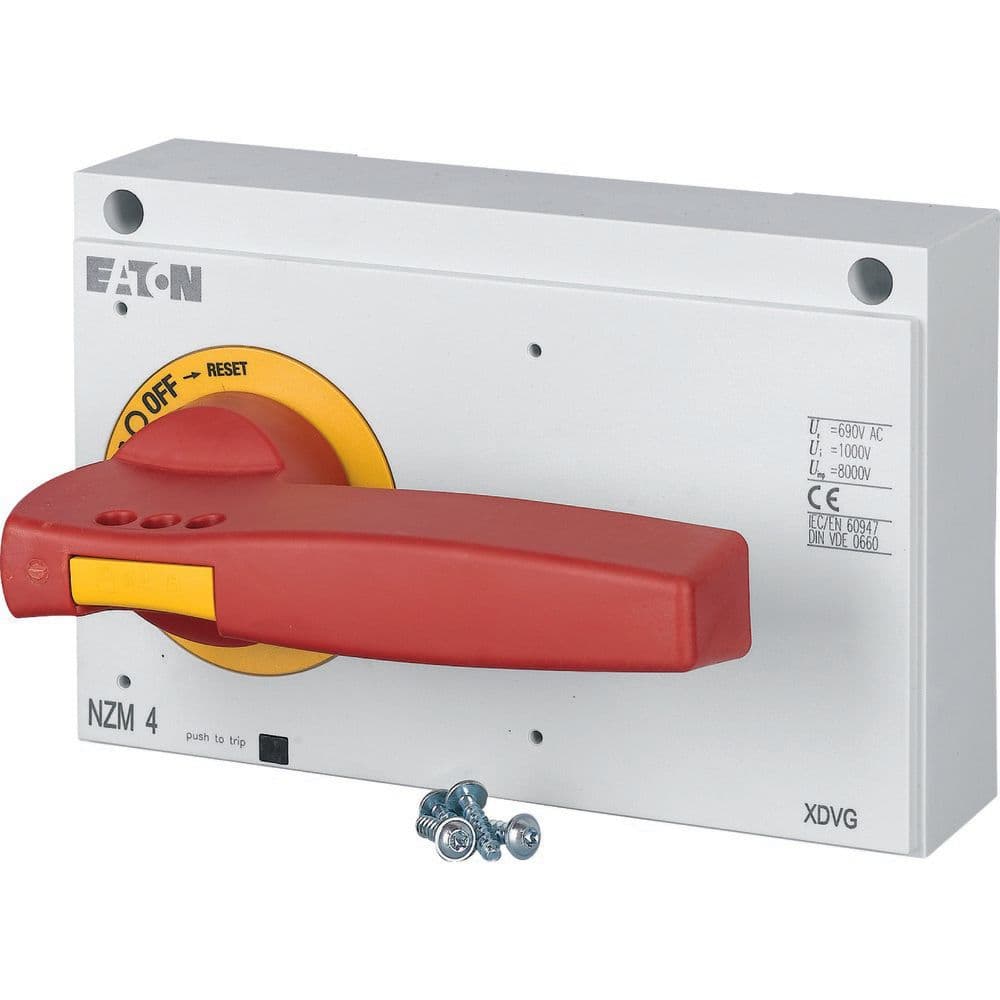

Eaton Moeller series NZM operating element

Eaton

Eaton Moeller series NZM operating element

رقم القطعة: 266610

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM operating element

المواصفات

Special featuresComplete with rotary driveCannot be combined with insulating surroundMODAN handle position detection by wire release can be retrofittedMakes it possible to operate the switch with a rotational movement and provides locking facilities
Product NameEaton Moeller series NZM operating element
Catalog Number266610
Model CodeNZM4-XDVR
EAN4015082666101
Product Length/Depth150 mm
Product Height80 mm
Product Width210 mm
Product Weight1.29 kg
CompliancesIEC UL/CSA RoHS conform
CertificationsUL (File No. E140305) UL (Category Control Number DIHS) CSA-C22.2 No. 5-09 CSA certified UL489 CSA (File No. 22086) IEC60947 CE marking UL listed CSA (Class No. 1437-01)
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.266610.html
Suitable forPower circuit breaker Emergency stop Switch disconnector
Used withNZM4(-4), N(S)4(-4)
FeaturesRed-yellow for emergency switching off Lockable
TypeRotary handle on circuit-breaker
Fitted with:Padlock Extension shaft
FrameNZM4
