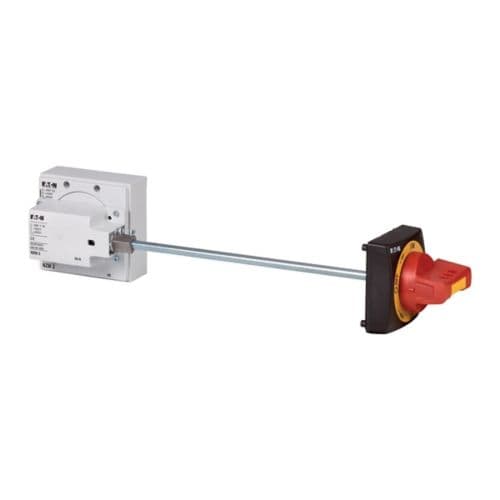

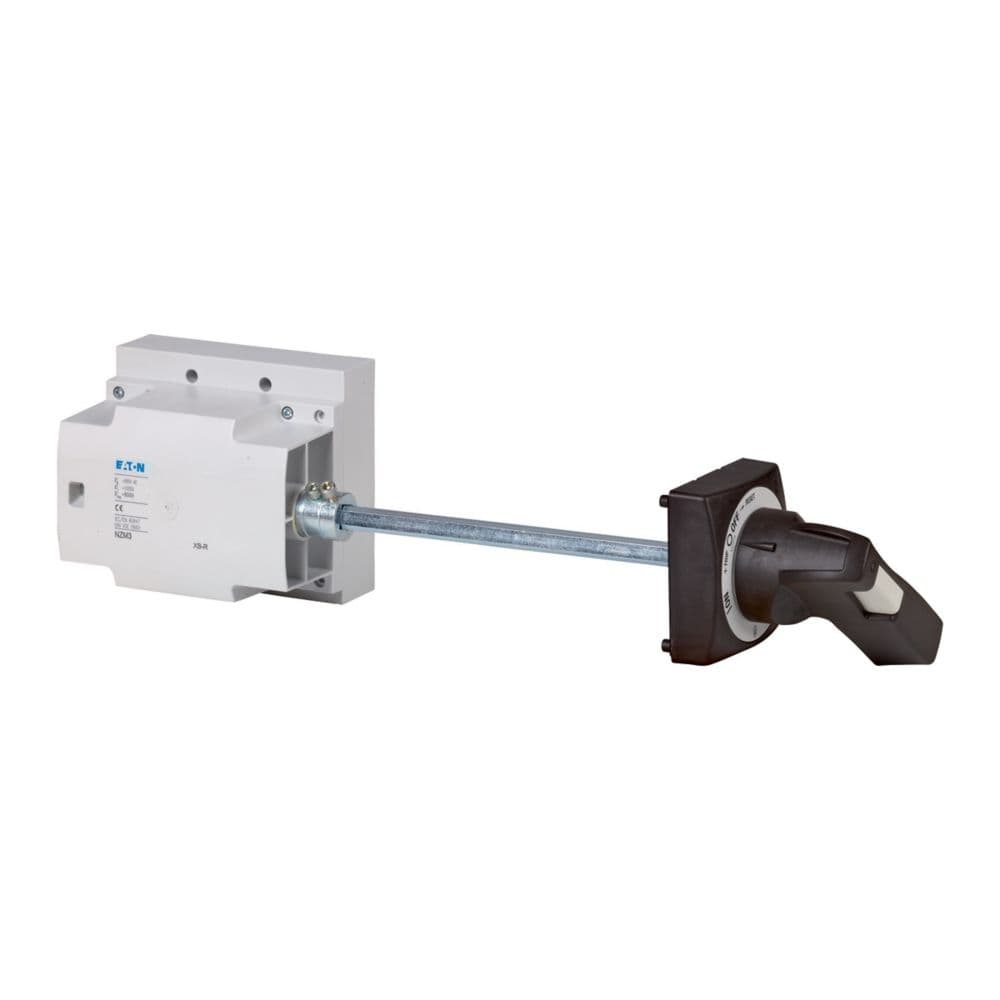

Eaton Moeller series NZM operating element

Eaton

Eaton Moeller series NZM operating element

رقم القطعة: 266646

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM operating element

المواصفات

Special featuresExternal warning plate/designation label can be clipped on.For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger.Kit for use as a main switch
Product NameEaton Moeller series NZM operating element
Catalog Number266646
Model CodeNZM3-XS-R
EAN4015082666460
Product Length/Depth240 mm
Product Height120 mm
Product Width150 mm
Product Weight2.24 kg
CompliancesIEC UL/CSA RoHS conform
CertificationsUL (Category Control Number DIHS) CSA (File No. 22086) IEC60947 CSA-C22.2 No. 5-09 CSA (Class No. 1437-01) UL489 UL (File No. E140305) CE marking CSA certified UL listed
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.266646.html
Suitable forSwitch disconnector Power circuit breaker
Used withN(S)3(-4) NZM3(-4) PN3(-4)
FeaturesSwitch mounting on mounting plate Standard: black / gray Lockable Actuation of the switch on the control panel side wall
TypeMain switch assembly kit for side panel mounting
Fitted with:Black and yellow lightning symbol External warning plate/marking plate in German/English NZM...-XV4 extension shaft Door coupling rotary handle Padlock
FrameNZM3
