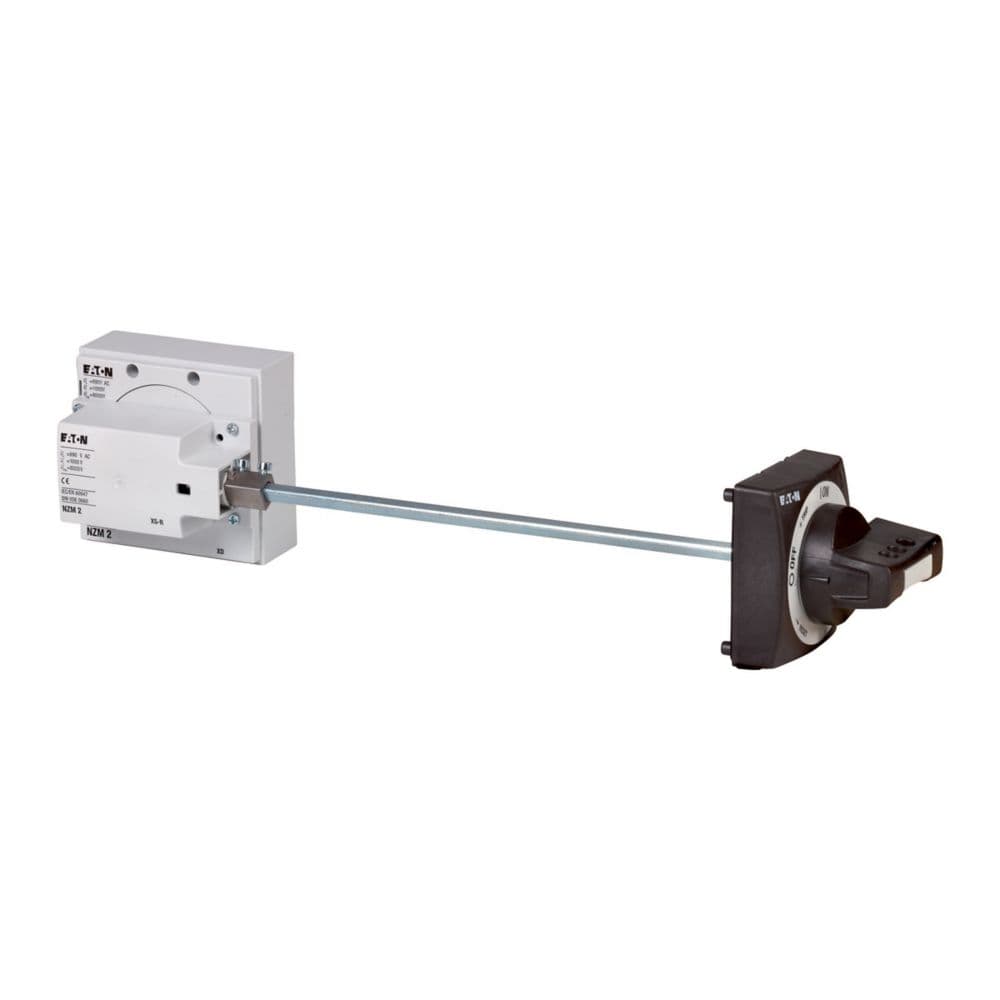

Eaton Moeller series NZM operating element

Eaton

Eaton Moeller series NZM operating element

رقم القطعة: 266642

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM operating element

المواصفات

Special featuresExternal warning plate/designation label can be clipped on.For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger.Kit for use as a main switch
Product NameEaton Moeller series NZM operating element
Catalog Number266642
Model CodeNZM2-XS-L
EAN4015082666422
Product Length/Depth190 mm
Product Height110 mm
Product Width120 mm
Product Weight0.989 kg
CompliancesIEC UL/CSA RoHS conform
CertificationsUL (File No. E140305) CSA certified UL (Category Control Number DIHS) CSA-C22.2 No. 5-09 UL489 IEC60947 CSA (Class No. 1437-01) CSA (File No. 22086) CE marking UL listed
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.266642.html
Suitable forPower circuit breaker Switch disconnector
Used withN(S)2(-4) PN2(-4) NZM2(-4)
FeaturesLockable Standard: black / gray Actuation of the switch on the control panel side wall Switch mounting on mounting plate
TypeAccessoryMain switch assembly kit for side panel mounting
Fitted with:Black and yellow lightning symbol Extension shaft External warning plate/marking plate in German/English Door coupling rotary handle NZM...-XV4 extension shaft Padlock
FrameNZM2
