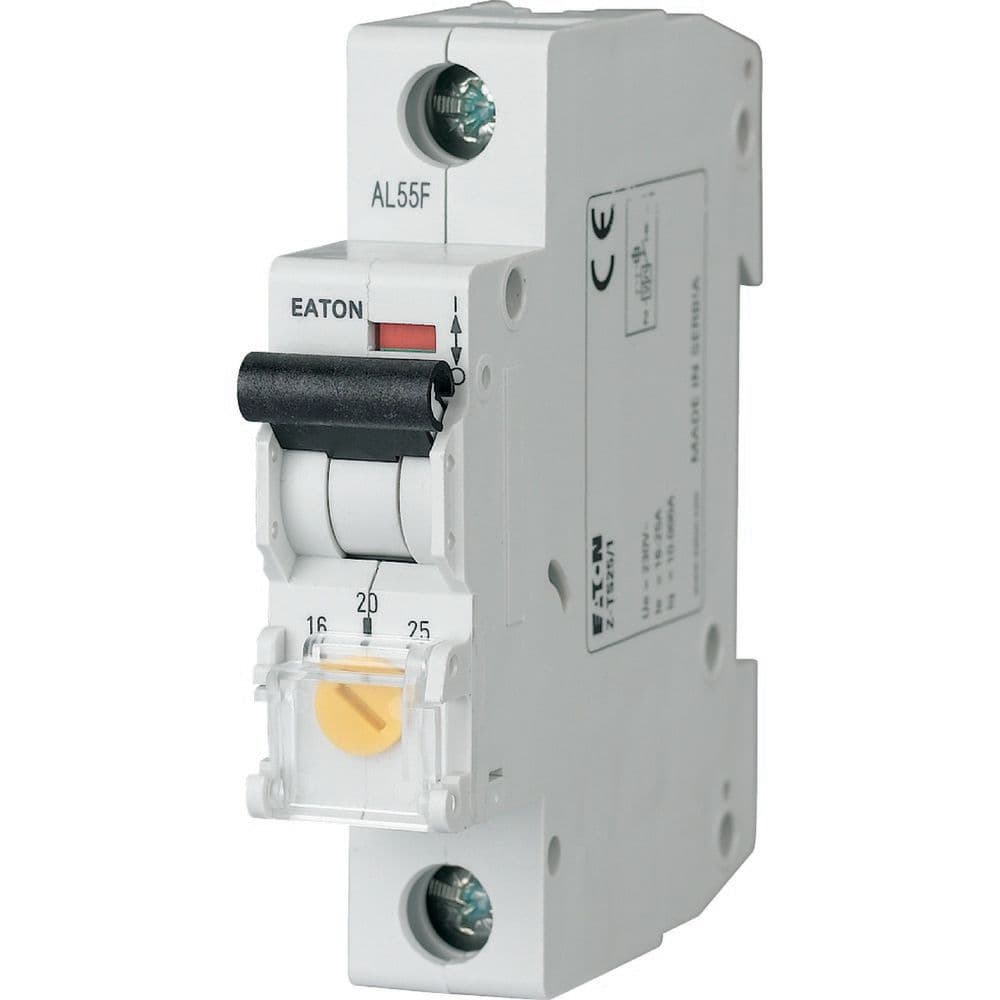

Eaton Distribution parts

Eaton

Eaton Distribution parts

رقم القطعة: 266850

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Distribution parts

المواصفات

Product NameEaton Distribution parts
Catalog Number266850
Model CodeZ-TS20/1
EAN4015082668501
Product Length/Depth80 mm
Product Height75 mm
Product Width18 mm
Product Weight0.122 kg
CompliancesRoHS conform
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.266850.html
Actuator typeRocker lever
Degree of protectionIP20
Fitted with:Thermal protection
Number of polesSingle-pole
Electrical connection type of main circuitScrew connection
Power loss3.3 W
Device constructionComplete device in housing
Rated operating voltage (Ue) - max400 V
Rated operating voltage (Ue) - min400 V
Switch off techniqueMagnetic
Adjustment range short-term delayed short-circuit release - min13 A
Adjustment range undelayed short-circuit release - max20 A
Adjustment range undelayed short-circuit release - min13 A
Overload release current setting - max20 A
Overload release current setting - min13 A
