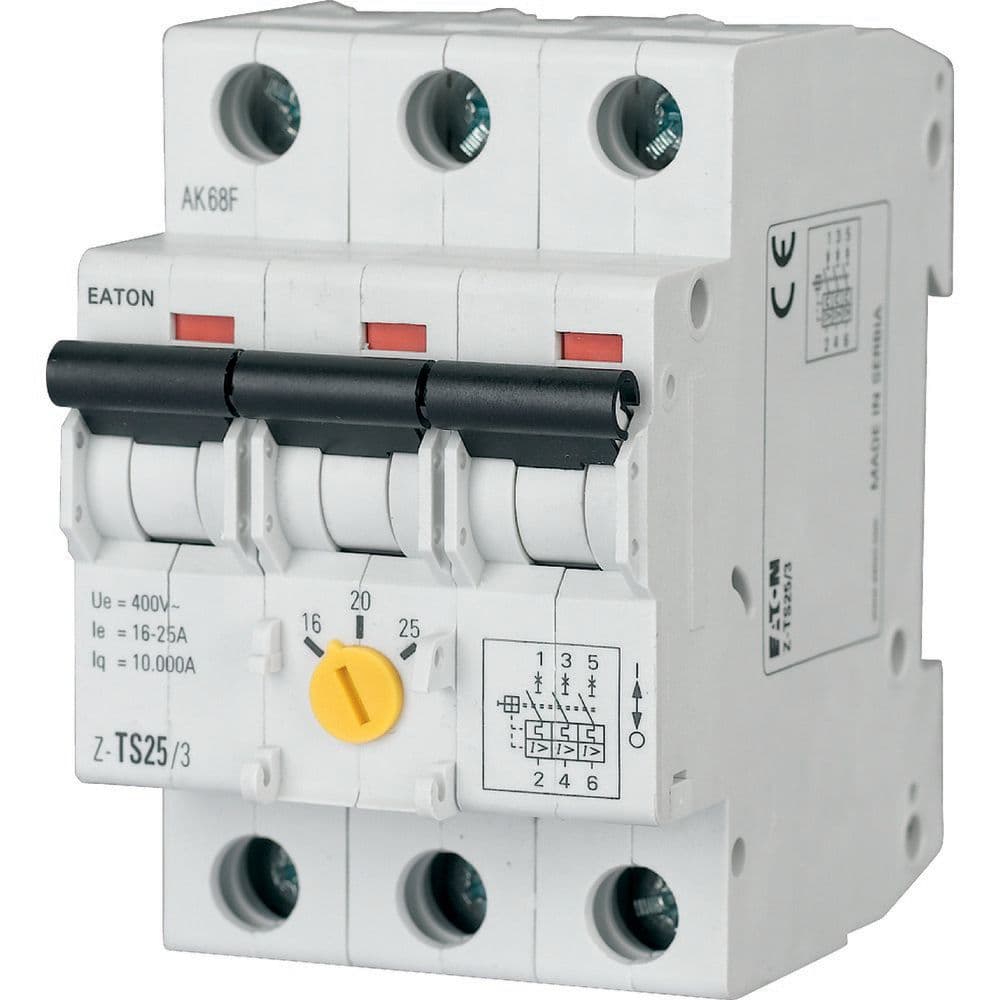

Eaton Distribution parts

المواصفات

Product NameEaton Distribution parts
Catalog Number266858
Model CodeZ-TS25/3
EAN4015082668587
Product Length/Depth80 mm
Product Height75 mm
Product Width54 mm
Product Weight0.366 kg
CompliancesRoHS conform
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.266858.html
Actuator typeRocker lever
Degree of protectionIP20
Fitted with:Thermal protection
Number of polesThree-pole
Electrical connection type of main circuitScrew connection
Power loss11.3 W
Device constructionComplete device in housing
Rated operating voltage (Ue) - max400 V
Rated operating voltage (Ue) - min400 V
Switch off techniqueMagnetic
Adjustment range short-term delayed short-circuit release - min16 A
Adjustment range undelayed short-circuit release - max25 A
Adjustment range undelayed short-circuit release - min16 A
Overload release current setting - max25 A
Overload release current setting - min16 A
