Eaton Moeller series NZM operating element

Eaton

Eaton Moeller series NZM operating element

رقم القطعة: 271504

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series NZM operating element

المواصفات

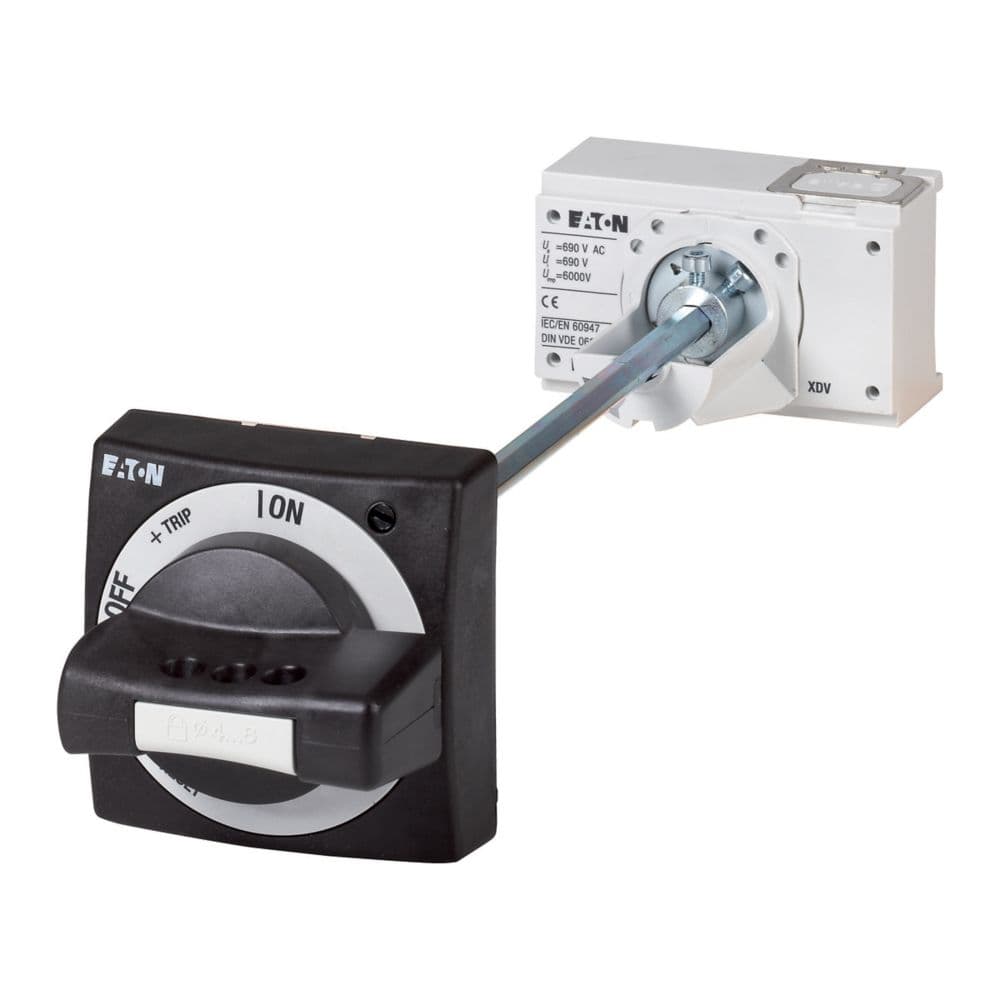

Special featuresComplete including rotary drive and coupling partsExtension shaft additionally required.For maximum shaft length 60 mmWithout shaft supportCannot be combined with NZM...-XDZ additional handleExternal warning plate/designation label can be clipped on.Door coupling rotary handle for operating the switch through a closed control panel door
Product NameEaton Moeller series NZM operating element
Catalog Number271504
Model CodeNZM1-XTVD-60
EAN4015082715045
Product Length/Depth75 mm
Product Height190 mm
Product Width90 mm
Product Weight0.59 kg
CompliancesUL/CSA IEC RoHS conform
CertificationsUL489 IEC60947 UL (File No. E140305) UL (Category Control Number DIHS) CSA (Class No. 1437-01) UL listed CSA-C22.2 No. 5-09 CSA (File No. 22086) CE marking CSA certified
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.271504.html
Suitable forPower circuit breaker Switch disconnector
Used withNZM1(-4), PN1(-4), N(S)1(-4)
FeaturesLockable Standard: black / gray
TypeAccessoryDoor coupling rotary handle
Fitted with:Padlock
FrameNZM1
