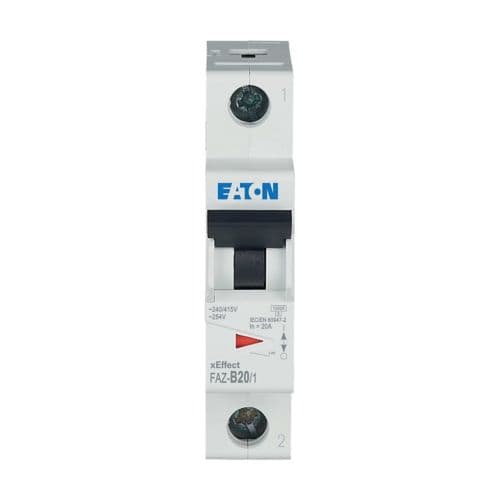

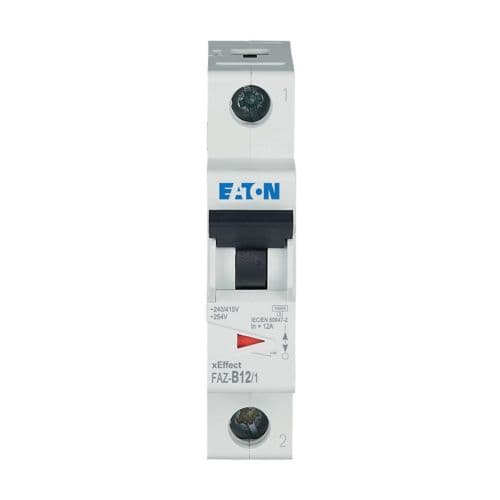

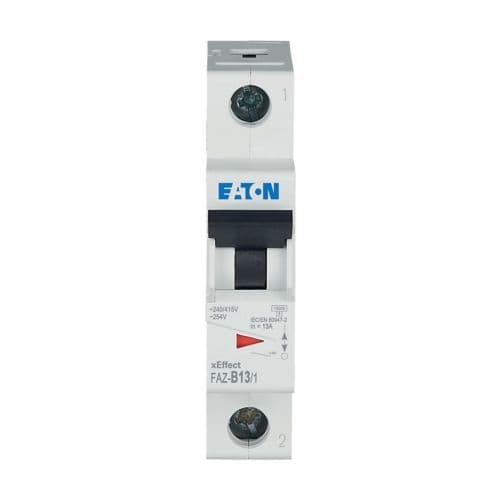

Eaton Moeller series xEffect - FAZ MCB

Eaton

Eaton Moeller series xEffect - FAZ MCB

رقم القطعة: 278535

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FAZ MCB

المواصفات

Special featuresAmbient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Product NameEaton Moeller series xEffect - FAZ MCB
Catalog Number278535
Model CodeFAZ-B16/1
EAN4015082785352
Product Length/Depth80 mm
Product Height75.5 mm
Product Width17.7 mm
Product Weight0.11 kg
CompliancesUL CSA09 (with supplementary protector only) RoHS conform
CertificationsCSA (Class No. 3215-30) IEC/EN 60898 UL 1077 UL (Category Control Number QVNU2, QVNU8) CSA (File No. 204453) CE marking CSA-C22.2 No. 235 UL (File No. E177451) North America (UL recognized, CSA certified) IEC/EN 60947-2 EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.278535.html
Used withMiniature circuit breaker FAZ
FeaturesAdditional equipment possible
Current limiting class3
