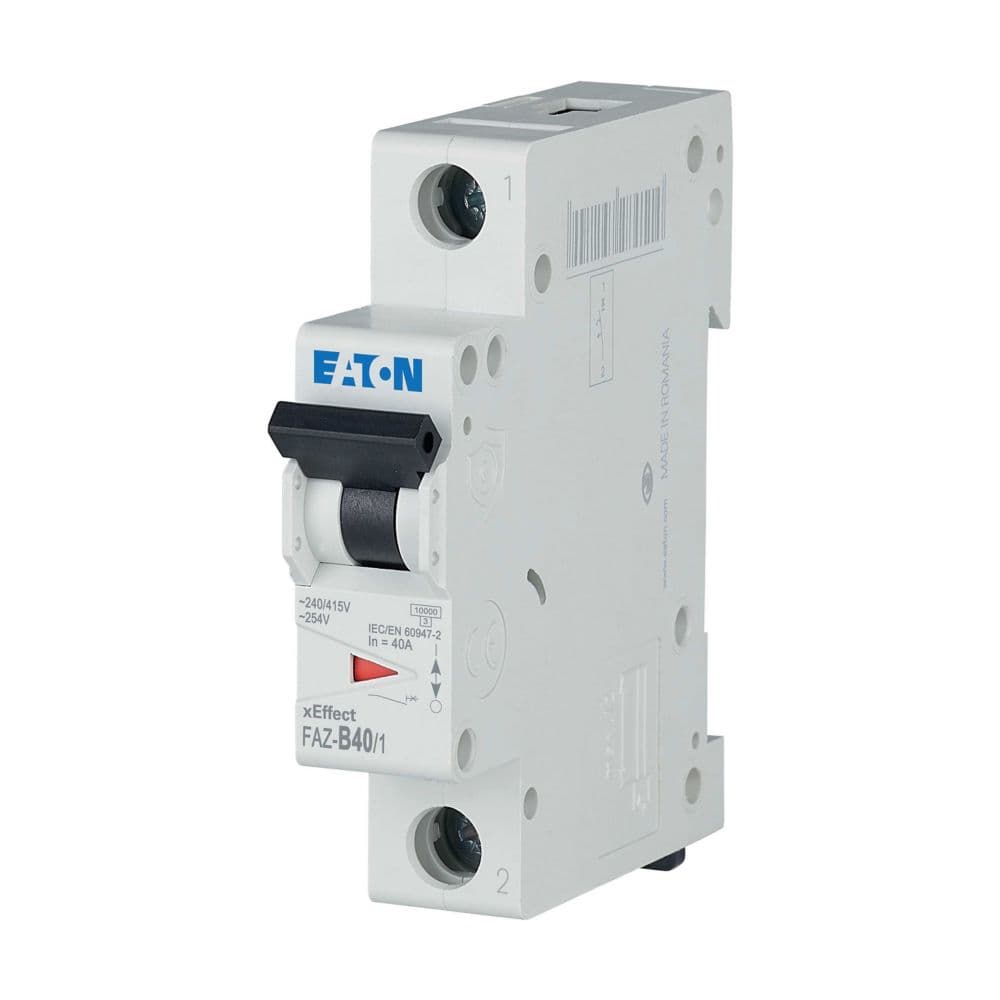

Eaton Moeller series xEffect - FAZ MCB

Eaton

Eaton Moeller series xEffect - FAZ MCB

رقم القطعة: 278539

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller series xEffect - FAZ MCB

المواصفات

FunctionsCurrent limiting circuit breaker Overcurrent protection Short-circuit protection
Special featuresAmbient temperature hint: a 1 °C increase results in a 0.5% linear reduction of current carrying capacity
Product NameEaton Moeller series xEffect - FAZ MCB
Catalog Number278539
Model CodeFAZ-B40/1
EAN4015082785390
Product Length/Depth80 mm
Product Height75.5 mm
Product Width17.7 mm
Product Weight0.116 kg
CompliancesUL CSA09 (with supplementary protector only) RoHS conform
CertificationsCSA (File No. 204453) North America (UL recognized, CSA certified) CSA (Class No. 3215-30) UL 1077 UL (File No. E177451) CE marking UL (Category Control Number QVNU2, QVNU8) IEC/EN 60947-2 IEC/EN 60898 CSA-C22.2 No. 235 EN45545-2 IEC 61373
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.278539.html
Used withAuxiliary switch: FAZ-XHIN... (286054, 289055), ZP-IHK/WHK (286052, 286053) Trip signal switch: FAZ-XAM002 (262414), ZP-NHK (248437) Shunt trip release: ZP-ASA... (248438, 248439), FAZ-XAA...(278518, 278519) Undervoltage release: FAZ-XUA... (212049, 212051, 212053), Z-US..(258288, 248289, 248290, 248292, 248291) Switching interlock: Z-IS/SPE-1TE (274418) Terminal cover: Z-TC/...(178102, 178099, 178100, 178101)
FeaturesAdditional equipment possible
Current limiting class3
Internal resistance at room temperature (single-pole, 50 Hz)1.9 mΩ
