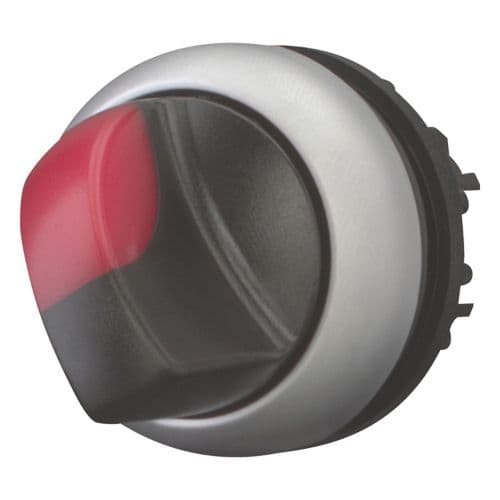

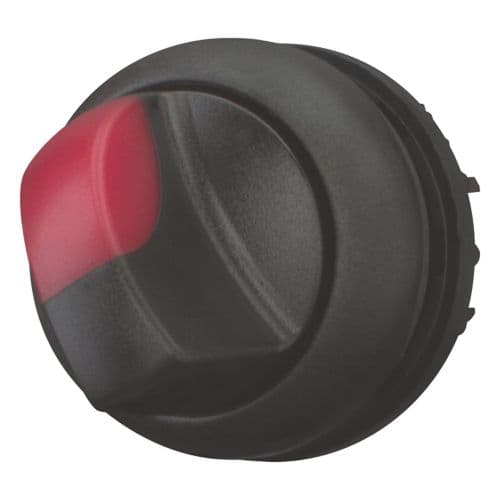

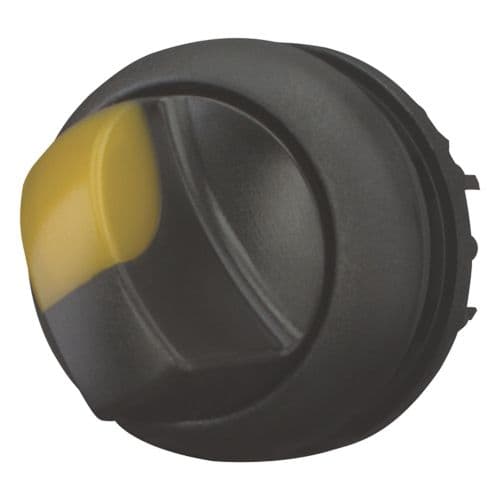

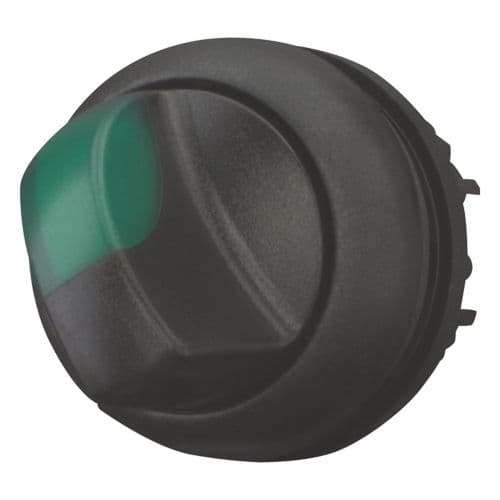

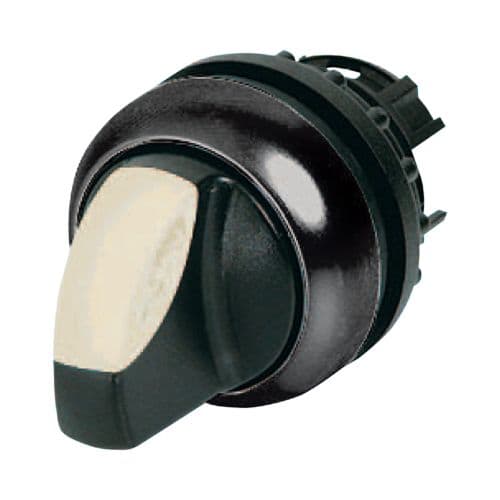

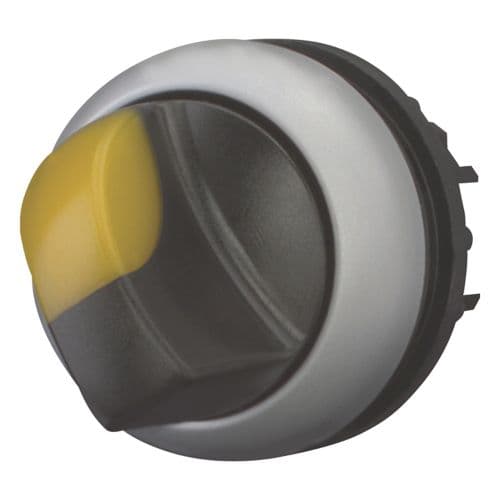

Eaton Moeller® series M22 illuminated selector switch

Name: Eaton Moeller® series M22 illuminated selector switch
Brand: Eaton
SKU: 284394

رقم القطعة: 284394

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton Moeller® series M22 illuminated selector switch

Functions	Stay-put/spring-return function, can be changed with coding parts M22-XC-Y
Product Name	Eaton Moeller® series M22 illuminated selector switch
Catalog Number	284394
Model Code	M22-WLKV-R
EAN	4015082843946
Product Length/Depth	46 mm
Product Height	30 mm
Product Width	30 mm
Product Weight	0.014 kg
Compliances	CE Marked
Certifications	EN 60947-5 IEC 60947-5 CSA Std. C22.2 No. 14-05 CSA Std. C22.2 No. 94-91 UL 508 VDE CSA Class No.: 3211-03 CSA-C22.2 No. 14-05 IEC/EN 60947-5 CSA File No.: 012528 IEC/EN 60947 UL UL File No.: E29184 CE VDE 0660 CSA CSA-C22.2 No. 94-91 UL Category Control No.: NKCR
Source URL	https://www.eaton.com/gb/en-gb/skuPage.284394.html
Actuator function	Maintained Switching function latching
Actuator type	Toggle
Number of switch positions	2
Actuator color	Black
Fitted with:	Front ring
Design	With thumb-grip
Bezel color	Titanium
Bezel material	Plastic
Indicator color	Red
Lens type	Round
