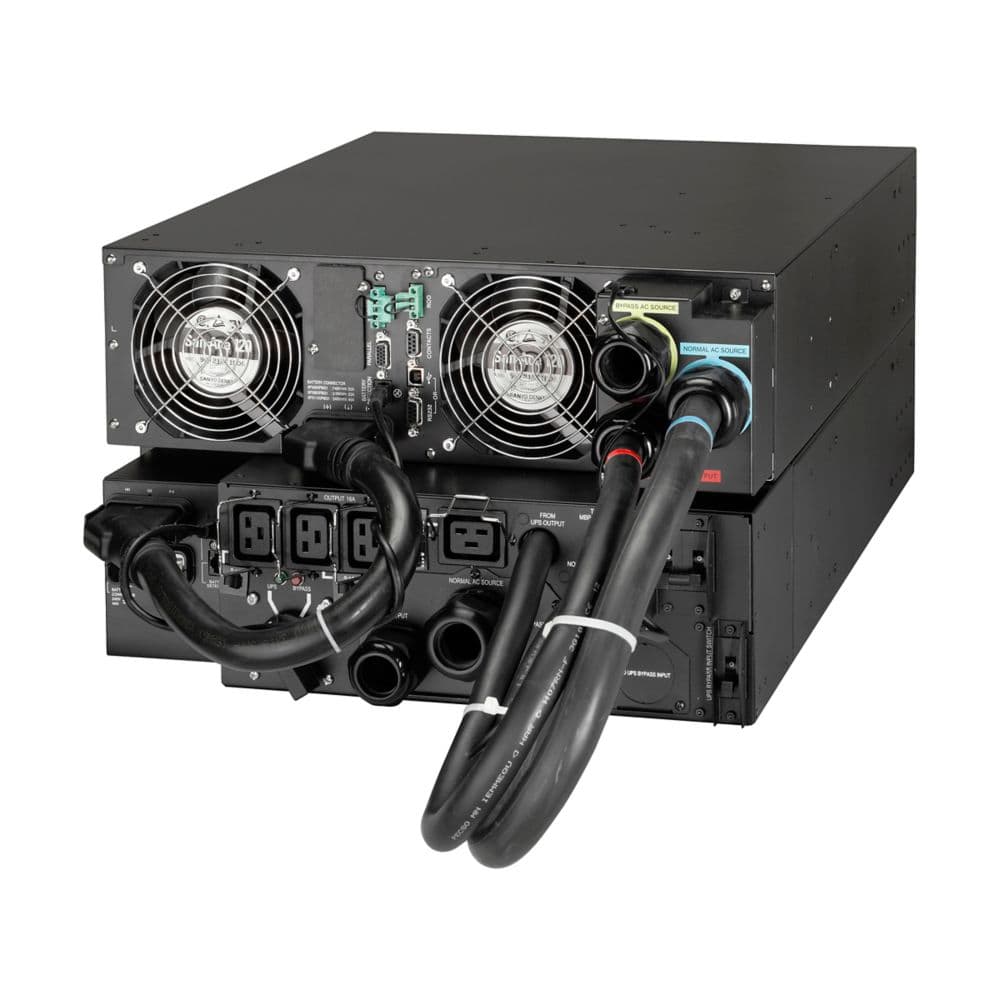

Eaton 9PX UPS
رقم القطعة: 9PX6KIBP31
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Eaton 9PX UPS
المواصفات
| Special features | Double conversion topologyConstantly monitors power conditions and regulates voltage and frequencyProvides more real power (watts) to protect more equipment with a 0.9 power factorEnergy efficient, reduce energy and cooling costsInternal bypass allows service continuity in case of UPS faultNext-generation graphical LCD displayCompatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)Meter energy consumption (at the UPS level)Parallel operation using HotSync technologyHot swappable batteriesAdvanced Battery Management (ABM) technology to increase battery lifetime |
|---|---|
| Product Name | Eaton 9PX UPS |
| Catalog Number | 9PX6KIBP31 |
| Model Code | Eaton 9PX 6000i 3:1 HotSwap |
| Product Length/Depth | 70 cm |
| Product Height | 44 cm |
| Product Width | 26 cm |
| Product Weight | 88 kg |
| Compliances | CE Marked TUV |
| Certifications | IEC/EN 62040-1 IEC/EN 62040-2 CE EAC |
| Source URL | https://www.eaton.com/gb/en-gb/skuPage.9PX6KIBP31.html |
| Color | Black/silver |
| Altitude | 3000 m |
| Construction type | Free standing model |
| Voltage type | AC |
| Power consumption | 324 W |
| UPC | 743172040282 |
| Type Of Interface | Other |
| Auto shutdown function | Yes |
| Input connection | Hardwired/fixed connection |
| Input nominal voltage | 400V default (380/400/415V) |
| Input voltage - max | 408 V |
| Input voltage - min | 305 V |
| Output frequency | 50/60 Hz |
| Output power factor | 0.9 |
| Output voltage - max | 240 V |
| Output voltage - min | 200 V |
| Package contents | Power ModuleExtended battery module (EBM)Maintenance BypassUSB cableSerial cableBattery cable with comms for automatic battery cabinet recognition(2) Supports for tower mountingLink plateSafety instructionsQuickstart guide |
| Phase (input) | 3 |
| Phase (output) | 1 |
| Potential free switch contact | Yes |
| Primary frequency - min | 40 Hz |
| Primary frequency - max | 70 Hz |
| Runtime at half load | 21 min |
| Topology | Online/Double-conversion |
| Voltage distortion output (linear load) - max | 2 |
| Wattage | 5400 W |
| Feed type | 2 |
| Runtime at full load | 8 min |
| Relative humidity | 0-95% non-condensing |
| Efficiency at max. load | 94 |
| Rack mounting kit | No |
| Battery quantity | 20 |
| Battery rating | 12 V / 9 Ah |
| Battery type | Sealed, lead-acid |
| Communication | USB port (HID compliant)Serial port (RS232)Mini terminal block for remote On/OffMini-terminal block for remote power offDry contacts (4 outputs, relay, DB9) |
| Rack size | 3U |
| VA rating | 6000 VA |
| Internal bypass | Yes |
| Hot swap power | Yes |
| Nominal frequency | 50/60 Hz |
| Input frequency range | 40-70 Hz |
| Input power factor | >.99 |
| Receptacle | (4) C19, Hardwired |
| Output waveform | Sine wave |
| Voltage | 400V |
| Output nominal voltage | 230V default (200/208/220/230/240V) |
| Runtime graph | View runtime graph |
| Battery management | ABM & Temperature compensated charging method (user selectable)Automatic battery testDeep discharge protectionAutomatic recognition of external battery units |
| Battery replacement | Hot-swappable battery modules |
| Extended battery capability | Yes |
| Expansion slots | One slot for optional communication card |
| Ethernet interface | No |
| Includes network card | No |
| Software compatibility | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| User interface | Multilingual graphical LCD display |
| BTU Rating | Online: 1105 |
| Noise level | <48 dB at 1 meter |
| Temperature range | 0° to 40°C (32° to 104°F) |
| Secondary frequency - max | 60 Hz |
| Secondary frequency - min | 50 Hz |
| Efficiency (eco-mode) | 98 |
| Input voltage range | 305-480 V |
| Max number of battery packs | 12 (supercharger required for more than 6 EBM) |
| Output voltage range | 200/208/220/230/240 V +/- 1% |
| Number of Outputs C19 | 4 |
| Number of outputs hardwired | 1 |
