Eaton

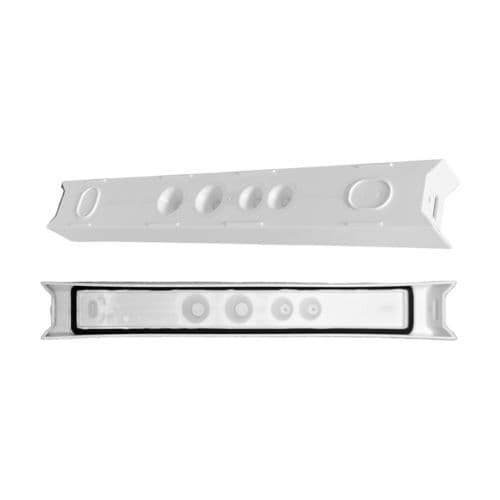

Eaton i-P65+ CPS Emergency luminaire

Name: Eaton i-P65+ CPS Emergency luminaire
Brand: Eaton
SKU: IP65PLPCGS

رقم القطعة: IP65PLPCGS

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Eaton i-P65+ CPS Emergency luminaire

المواصفات

Product Name	Eaton i-P65+ CPS Emergency luminaire
Catalog Number	IP65PLPCGS
Model Code	I-P65 PLUS L CG-S, WIDE BEAM SYM PC
EAN	5018987233118
Product Length/Depth	340 mm
Product Height	80.5 mm
Product Width	167.9 mm
Product Weight	1.2 kg
Certifications	CE
Source URL	https://www.eaton.com/gb/en-gb/skuPage.IP65PLPCGS.html
Suitable for	Emergency Lighting
Protection class	I
Degree of protection	IP65
Mounting method	Ceiling surface mounting
Connection type	Plug-in connection
Voltage type	AC/DC
Energy efficiency class	A
Lamp type	LED not exchangeable
Color temperature - max	5000 K
Lamp holder	None
Application	Acc. EN 1838
Impact strength	IK08
Inrush current	3
Lamp power	6.4 W
Function	Escape route lighting
Color housing	White
Color of light	White
Color rendering index (CRI)	80
Conductor cross section	2.5
Energy efficiency class of the built-in lamp	A++, A+, A (LED)
Kind of luminaire	Safety luminaire for escape route and open area lighting
Light distributor	Focal lens
Material cover	Plastic, transparent
Material housing	Plastic
Max. system power	9.3 W
Mode	Maintained / Non-Maintained (M / NM)
Monitoring equipment	Safety module for monitoring (central feeded system)
Nominal voltage AC - max	240 V
Nominal voltage AC - min	220 V
Number Of Poles (Numeric)	3
Pictogram included	False
Power factor	0.87
Power supply system	Central (central battery)
RAL-Number (Similar) Housing	9016
Rated ambient temp acc. IEC62722-2-1 - Max	40 °C
Rated ambient temp acc. IEC62722-2-1 - Min	-20 °C
Rated life time L70/B50 at 25 °C	60000 hour
Rated Luminous Flux Acc. IEC 62722-2-1	590 lm
Reserve-polarity protected	True
Suitable for continuous circuit	Yes
Suitable for standby switching	Yes
Type of control gear	LED operating device voltage-controlled
Type of wiring	Suitable for through wiring
Wiring system	Continuous circuit/emergency circuit
With light source	True
With remote control	No
With remote switch connection	True
Degree of impact resistance (IK)	IK 08
Testing system	CG technology STAR technology STAR+ technology
Battery quality	Not applicable
Permissible ambient temperature - min	-20 °C
Permissible ambient temperature - max	40 °C
Outdoor use compliance	False
Explosion protected	False
Current Consumption At 220V DC	40 mA
Apparent Power At Mains Operation	15.6 VA
Effective power at mains operation	9.3 W
Nominal voltage DC	220 V
Limited surface temperature	True
Luminous flux at emergency operation	770 lm
Color temperature - min	5000 K
Luminous flux in standby mode	770 lm
Frequency	50/60 Hz
Main connection terminal	Plug-in connection
Operating voltage - max	240 V
Operating voltage - min	220 V
Luminous flux - max	770 lm
Luminous flux - min	770 lm
Color Of Light Acc. EN 12464-1	Daylight white >5300 K
Color temperature	5000 K
Luminous flux	770 lm
Technology	LED
Power consumption mains operation - effective power (W)	9.3 W
Power consumption mains operation - apparent power (VA)	15.6 VA
Rated luminous flux	770 lm
