New generation: interface converter electrical/optical for PROFIBUS-field bus networks; repeater fun
رقم القطعة: OZD Profi 12M G11
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
New generation: interface converter electrical/optical for PROFIBUS-field bus networks; repeater function; for quartz glass FO; approval for Ex-zone 2 (Class 1, Div. 2)
المواصفات
| Type | OZD Profi 12M G11 |
|---|---|
| Name | OZD Profi 12M G11 |
| Operating temperature | 0-+60 °C |
| Minimum Storage Temperature | -40-+70 °C |
| Weight | 560 g |
| Mount Type | DIN rail or mounting plate |
| Scope of delivery | device, start-up instructions |
| Source URL | https://www.belden.com/products/industrial-networking-cybersecurity/fiber-interfaces/fieldbus-repeaters/ozd-profi-12m-g11 |
| Belden Taxonomy Path | industrial-networking-cybersecurity > fiber-interfaces > fieldbus-repeaters |
| Belden Category | industrial-networking-cybersecurity |
| Belden Subcategory | fiber-interfaces |
| Belden Sub-subcategory | fieldbus-repeaters |
| Datasheet URL | https://catalog.belden.com/techdata/EN/OZDProfi12MG11_techdata.pdf |
| Port Type and Quantity | 1 x optical: 2 sockets BFOC 2.5 (STR); 1 x electrical: Sub-D 9-pin, female, pin assignment according to EN 50170 part 1 |
| Operating Voltage | 18 ... 32 VDC, typ. 24 VDC |
| Power Consumption | 4.5 W |
| Part Number (normalized) | OZDProfi12MG11 |
| Multimode fiber (MM) 50/125 µm | 3000 m, 13 dB link budget at 860 nm; A = 3 dB/km, 3 dB reserve |
| Multimode fiber (MM) 62.5/125 µm | 3000 m, 15 dB link budget at 860 nm; A = 3.5 dB/km, 3 dB reserve |
| Relative humidity (non-condensing) | 10-95 % |
| IP Protection Rating | IP40 |
| Safety of industrial control equipment | cUL61010-2-201 |
| Housing Material | die-cast zink |
| Dimensions (WxHxD) | 39.5 x 137.5 x 84 mm |
| Guarantee | 60 months (please refer to the " https://assets.belden.com/m/1424ddb7a3280e7a/original/Hirschmann-Automation-and-Control-GmbH-Terms-of-Guarantee.pdf ">"terms of guarantee or detailed information) |
| Current consumption | max. 190 mA |
| Basis Standard | EU Conformity, FCC Conformity, AUS Conformity Australia |
| MTBF (Telcordia SR-332 Issue 3) @ 25°C | 3 645 832 h |
| Hazardous locations | ISA 12.12.01 Class 1 Div. 2, ATEX Zone 2 |
| Single mode fiber (SM) 9/125 µm | - |
| Power Supply | 8-pin terminal block, screw mounting |
| Signal Type | PROFIBUS (DP-V0, DP-V1, DP-V2 und FMS) |
| Measuring outputs "Optical input power" | 8-pin terminal block, screw mounting |
| Signaling contact | 8-pin terminal block, screw mounting |
| Multimode fiber HCS (MM) 200/230 µm | 1000 m, 18 dB link budget at 860 nm; A = 8 dB/km, 3 dB reserve |
| Multimode fiber POF (MM) 980/1000 µm | - |
| Input voltage range | -7 V ... +12 V |
| Redundancy functions | redundant 24 V infeed |
| Output voltage/output current (pin6) | 5 VDC +5%, -10%, short circuit-proof/10 mA |
منتجات مشابهة
الشبكات الصناعية والأمن السيبرانيBelden
New generation: interface converter electrical/optical for PROFIBUS-field bus networks; repeater fun
اطلب عرض سعر
Belden
New generation: interface converter electrical/optical for PROFIBUS-field bus networks; repeater fun
اطلب عرض سعر
Belden

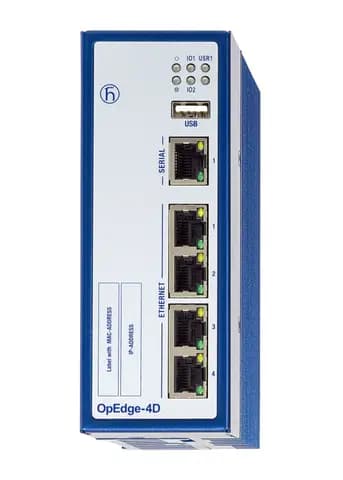

Industrial Edge Gateway Device for DIN Rail Mounting
اطلب عرض سعر
Belden
Interface converter electrical/optical for PROFIBUS-field bus networks; repeater function; for quart
اطلب عرض سعر
Belden

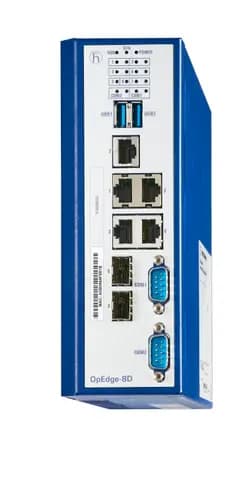

Industrial Edge Gateway Device for DIN Rail Mounting
