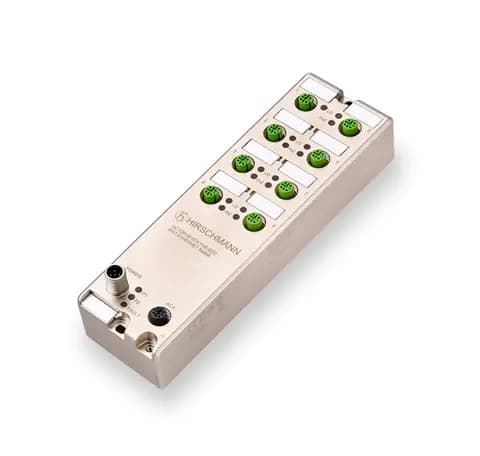

Unmanaged IP67 Switch, 8 ports, supply voltage 24 VDC, train approvals

Belden

Unmanaged IP67 Switch, 8 ports, supply voltage 24 VDC, train approvals

رقم القطعة: OCTOPUS 8TX -EEC

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Unmanaged IP67 Switch, 8 ports, supply voltage 24 VDC, train approvals

المواصفات

TypeOCTOPUS 8TX-EEC
DescriptionThe OCTOPUS switches are suited for outdoor applications with rough environmental conditions. Because of the branch typical approvals they can be used in transport applications (E1), as well as in trains (EN 50155) and ships (GL).
Operating temperature-40-+70 °C
Minimum Storage Temperature-40-+85 °C
Weight470 g
Mount TypeWall mounting
Scope of delivery1 × Device, 1 × Transport protection cap for supply voltage connection, 7 × Protection cap for M12 socket, 1 x M12-connector (ELWIKA 5012 PG7) for power connection, General safety instructions
Update and RevisionRevision Number: 0.120 Revision Date: 03-03-2026
Source URLhttps://www.belden.com/products/industrial-networking-cybersecurity/unmanaged-switches/ip67-rated/octopus-8tx-eec
Belden Taxonomy Pathindustrial-networking-cybersecurity > unmanaged-switches > ip67-rated
Belden Categoryindustrial-networking-cybersecurity
Belden Subcategoryunmanaged-switches
Belden Sub-subcategoryip67-rated
Datasheet URLhttps://catalog.belden.com/techdata/EN/OCTOPUS8TX-EEC_techdata.pdf
Port Type and Quantity8 ports in total uplink ports: 10/100 BASE-TX, M12 "D"-coding, 4-pole 8 x 10/100 BASE-TX TP-cable, auto-crossing, auto-negotiation, auto-polarity.
Operating Voltage12 / 24 / 36 VDC (9,6 .. 45 VDC)
Power Consumption4.2 W
Part Number (normalized)OCTOPUS8TX-EEC
Twisted pair (TP)0-100 m
IP Protection RatingIP65, IP67
Safety of industrial control equipmentcUL61010-2-201
Accessories to Order SeparatelyACA22-M12 (EEC) (942 125-001), M12 conector, "D"-coded (934 445-001) 2 m cordset with M12-connector, "D"-coded (934 578-001) 5 m cordset with M12-connectors, "D"-coded (934 578-002) 10 m cordset with M12-connectors, "D"-coded (934 578-003) Bulkhead M12 "D"-coded to RJ45 (934 498-001), OCTOPUS metal dust cover set (25 pieces) (942 057-001), OCTOPUS plastic dust cover set (25 pieces) (942 057-002)*
NotePlease note that some recommended accessory parts only support a temperature range from -25 ºC to +70 ºC and might limit the possible operating conditions for the entire system.
EN 61000-4-2 Electrostatic Discharge (ESD)6 kV contact discharge, 8 kV air discharge
EN 61000-4-3 Electromagnetic Field20 V/m (80-3000 MHz)
EN 61000-4-4 Fast Transients (Burst)2 kV power line, 4 kV data line
EN 61000-4-5 Surge Voltagepower line: 2 kV (line/earth), 1 kV (line/line), 2 kV data line
EN 61000-4-6 Conducted immunity3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)
DiagnosticsLEDs (power, link status, data)
ConfigurationSwitch: aging time, Qos 802.1p mapping, QoS DSCP mapping. Pro Port: port state, flow control, broadcast mode, multicast mode, jumbo frames,QoS trust mode, port-based priority, auto-negociation, data rate, duplex mode, auto-crossing, MDI state
Dimensions (WxHxD)60 mm x 200 mm x 31 mm
IEC 60068-2-6 vibration1 mm, 2 Hz-13.2 Hz, 90 min. 0.7 g, 13.2 Hz-100 Hz, 90 min. 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min. 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock15 g, 11 ms duration, 18 shocks
EN 55032EN 55032 Class A
TransportationE1
Guarantee60 months (please refer to the " https://assets.belden.com/m/1424ddb7a3280e7a/original/Hirschmann-Automation-and-Control-GmbH-Terms-of-Guarantee.pdf ">"terms of guarantee or detailed information)
Safety of information technology equipmentEN62368
Product Documentationhttps://www.doc.hirschmann.com
Certificateshttps://www.doc.hirschmann.com/certificates.html
Power output in BTU (IT)/h12.3
FCC CFR47 Part 15FCC 47CFR Part 15, Class A
Basis StandardCE, EAC, Australian Regulatory Compliance Mark (RCM)
Railway normEN 50155, EN 45545-2, EN 50121-4
MTBF (Telcordia SR-332 Issue 3) @ 25°C6 779 960 h
Hazardous locationsISA 12.12.01 Class 1 Div. 2
USB interface1 x M12 5-pin socket, A coding
Software Downloadhttps://my.belden.com/s/downloads
Power supply/signaling contact1 x M12 5-pin connector, A coding, no signaling contact
Redundancy functionsredundant power supply
Relative humidity (also condensing)5-100 %
Line - / star topologyany
