Mosaic™ - PIR 360° lighting sensor Ø8m - IP41 - ceiling mounting
رقم القطعة: 048807
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Mosaic™ - PIR 360° lighting sensor Ø8m - IP41 - ceiling mounting
المواصفات
| Mounting method | Flush-mounted |
|---|---|
| Colour | White |
| Degree of protection (IP) | IP20 |
| Source URL | https://www.legrand.com/ecatalogue/en/catalog/products/mosaic-pir-360deg-lighting-sensor-o8m-ip41-ceiling-mounting-048807 |
| Legrand Category | Ceiling,Sensor,Motion sensors,Motion and presence detectors |
| Legrand Taxonomy Path | Wiring devices, connected home and building control > Home and building wiring devices > Motion and presence sensors > Ceiling |
| Datasheet URL | https://assets.legrand.com/pim/Certif/LGFKYLDLRS.PDF |
| Material | Plastic |
| Surface protection | Untreated |
| Model | Movement sensor |
| Surface finishing | Glossy |
| Material quality | Thermoplastic |
| Substation input | Yes |
| Max. switching power | 2000 W |
| Frequency (Min-Max) | 50-60 Hz |
| RAL-number (similar) | 9003 |
| Transparent | No |
| Voltage type | AC |
| Nominal voltage (Min-Max) | 230-230 V |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Antimicrobial treatment | No |
| With connection cable | No |
| Ambient temperature (Min-Max) | -5-45 °C |
| Constant light control | Yes |
| HVAC-control | No |
| Animal zone | No |
| Creep-under protection | Yes |
| Background monitoring | No |
| Networkable | No |
| Optimum mounting height | 2.5 m |
| Staircase light controller | Yes |
| Bridging switch | Yes |
| Diameter reach on floor | 8 m |
| Suitable for wireless transmission | No |
| Remote operation | Yes |
| Response value sensitivity adjustable | Yes |
| Response value luminosity adjustable | Yes |
| With signal unit | Yes |
| Teach-function for response value luminosity | No |
| Dim function with dimmer basic element | No |
| Min. switch-on time | 5 s |
| Max. duty cycle | 59 min |
| Detection angle horizontal (Min-Max) | 0-360 ° |
| Response value luminosity (Min-Max) | 5-1275 lx |
| With alarm function | Yes |
| With acoustic sensor | No |
| Max. reach sideways | 4 m |
| Max. reach frontally | 6 m |
| Forced switch off | No |
| Max. starting current | 8.5 A |
| Connection cable length | 0 mm |
منتجات مشابهة
أدوات التوصيل و التركيبLegrand
Mosaic™ - PIR 360° lighting sensor 2x12m - IP41 - ceiling mounting
اطلب عرض سعر
Legrand

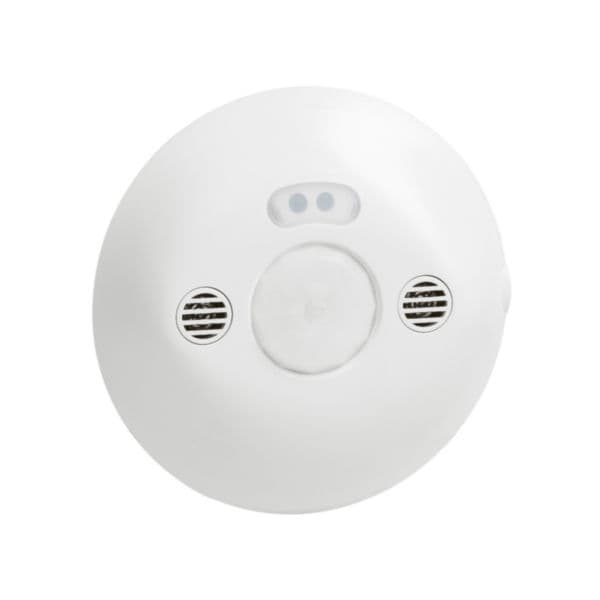

Mosaic™ - Dual tech PIR + US 360° lighting sensor Ø8m - IP20 - ceiling mounting
اطلب عرض سعر
Legrand
Mosaic™ - PIR 360° motion sensor Ø8m with directional head - IP55 - surface wall or ceiling mounting
اطلب عرض سعر
Legrand
Mosaic™ - PIR high density 360° lighting sensor Ø8m - IP42 - ceiling mounting
اطلب عرض سعر
Legrand

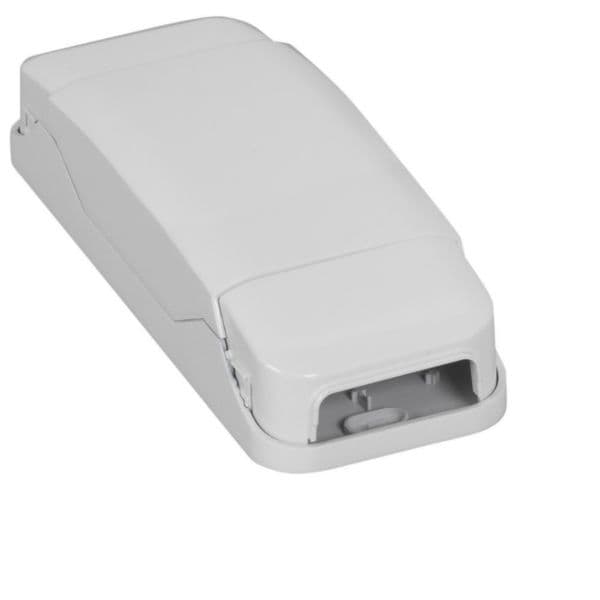

Mosaic™ - Lighting management-power pack-ceiling mounting-2 outputs-1x16 A+dry contact
اطلب عرض سعر
Legrand
Green-I - GI-HSB highbay surface on-off black sensor - Passive infrared - 360° detection - IP55
اطلب عرض سعر
Legrand
Green-I - GI-HSW Highbay Surface On-Off White Sensor - Passive infrared 360° detection - 20m diamete
اطلب عرض سعر
Legrand

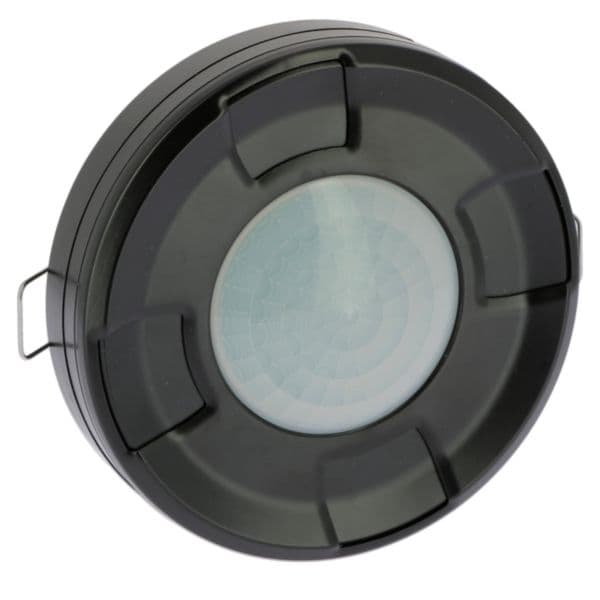

Green-I - GI-HRB - Highbay recessed on-off black sensor - Passive infrared - 360° detection - IP55
