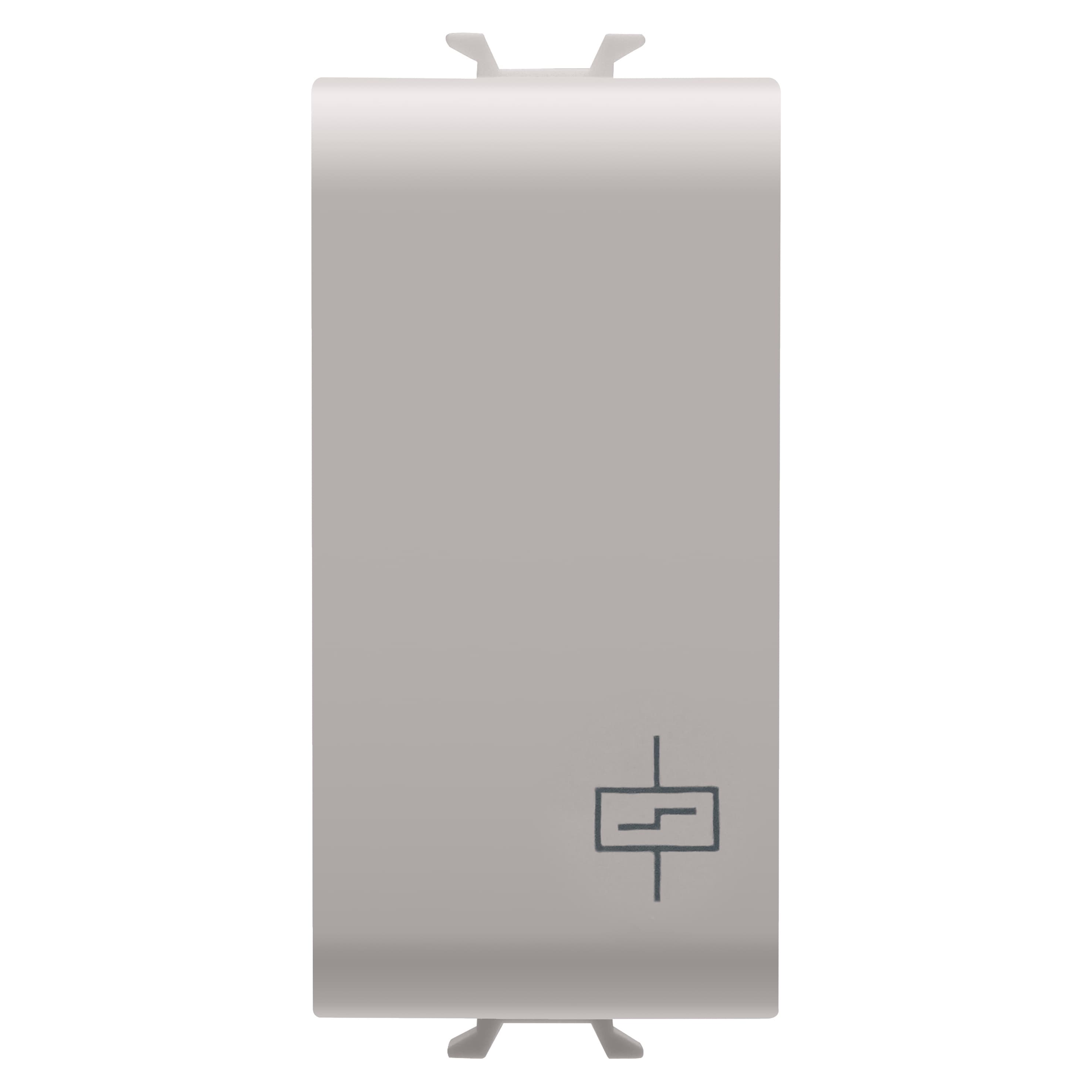

LATCHING RELAY 230V ac 50/60Hz - 1P 10AX 250V ac - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART

GEWISS

LATCHING RELAY 230V ac 50/60Hz - 1P 10AX 250V ac - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART

رقم القطعة: GW13721

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

LATCHING RELAY 230V ac 50/60Hz - 1P 10AX 250V ac - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART

المواصفات

ColourNatural satin beige
MaterialTechnopolymer
TypeLatching relay
Glow Wire Test850 °C
StandardEN 60669-1 / EN 60669-2-2
Ware Number85364900
Source URLhttps://www.gewiss.com/ww/en/products/product.1000000.1007728.GW13721
GEWISS FamilyBuilding
GEWISS SeriesCHORUSMART - domestic range-Satin natural beige modular devices
GEWISS Taxonomy PathBuilding > CHORUSMART - domestic range-Satin natural beige modular devices
Datasheet URLhttps://www.gewiss.com/content/gewiss/ww/en/products/product.datasheet.1000000.1007728.GW13721.pdf
Electrocod140
Insulation resistance> 5 MOhm
DescriptionLatching relay
CategoryRelay
Voltage230 V ac
Resistance at test voltage2000 V at 50 Hz for 1 minute
Wiring terminalsWith screw
Prolonged operation switch (no.of position changes)40.000 at In 250 V ac cosφ=0.6
Thermo-pressure with ball125 °C
Terminal grip on cable traction> 50 N
Terminal tightening capacity stranded cables (mm²)1x4 / 2x2.5
Terminal tightening capacity solid cables (mm²)2x2.5
No. modules1
Frequency50/60 Hz
230V LED lamps200 W
Output contacts10 AX 250 V ac
No. of poles1P
230V incandescent-halogen lamps1000 W
Fluorescent lamps with electronic ballast400 W
Fluorescent lamps with compensated ballast360 W
CFL lamps200 W
Halogen/LED lamps with electronic transformer200 W
Halogen/LED lamps with electromechanical transformer400 W
