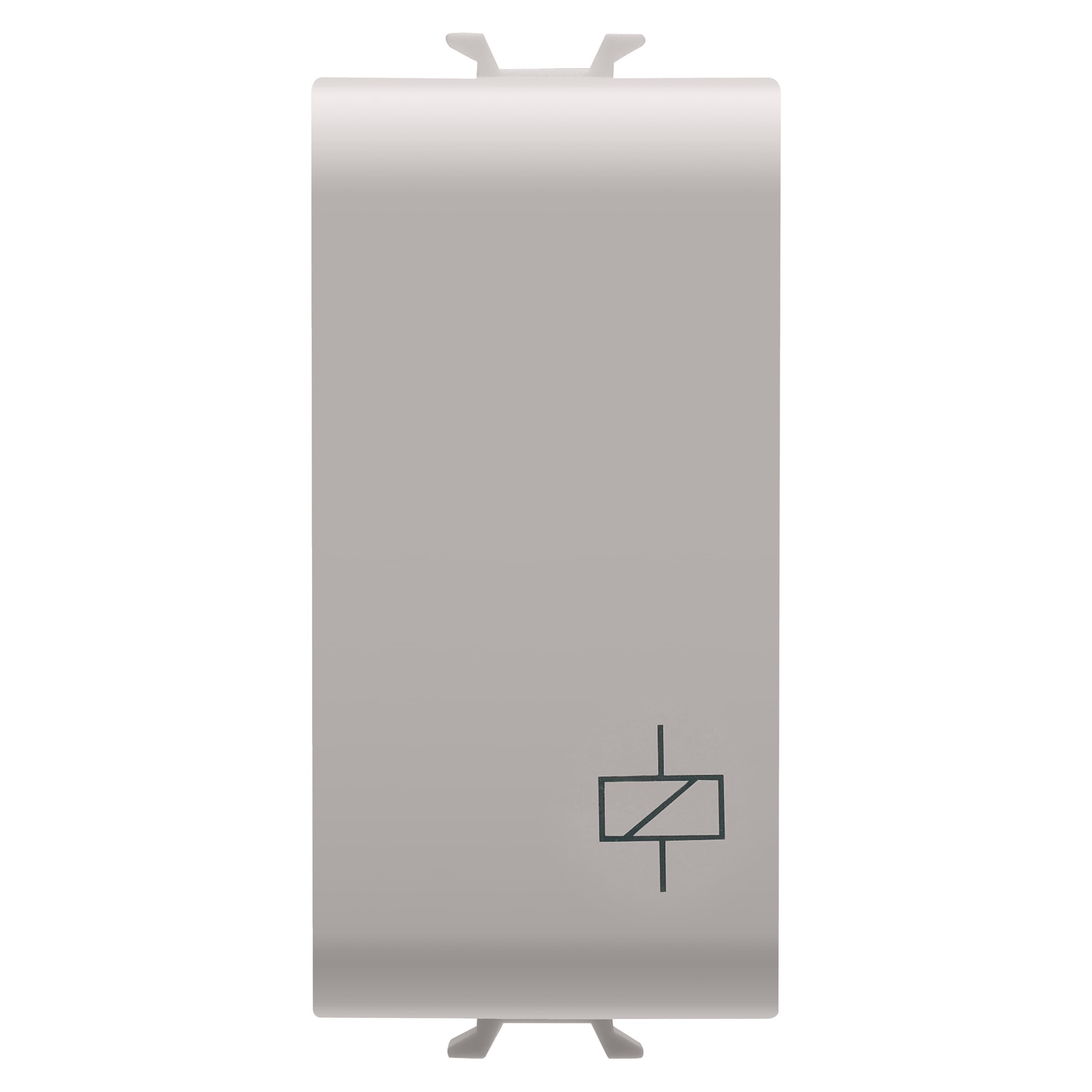

MOMENTARY RELAY 230V ac 50/60Hz - 1P 1NO/NC 10A(AC1)/2A(AC15)250Vac - 1 MODULE - NATURAL SATIN BEIGE

Name: MOMENTARY RELAY 230V ac 50/60Hz - 1P 1NO/NC 10A(AC1)/2A(AC15)250Vac - 1 MODULE - NATURAL SATIN BEIGE
Brand: GEWISS
SKU: GW13724

رقم القطعة: GW13724

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

MOMENTARY RELAY 230V ac 50/60Hz - 1P 1NO/NC 10A(AC1)/2A(AC15)250Vac - 1 MODULE - NATURAL SATIN BEIGE - CHORUSMART

Colour	Natural satin beige
Material	Technopolymer
Type	Monostable relay
Glow Wire Test	850 °C
Standard	EN 60669-1 / EN 60669-2-2
Ware Number	85364900
Source URL	https://www.gewiss.com/ww/en/products/product.1000000.1007728.GW13724
GEWISS Family	Building
GEWISS Series	CHORUSMART - domestic range-Satin natural beige modular devices
GEWISS Taxonomy Path	Building > CHORUSMART - domestic range-Satin natural beige modular devices
Datasheet URL	https://www.gewiss.com/content/gewiss/ww/en/products/product.datasheet.1000000.1007728.GW13724.pdf
Electrocod	140
Insulation resistance	> 5 MOhm
Description	Monostable relay
Category	Relay
Voltage	230 V ac
Resistance at test voltage	2000 V at 50 Hz for 1 minute
Wiring terminals	With screw
Prolonged operation switch (no.of position changes)	40.000 at In 250 V ac cosφ=0.6
Thermo-pressure with ball	125 °C
Terminal grip on cable traction	> 50 N
Terminal tightening capacity stranded cables (mm²)	min. 1 - max. 2x4
Terminal tightening capacity solid cables (mm²)	min. 1 - max. 2x2.5
No. modules	1
Frequency	50/60 Hz
Output contacts	1NO/NC 10 A (AC1)/2 A (AC15) 250 V ac
No. of poles	1P
