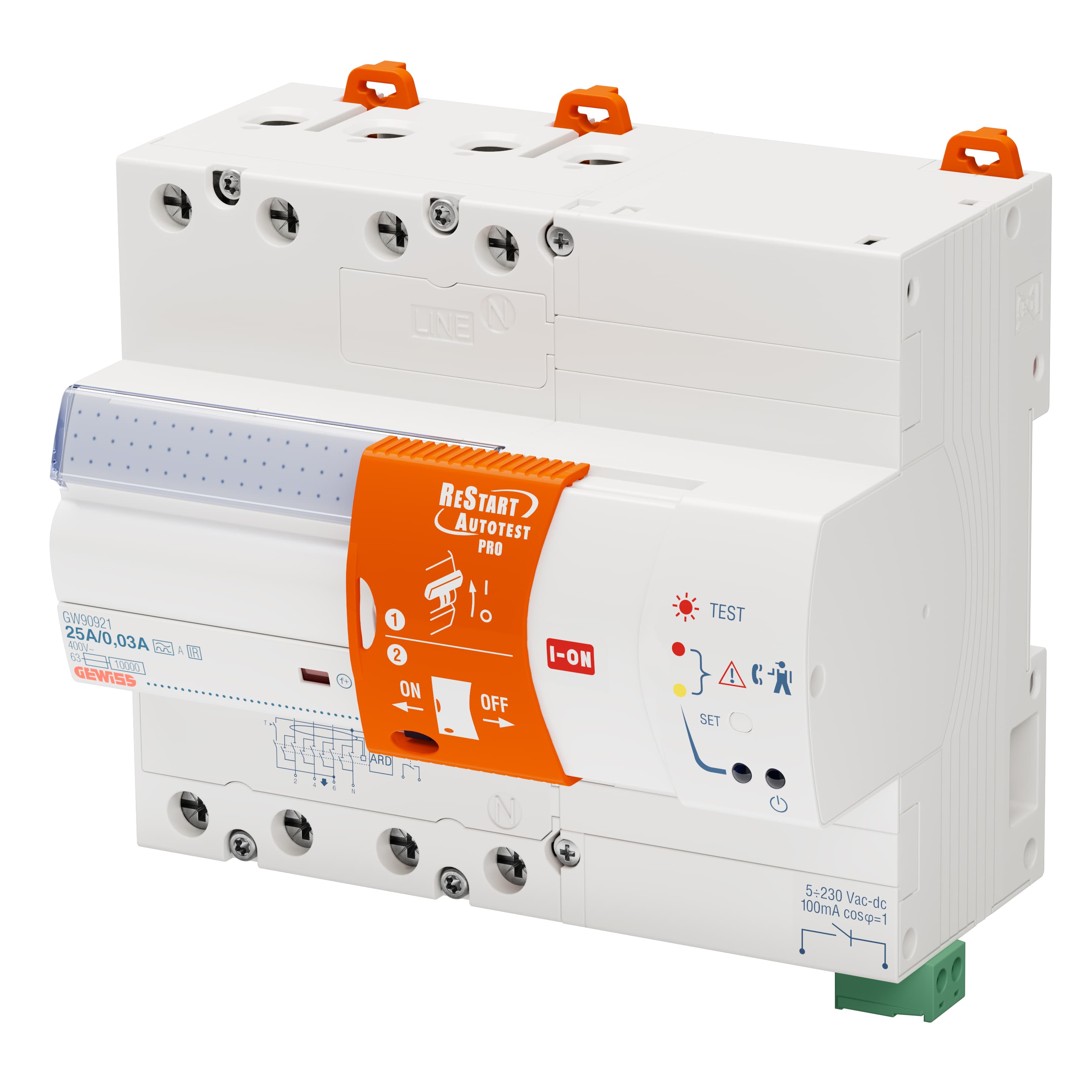

RESTART WITH AUTOTEST PRO - COUPLED WITH RCCB'S - 4 POLES - 25 A TYPE A[IR] Idn=0,03 A 400 V - 7 MOD

Name: RESTART WITH AUTOTEST PRO - COUPLED WITH RCCB'S - 4 POLES - 25 A TYPE A[IR] Idn=0,03 A 400 V - 7 MOD
Brand: GEWISS
SKU: GW90921

رقم القطعة: GW90921

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

RESTART WITH AUTOTEST PRO - COUPLED WITH RCCB'S - 4 POLES - 25 A TYPE A[IR] Idn=0,03 A 400 V - 7 MODULES EN 50022

المواصفات

Standard	IEC EN 63024, IEC EN 61008-1, IEC EN 61008-2-1
Ware Number	85362010
Source URL	https://www.gewiss.com/ww/en/products/product.1000001.1000060.GW90921
GEWISS Family	Energy
GEWISS Series	ReStart Range-Automatic reclosing devices
GEWISS Taxonomy Path	Energy > ReStart Range-Automatic reclosing devices
Datasheet URL	https://www.gewiss.com/content/gewiss/ww/en/products/product.datasheet.1000001.1000060.GW90921.pdf
Electrocod	1414
Operating temperature	-25 +60 °C
Description	Automatic reclosing device
No. modules	7
Stocking temperature	-40°C ÷ +70°C
Use category	AC12
Insulation voltage (Ui)	500 V
Rated current	25 A
Rated impulse withstand voltage (Uimp)	4 kV
Rated voltage AC	400 V
Code	ReStart Autotest PRO 4P
Rated frequency (Hz)	50 Hz
Mechanical endurance	4000
Rated tightening torque	0.4 Nm
Distribution system	TT - TN-S
Overvoltage category	III
Dielectric strength test voltage between pole and earth	2500 V ac for 1 minute
Type of residual current protection	A[IR]
Rated residual operating current	30 mA
Rated non-operating resistance between live parts and earth (Rdo)	8 kΩ
Type of contacts	Photomos (potential free)
Voltage operating	5-230 V ac/dc
Rated operating resistance between live parts and earth (Rd)	16 kΩ
Current operating	0.6 mA (min)-100 mA cosφ=1 (max)
Maximum operating frequency	30 oper./h
Operating frequency	50 Hz
Operating modes	NO/NC/NC + pulse
Terminal section	≤ 2.5 mm²
Automatic reclosure for untimely tripping	Yes
Earth failure test	Yes
Continuous system monitoring	Yes
Autotest (automatic RCCB protection test)	Yes
Completeable with	GW90992 RS485 BUS Module
Number of poles	4P
