Caterpillar

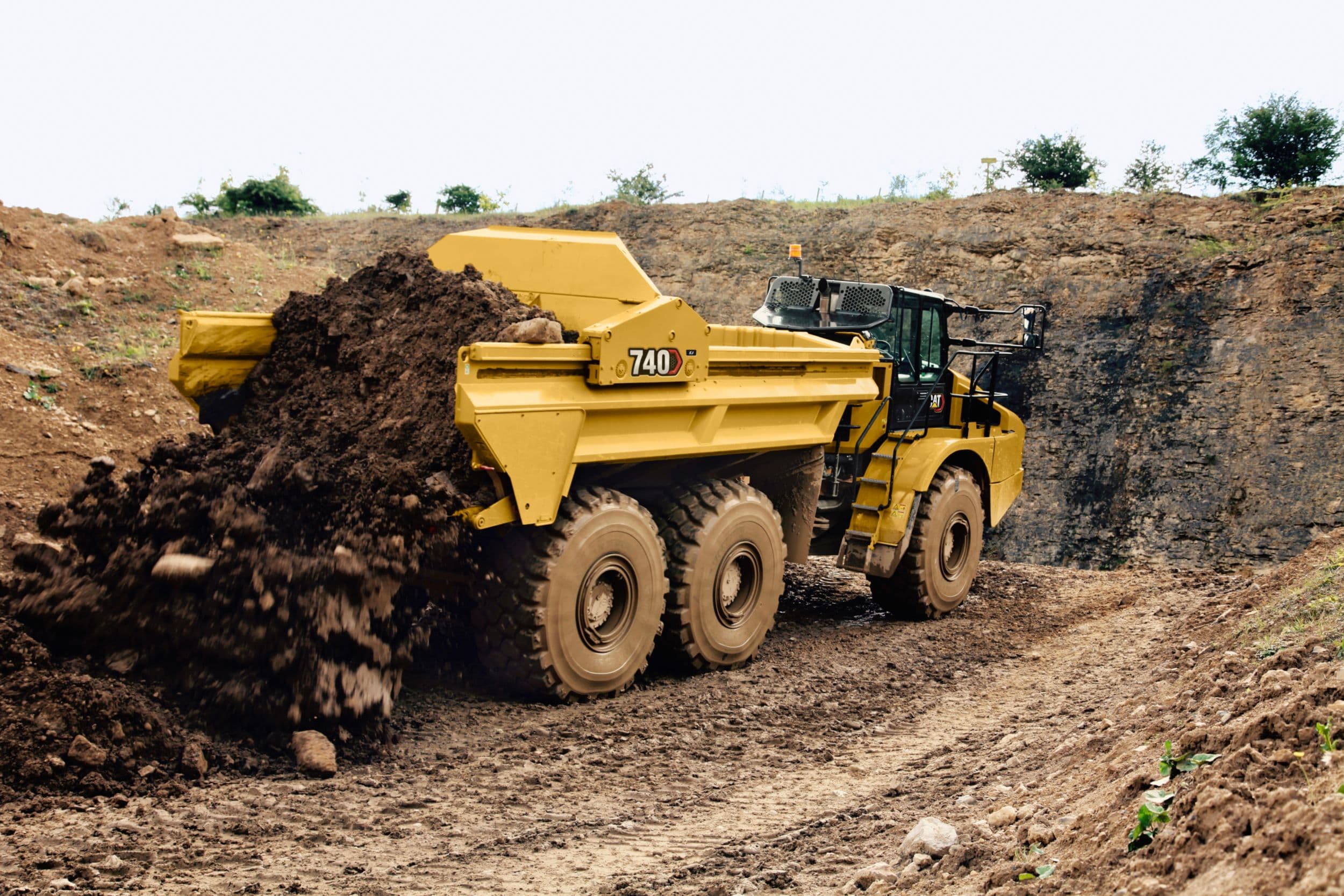

740 EJ Articulated Truck

Name: 740 EJ Articulated Truck
Brand: Caterpillar
SKU: CAT-1000034268

رقم القطعة: CAT-1000034268

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

740 EJ Articulated Truck

المواصفات

Engine Model	Cat® C18
Gross Power (SAE J1995)	381 kW
Rated Payload	38 t
Net Power (SAE J1349)	370 kW
Engine Power (ISO 14396)	376 kW
Bore	145 mm
Stroke	183 mm
Displacement	18.1 l
Peak Engine Torque Gross (SAE J1995)	2618 N·m
Peak Engine Torque Speed	1200 r/min
Peak Engine Torque Net (SAE J1349)	2558 N·m
No Engine De-rating Required Below	3050 m
Note (1)	Advertised power is tested at 1,700 rpm.
Note (2)	Advertised power is tested per the specified standard in effect at the time of manufacture.
Lock to Lock	4.8 seconds @ 60 rpm
Note (3)	The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed.
Forward - 1	6.1 km/h
Note (4)	Net power when the fan is at maximum speed is 370 kW (496 hp) per the SAE reference conditions.
Forward - 2	8.1 km/h
Note (5)	The Cat C18 meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Forward - 3	11.2 km/h
Note (6)	Diesel exhaust fluid (DEF) used in Cat SCR systems must meet the requirements outlined in ISO 22241-1:2006. ISO 22241-1:2006 requirements are met by many brands of DEF, including those that carry the AdBlue® or API certifications.
Turning Dimensions - Steer Angle - Left/Right	45°
Forward - 4	14.1 km/h
Heaped (SAE 2:1)	23 m³
Turning Dimensions - Aisle Width	5925 mm
Turning Dimensions - Clearance Radius	9045 mm
Forward - 5	18.7 km/h
Struck	18 m³
Turning Dimensions - SAE Turning Radius	8624 mm
Turning Dimensions - Inside Radius	4413 mm
Forward - 6	22.9 km/h
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. • If equipped with R134a (Global Warming Potential = 1430), the system contains 1.1 kg (2.4 lb) of refrigerant which has a CO2 equivalent of 1.716 metric tonnes (1.891 tons).
Note	Dimensions are for machines equipped with 29.5R25 tires.
Forward - 7	31.5 km/h
Reverse - 1	6.4 km/h
Forward - 8	37.9 km/h
Fuel Tank	550 l
Sound Levels — Note (1)	The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the maximum cooling fan’s speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.
Forward - 9	54.8 km/h
Cooling System	90 l
Sound Levels — Note (2)	Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or doors/windows open for extended periods or in noisy environments.
Reverse - 2	14.6 km/h
Front Axle - Empty	20550 kg
Brake Cooling Tank	67 l
Interior Cab	72 dB(A)
DEF Tank	25 l
Engine Crankcase	52 l
Center Axle - Empty	7710 kg
Rear Axle - Empty	7450 kg
Steering/Hoist Hydraulic System	140 l
Total - Empty	35710 kg
Transmission - OTG	75 l
Final Drive - Each	5 l
Brakes	ISO 3450 – 2011
Front Axle - Rated Load	1603 kg
Axles - Each	60 l
Cab - FOPS	ISO 3449 Level II – 2005
Center Axle - Rated Load	18198 kg
Cab - ROPS	ISO 3471 – 2008
Rear Axle - Rated Load	18198 kg
Steering	ISO 5010 – 2019
Total - Rated Load	37999 kg
Model	740 EJ
Front Axle - Loaded	22154 kg
Product Page	https://www.cat.com/en_US/products/new/equipment/articulated-trucks/three-axle-articulated-trucks/1000034268.html
Center Axle - Loaded	25908 kg
Caterpillar Category	Three Axle Articulated Trucks
Rear Axle - Loaded	25648 kg
Caterpillar Category Path	Products > Equipment > Articulated Trucks > Three Axle Articulated Trucks > 740 EJ
Total - Loaded	73710 kg
Caterpillar Product Family	equipment
Type	High Strength Brinell HB450 Wear Resistant Steel
Caterpillar Product Page ID	1000034268
Datasheet URL	https://s7d2.scene7.com/is/content/Caterpillar/CM20171023-48934-49842
Front	7 mm
Chute	14 mm
Side	11 mm
Base	14 mm
Eject (manual)	17 s
Hydraulic Excavator: 374 - Passes	5
Eject (automatic)	16 s
Retract (manual)	21 s
Wheel Loader: 972 - Passes	4–5
Retract (automatic)	21 s
Hydraulic Excavator: 390 - Passes	4
Wheel Loader: 982 - Passes	4
Optimal Loader/Truck Pass Matching — Note	An optimum system match gives you a major productivity advantage. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.
Wheel Loader: 980 - Passes	4–5
