Caterpillar

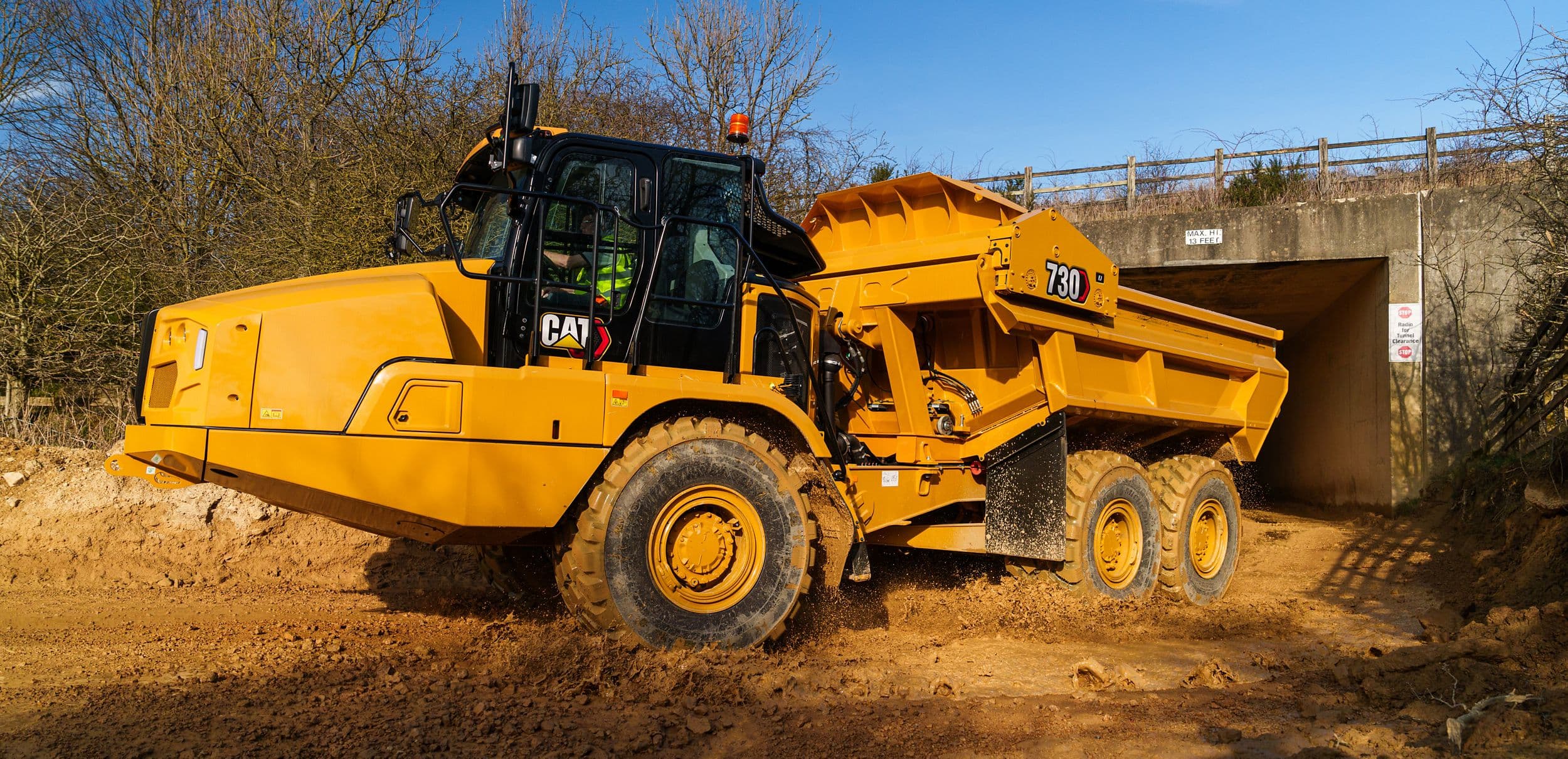

730 EJ Articulated Truck

Name: 730 EJ Articulated Truck
Brand: Caterpillar
SKU: CAT-129800

رقم القطعة: CAT-129800

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

730 EJ Articulated Truck

المواصفات

Engine Model	Cat® C13B
Gross Power (SAE J1995)	269 kW
Rated Payload	27.1 t
Net Power (SAE J1349)	262 kW
Engine Power (ISO 14396)	276 kW
Bore	130 mm
Stroke	157 mm
Displacement	12.5 l
Peak Engine Torque Gross (SAE J1995)	2141 N·m
Peak Engine Torque Speed	1200 r/min
Peak Engine Torque Net (SAE J1349)	2120 N·m
Note (1)	Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	Advertised power is tested at 1,800 rpm.
Lock to Lock	4.75 seconds @ 60 rpm
Note (3)	Net power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed.
Forward - 1	8 km/h
Note (4)	Net power when the fan is at maximum speed is 262 kW (351 hp) per the SAE reference conditions.
Forward - 2	15 km/h
Note (5)	Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014, and Korea Stage V emission standards.
Forward - 3	22 km/h
Note (6)	Diesel exhaust fluid (DEF) used in Cat SCR systems must meet the requirements outlined in ISO 22241-1:2006. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications.
Turning Dimensions - Steer Angle - Left/Right	45°
Forward - 4	34 km/h
Heaped (SAE 2:1)	16.9 m³
No Engine De-rating Below	3810 m
Turning Dimensions - Aisle Width	5424 mm
Turning Dimensions - Clearance Radius	8075 mm
Forward - 5	47 km/h
Struck	13.5 m³
Turning Dimensions - SAE Turning Radius	7470 mm
Turning Dimensions - Inside Radius	3749 mm
Forward - 6	55 km/h
Note	Dimensions are for machines equipped with 750/65 R25 tires.
Reverse - 1	9 km/h
Fuel Tank	400 l
Sound Levels — Note (1)	The declared dynamic operator sound pressure level is 72 ± 2 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained.
Cooling System	83 l
Sound Levels — Note (2)	Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or doors/windows open for extended periods or in noisy environments.
Hydraulic System	123 l
Front Axle - Empty	15130 kg
DEF Tank	34 l
Engine Crankcase	43 l
Center Axle - Empty	5610 kg
Transmission	47 l
Rear Axle - Empty	5370 kg
Output Transfer Gear Box	25 l
Final Drives/Differential	125 l
Total - Empty	26110 kg
Brakes	ISO 3450:2011
Front Axle - Rated Load	650 kg
Cab - FOPS	ISO 3449:2005 Level II
Center Axle - Rated Load	13225 kg
Cab - ROPS	ISO 3471:2008
Rear Axle - Rated Load	13225 kg
Steering	ISO 5010:2019
Total - Rated Load	27100 kg
Model	730 EJ
Front Axle - Loaded	15780 kg
Product Page	https://www.cat.com/en_US/products/new/equipment/articulated-trucks/three-axle-articulated-trucks/129800.html
Center Axle - Loaded	18835 kg
Caterpillar Category	Three Axle Articulated Trucks
Rear Axle - Loaded	18595 kg
Caterpillar Category Path	Products > Equipment > Articulated Trucks > Three Axle Articulated Trucks > 730 EJ
Total - Loaded	53210 kg
Caterpillar Product Family	equipment
Type	High strength Brinell HB450 wear resistant steel
Caterpillar Product Page ID	129800
Datasheet URL	https://s7d2.scene7.com/is/content/Caterpillar/CM20251020-0c1b3-393c9
Eject Time	12 s
Retract Time	15 s
Hydraulic Excavators: 350/352 - Passes	5-Apr
Hydraulic Excavators: 336 - Passes	6-May
Wheel Loaders: 972/972 XE - Passes	4-Mar
Wheel Loaders: 966/966 XE - Passes	4
Wheel Loader: 962 - Passes	5-Apr
Optimal Loader/Truck Pass Matching — Note	An optimum system match gives you a major productivity advantage. The 730 EJ is an excellent match for the Cat 350/352 and 336 Hydraulic Excavators; and Cat 972, 966, 962 and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved.
Wheel Loader: 950 - Passes	5
