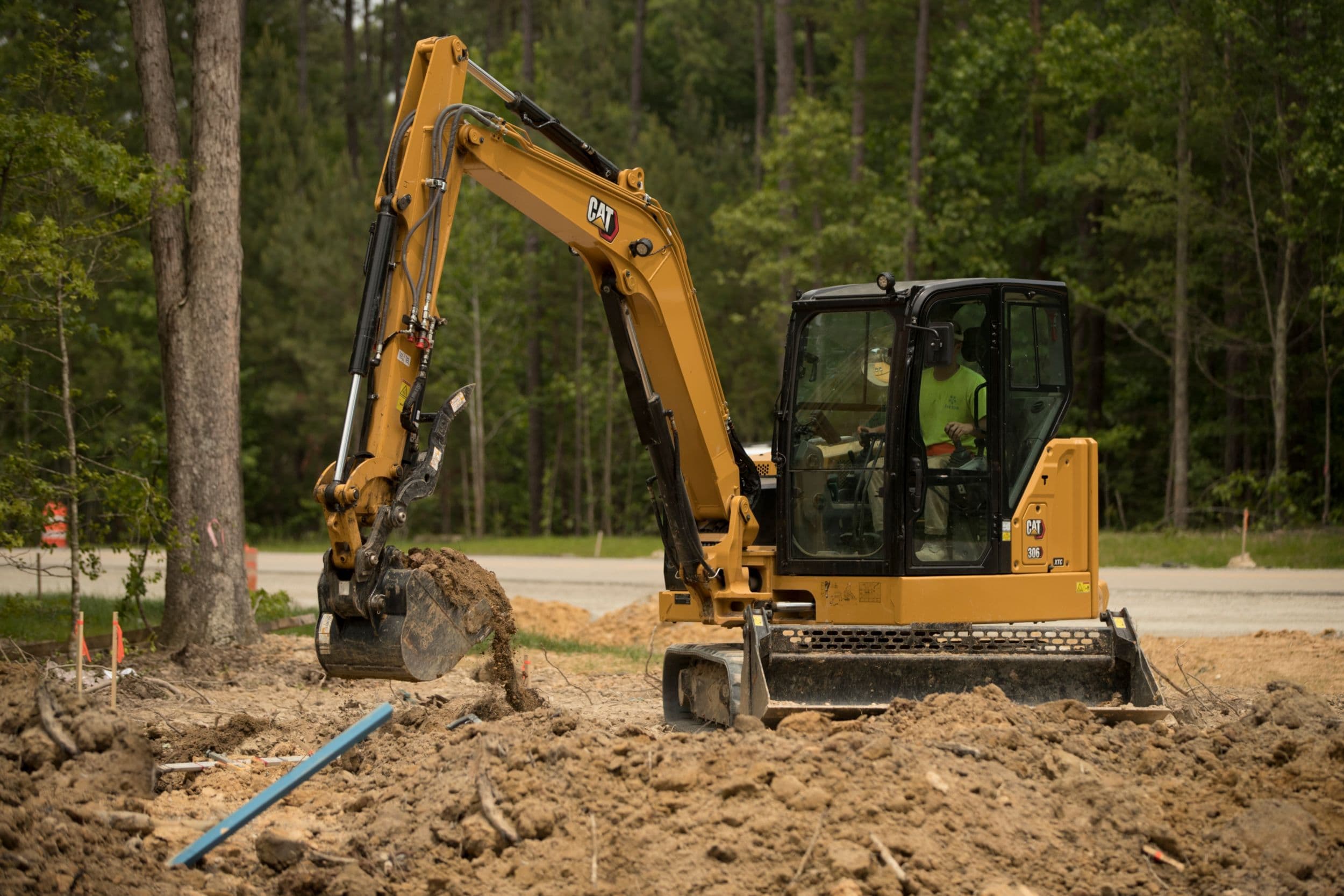

306 CR Mini Hydraulic Excavator

Caterpillar

306 CR Mini Hydraulic Excavator

رقم القطعة: CAT-100084

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

306 CR Mini Hydraulic Excavator

المواصفات

Engine ModelCat C2.4 Turbo
Bore87 mm
Stroke102.4 mm
Displacement2.43 l
Note (1)*Minimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, fixed blade and no bucket.
Note (2)**Maximum Weight is based on steel tracks with pads, extra counterweight, operator, full fuel tank, long stick, fixed blade and no bucket.
Air ConditioningThe air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1287). The system contains 0.9 kg of refrigerant which has a CO2 equivalent of 1.287 metric tonnes.
NoteEuropean Union Directive “2000/14/EC”
Fuel Tank130 l
Cooling System10 l
Hydraulic System104 l
Model306 CR
Product Pagehttps://www.cat.com/en_US/products/new/equipment/excavators/mini-excavators/100084.html
Caterpillar CategoryMini Excavators
Caterpillar Category PathProducts > Equipment > Excavators > Mini Excavators > 306 CR
Caterpillar Product Familyequipment
TypeLoad Sensing Hydraulics with Variable Displacement Piston Pump
Caterpillar Product Page ID100084
Datasheet URLhttps://s7d2.scene7.com/is/content/Caterpillar/CM20190829-9a0fe-30f13
Transport Height2410 mm
Gross Power - ISO 1439643.2 kW
Operating Weight7150 kg
Counterweight250 kg
Dig Depth4110 mm
Recyclability96%
Hydraulic Tank53 l
Engine Oil8 l
Net Power41.7 kW
Minimum Operating Weight with Canopy*6410 kg
Maximum Operating Weight with Canopy**7090 kg
Minimum Operating Weight with Cab*6470 kg
Net Power @ 2,200 rpm - U.S. EPA Tier 4 Final/EU Stage V - ISO 9249/EEC 80/126941.7 kW
Maximum Operating Weight with Cab**7150 kg
Vertical Wall3165 mm
Maximum Blade Height415 mm
Maximum Reach - Ground Level6535 mm
O/A Track Width1980 mm
Maximum Reach6685 mm
Track Belt/Shoe Width400 mm
Maximum Dig Height6130 mm
Tail Swing with Counterweight1475 mm
Maximum Dump Clearance4610 mm
Boom In Reach2960 mm
Maximum Blade Depth600 mm
Tail Swing without Counterweight1350 mm
Stick Length1980 mm
Ground Clearance306 mm
Swing Bearing - Height672 mm
Width over Upper House1950 mm
O/A Undercarriage Length2580 mm
Boom Swing - Right910 mm
O/A Shipping Length5950 mm
Cab Height2545 mm
Boom Swing - Left735 mm
Long Stick44 kg
Steel Tracks with Pads375 kg
Angle Blade102 kg
XTC Carriage (no tool)64 kg
Travel Speed - High5 km/h
Travel Speed - Low2.8 km/h
Ground Pressure - Minimum Weight35.4 kPa
Maximum Traction Force - High Speed31 kN
Ground Pressure - Maximum Weight39.1 kPa
Maximum Traction Force - Low Speed56 kN
Gradeability - Maximum30 degrees
Pump Flow at 2,400 rpm151 L/min
Operating Pressure - Travel24500 kPa
Operating Pressure - Equipment24500 kPa
Auxiliary Circuit - Primary - Flow90 L/min
Operating Pressure - Swing22500 kPa
Digging Force - Bucket51.5 kN
Auxiliary Circuit - Primary - Pressure24500 kPa
Auxiliary Circuit - Secondary - Flow33 L/min
Auxiliary Circuit - Secondary - Pressure24500 kPa
Digging Force - Stick - Standard29.5 kN
Digging Force - Stick - Long26.5 kN
Machine Swing Speed11 r/min
Swing System — Boom Swing - Left60 degrees
Swing System — Boom Swing - Right65 degrees
Roll Over Protective Structure (ROPS)ISO 12117-2:2008
Straight Blade Width1980 mm
Tip Over Protective Structure (TOPS)ISO 12117:1997
Angle Blade Width1980 mm
Straight Blade Height390 mm
Top GuardISO 10262:1998 (Level II)
Angle Blade Height400 mm
Dimensions - Standard Stick — Dig Depth3710 mm
Operator Sound Pressure (ISO 6396:2008)72 dB(A)
Dimensions - Standard Stick — Vertical Wall2710 mm
Average Exterior Sound Pressure (ISO 6395:2008)99 dB(A)
Dimensions - Standard Stick — Maximum Reach - Ground Level6130 mm
Dimensions - Standard Stick — Maximum Reach6295 mm
Dimensions - Standard Stick — Stick Length1580 mm
Dimensions - Standard Stick — Maximum Dig Height5835 mm
Dimensions - Standard Stick — Maximum Dump Clearance4325 mm
Dimensions - Standard Stick — Boom In Reach2485 mm
Dimensions - Standard Stick — Transport Height1755 mm
Dimensions - Standard Stick — O/A Shipping Length5975 mm
