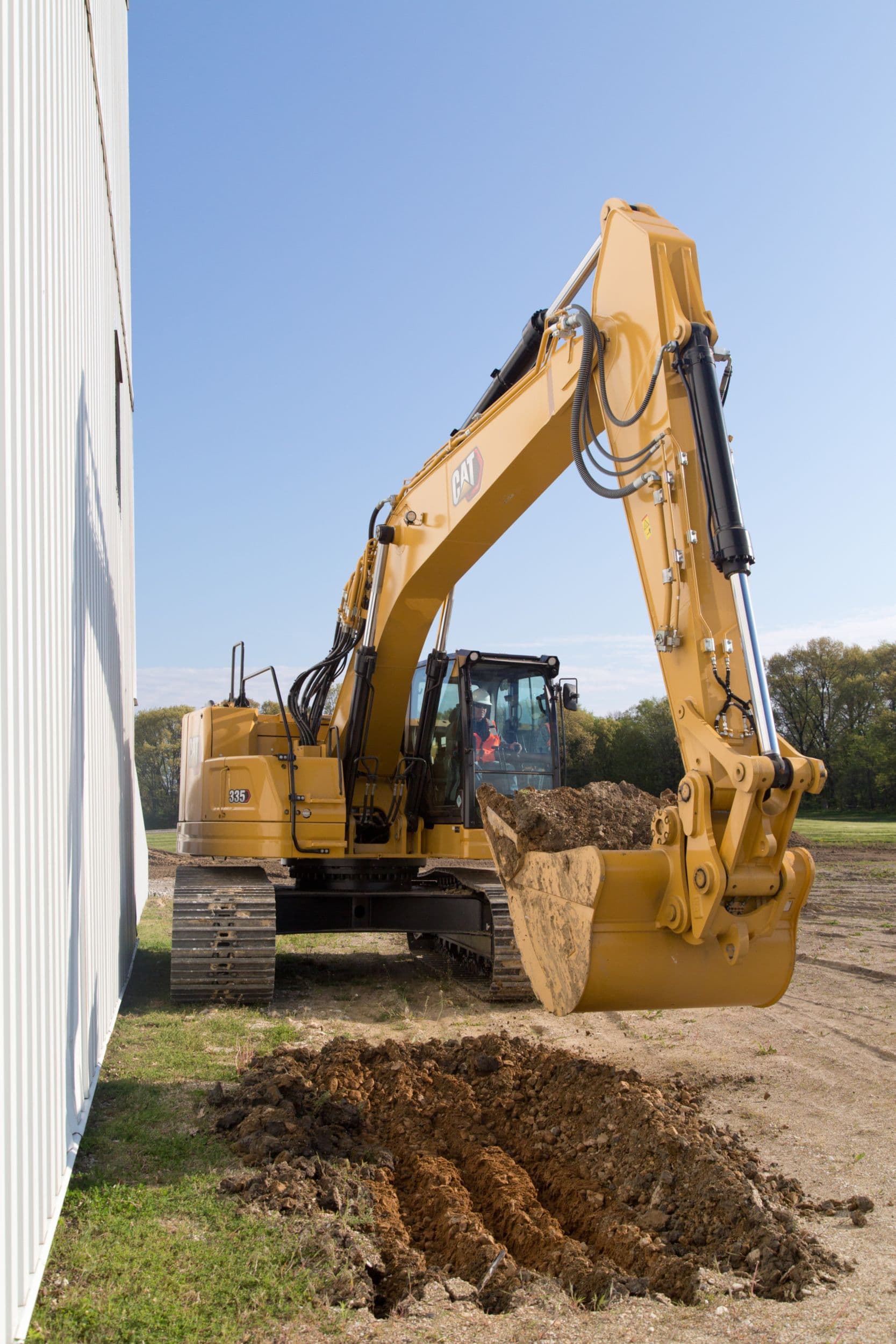

335 Hydraulic Excavator

Caterpillar

335 Hydraulic Excavator

رقم القطعة: CAT-126502

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

335 Hydraulic Excavator

المواصفات

Engine ModelCat® C7.1
Bore105 mm
Stroke135 mm
Displacement7.01 l
Note (1)Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. ***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
Air ConditioningThe air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 0.9 kg (1.98lb) of refrigerant which has a CO2 equivalent of 1.287 metric tonnes (1.418 tons). If equipped with R1234yf (Global Warming Potential = 0.5), the system contains 0.8 kg (1.8 lb) of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons).
NoteLong undercarriage Reach boom, R3.2 (10'6") stick, Heavy Duty (HD) 1.54 m³ (2.01 yd³) bucket, 600 mm (24") triple grouser shoes, 5000 kg (11,202 lb) counterweight and 3440 mm (11'3") blade.
Cooling System13 l
DEF Tank26 l
Final Drive - Each7 l
Model335
Product Pagehttps://www.cat.com/en_US/products/new/equipment/excavators/medium-excavators/126502.html
Caterpillar CategoryMedium Excavators
Caterpillar Category PathProducts > Equipment > Excavators > Medium Excavators > 335
Caterpillar Product Familyequipment
Caterpillar Product Page ID126502
Datasheet URLhttps://s7d2.scene7.com/is/content/Caterpillar/CM20241118-c9471-5ac3d
Transport Width3340 mm
Fuel Tank Capacity368 l
EmissionsMeets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Operating Weight34900 kg
Recyclability98%
Hydraulic Tank154 l
Engine Oil25 l
Ground Clearance480 mm
Tail Swing Radius1900 mm
Net Power - ISO 9249203.7 kW
Maximum Reach at Ground Level10640 mm
Net Power - ISO 9249 (DIN)277 hp (metric)
Engine Power - ISO 14396205 kW
Engine Power - ISO 14396 (DIN)279 hp (metric)
Biodiesel CapabilityUp to B20¹
Maximum Digging Depth6990 mm
BoomReach 6.15 m (20'2")
StickReach 3.2 m (10'6")
BucketHD 1.54 m³ (2.01 yd³)
Maximum Cutting Height11150 mm
Maximum Loading Height7960 mm
Minimum Loading Height2910 mm
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom6840 mm
Maximum Vertical Wall Digging Depth5790 mm
Bucket Digging Force - ISO207 kN
Stick Digging Force - ISO144 kN
Main System - Maximum Flow560 l/min (148 gal/min)
Maximum Pressure - Equipment35000 kPa
Maximum Pressure - Travel35000 kPa
Maximum Pressure - Swing28800 kPa
Swing Speed10.8 r/min
Maximum Swing Torque107.7 kN·m
Swing Mechanism — Note (1)*For CE-marked machine default value may be set lower.
Hydraulic System - Including Tank350 l
Shipping Height - Top of Cab3270 mm
Handrail Height3430 mm
Shipping Length9830 mm
Counterweight Clearance1170 mm
Track Length5030 mm
Length to Center of Rollers4040 mm
Track Gauge2740 mm
Maximum Pressure - Equipment - Lift Mode38000 kPa
Swing Drive11 l
