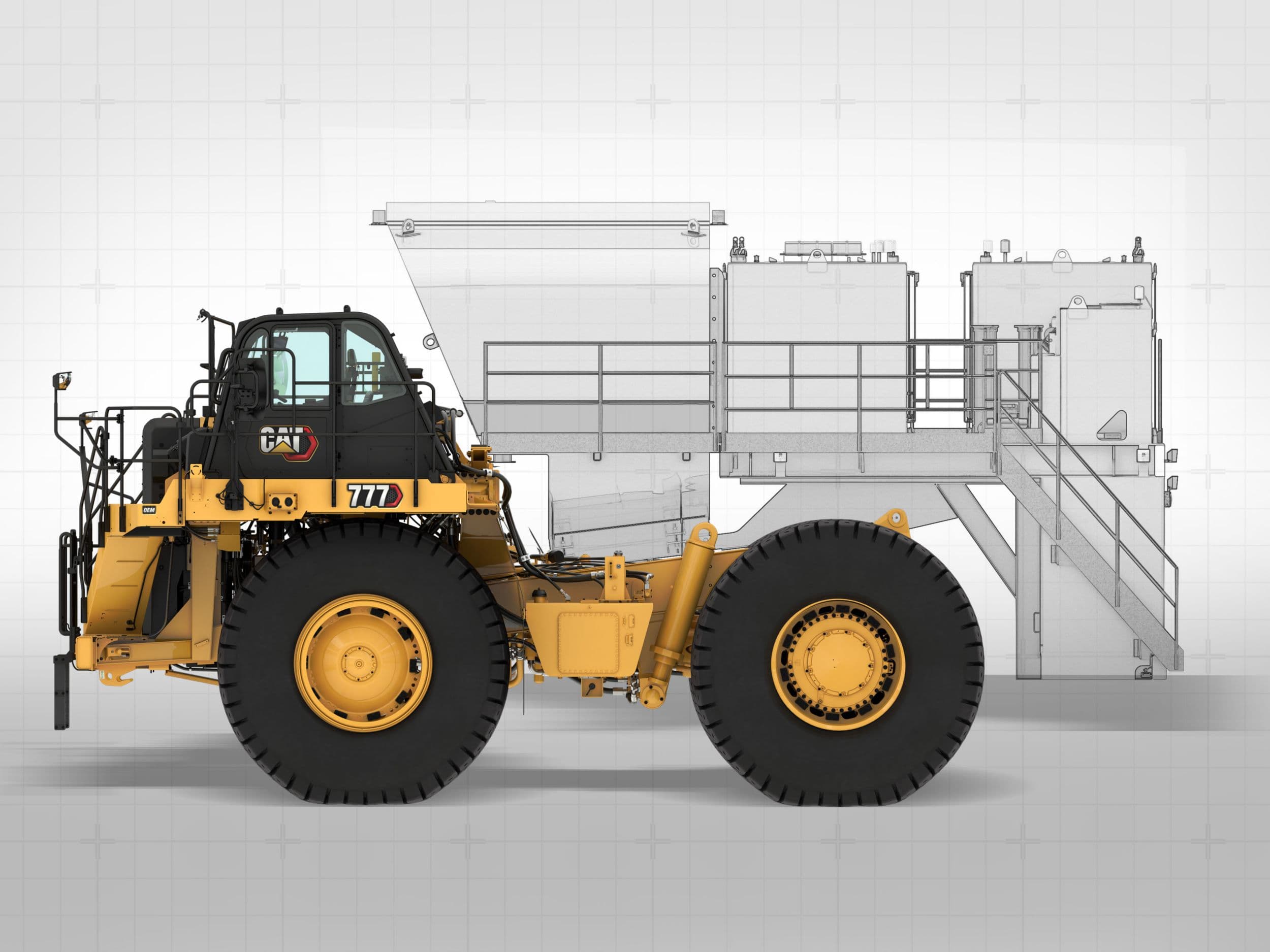

777 Off-Highway Truck bare chassis

Caterpillar

777 Off-Highway Truck bare chassis

رقم القطعة: CAT-1000005261

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

777 Off-Highway Truck bare chassis

المواصفات

Engine ModelCat® C32B
Bore145 mm
Stroke162 mm
Displacement32.1 l
Forward - 110.7 km/h
Forward - 214.6 km/h
Forward - 319.2 km/h
Forward - 426.7 km/h
Forward - 536.2 km/h
Forward - 648.6 km/h
NoteLRC model is offered for lesser regulated countries. HRC model is offered for highly regulated countries. Available as Tier 4 Final/Stage V equivalent or Tier 2/Stage II equivalent emission standards.
Forward - 765.9 km/h
Cooling System240 l
Model777 (07) Bare Chassis
Product Pagehttps://www.cat.com/en_US/products/new/equipment/off-highway-trucks/off-highway-trucks-bare-chassis/1000005261.html
Caterpillar CategoryOff-Highway Trucks Bare Chassis
Caterpillar Category PathProducts > Equipment > Off-Highway Trucks > Off-Highway Trucks Bare Chassis > 777 (07) Bare Chassis
Caterpillar Product Familyequipment
Caterpillar Product Page ID1000005261
Datasheet URLhttps://s7d2.scene7.com/is/content/Caterpillar/CM20220523-f3e1b-b8388
Fuel Tank Capacity1136 l
Engine — NoteNet Power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator with engine speed at 1,800 rpm.
Gross Power - SAE J1995765 kW
Number of Cylinders12
Brake Surface - Front40846 cm²
Brake Surface - Rear102116 cm²
Crankcase109 l
Steer Angle30.5 °
Steering StandardsISO 5010:2007
Steering System - Including Tank53.6 l
Turning Circle - Clearance Diameter28.4 m
Brake Hoist System322 l
Torque Converter - Transmission System138.5 l
Reverse12.1 km/h
Rated Engine Speed1800 r/min
LRC Bare Chassis Weight without Hoist50578 kg
LRC Bare Chassis Weight with Hoist51740 kg
LRC Gross Vehicle Weight (Target) without Hoist164654 kg
LRC Gross Vehicle Weight (Target) with Hoist164654 kg
HRC Bare Chassis Weight without Hoist51100 kg
Brake/Hoist Hydraulic Tank444 l
HRC Bare Chassis Weight with Hoist52262 kg
HRC Gross Vehicle Weight (Target) with Hoist164654 kg
HRC Gross Vehicle Weight (Target) without Hoist164654 kg
Tractor ROPS60365 kg
Nominal Water Tank Capacity75700 l
Rated Net Power - SAE J1349683 kW
Turning Diameter25.3 m
