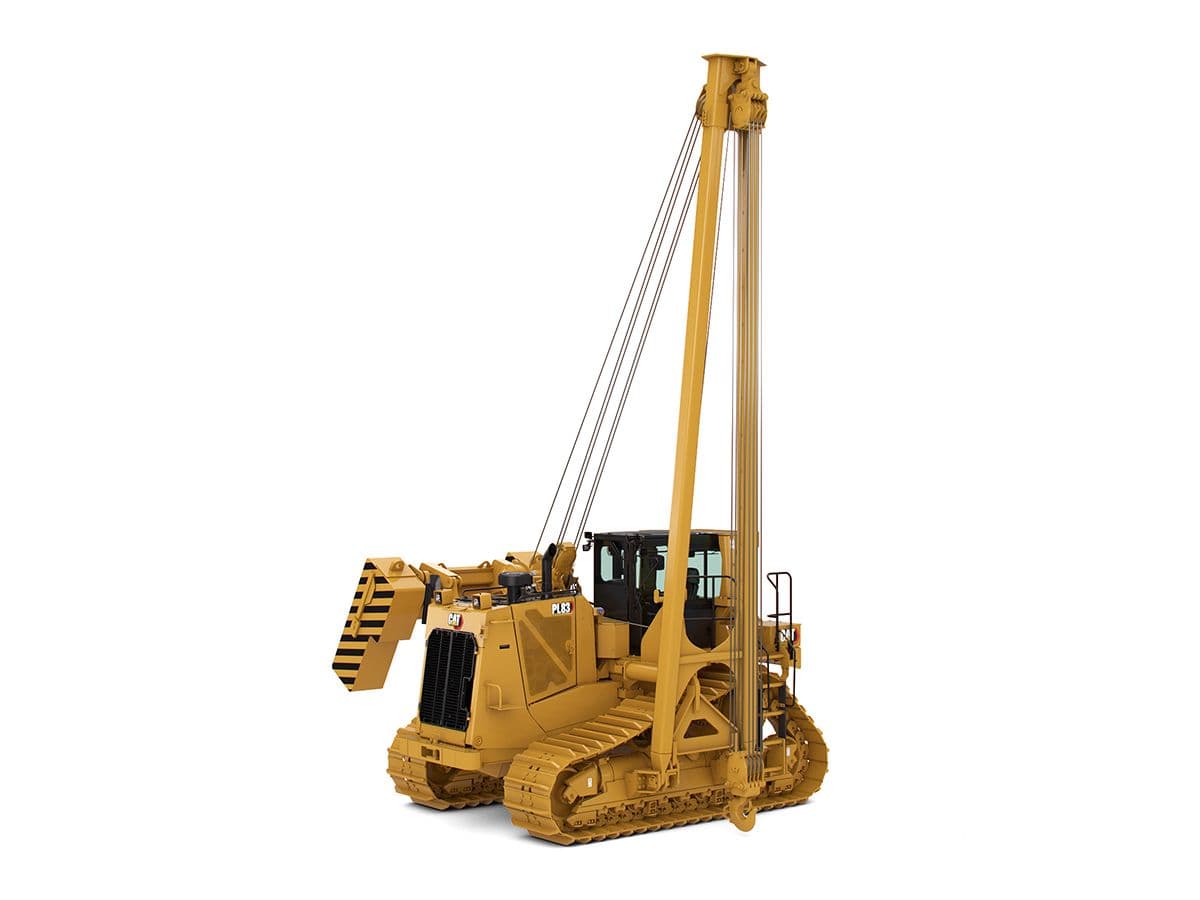

PL83 Pipelayer

Caterpillar

PL83 Pipelayer

رقم القطعة: CAT-1000004496

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

PL83 Pipelayer

المواصفات

Engine ModelCat C15
Note (2)**Rated speed 1,900 rpm. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator. Net power is tested per ISO 9249:2007 and SAE J1349:2011.
Note (4)****Rated speed 1,850 rpm. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator. Net power is tested per ISO 9249:2007 and SAE J1349:2011.
Air ConditioningThe air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.5 kg of refrigerant which has a CO2 equivalent of 3.575 metric tonnes.
Fuel Tank415 l
ModelPL83
Product Pagehttps://www.cat.com/en_US/products/new/equipment/pipelayers/pipelayers/1000004496.html
Caterpillar CategoryPipelayers
Caterpillar Category PathProducts > Equipment > Pipelayers > Pipelayers > PL83
Caterpillar Product Familyequipment
Caterpillar Product Page ID1000004496
Datasheet URLhttps://s7d2.scene7.com/is/content/Caterpillar/CM20150702-38916-50106
EmissionsU.S. EPA Tier 4 Final/EU Stage V/Korea Tier 4 Final or UN ECE R96 Stage IIIA equivalent to U.S. EPA Tier 3/EU Stage IIIA
Operating Weight49442 kg
Track Gauge2.34 m
Flywheel Power238 kW
Tier 4 Final/Stage V: Net Power (Rated Speed**) - ISO 9249/SAE J1349238 kW
Tier 4 Final/Stage V: Net Power (Rated Speed**) - ISO 9249/SAE J1349 (DIN)323 mhp
Tier 3/Stage IIIA Equivalent: Net Power (Rated Speed****) - ISO 9249/SAE J1349 (DIN)333 mhp
Tier 3/Stage IIIA Equivalent: Net Power (Rated Speed****) - ISO 9249/SAE J1349245 kW
DEF Tank(1)17 l
Lift Capacity77111 kg
Shipping Weight38955 kg
Removable Counterweight (10 plates) Single Plate774.6 kg
Total Removable Counterweight*7746 kg
Length - Track on Ground3.72 m
Ground Contact Area5.3 m²
Width - Standard Shoes710 mm
Width - Tractor - Standard Shoes3.25 m
Width - Tractor - Counterweight Extended6.07 m
Width - Tractor - Counterweight Retracted4.11 m
Width - Tractor - Counterweight/Boom Removed3.86 m
Machine Height - Top of Counterweight3.4 m
Height - Machine - Cab and ROPS3.53 m
Boom Height (at SAE 1.22 m [4 ft] Overhang) 6.1 m (20 ft) Boom6.78 m
Boom Height (at SAE 1.22 m [4 ft] Overhang) 7.3 m (24 ft) Boom8.02 m
Boom Height (at SAE 1.22 m [4 ft] Overhang) 8.5 m (28 ft) Boom9.25 m
