Caterpillar

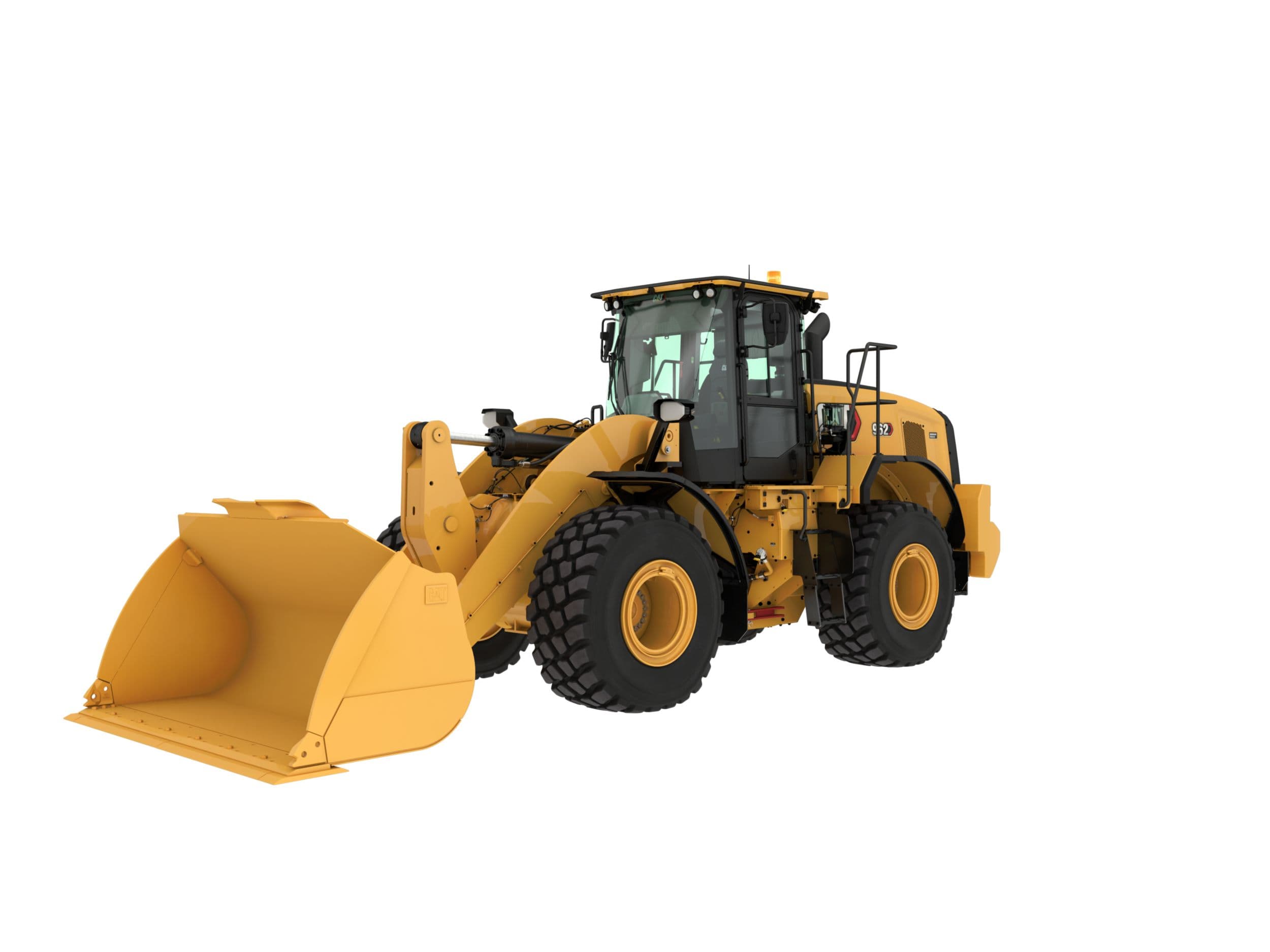

962 Wheel Loader

Name: 962 Wheel Loader
Brand: Caterpillar
SKU: CAT-130309

رقم القطعة: CAT-130309

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

962 Wheel Loader

المواصفات

Engine Model	Cat® C7.1
Displacement	7.01 l
Note (1)	The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and aftertreatment.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuelsup to: 20% biodiesel FAME (fatty acid methyl ester) 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or "Caterpillar Machine Fluids Recommendations" (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
Forward - 1	6.9 km/h
Forward - 2	12 km/h
Forward - 3	19.3 km/h
Forward - 4	25.7 km/h
Forward - 5	39.5 km/h
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.600 kg (3.5 lb) of refrigerant, which has a CO2 equivalent of 2.288 metric tonnes (2.522 tons). - If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 1.389 kg (3.1 lb) of refrigerant, which has a CO2 equivalent of .001 metric tonnes (1.10 tons).
Note	Weight based on a machine configuration with parallel lift Z-bar linkage, Bridgestone 23.5R25 VJT L3 radial tires, full fluids, operator, standard counterweight, ride control, cold start, roading fenders, Product Link™, front manual differential/open rear axles, powertrain guard, secondary steering, sound suppression, and a 3.3 m³ (4.3 yd³) general purpose bucket with BOCE.
Reverse - 1	6.9 km/h
Fuel Tank	259.5 l
Cooling System	54 l
Reverse - 2	12 km/h
DEF Tank	15 l
Transmission	43 l
Model	962
Product Page	https://www.cat.com/en_US/products/new/equipment/wheel-loaders/medium-wheel-loaders/130309.html
Caterpillar Category	Medium Wheel Loaders
Caterpillar Category Path	Products > Equipment > Wheel Loaders > Medium Wheel Loaders > 962
Caterpillar Product Family	equipment
Caterpillar Product Page ID	130309
Datasheet URL	https://s7d2.scene7.com/is/content/Caterpillar/CM20251201-aad5b-22955
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Operating Weight	20171 kg
Breakout Force	189 kN
Transmission — Note	Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 787 mm (31 in) roll radius.
Hydraulic Tank	97 l
Ground Clearance	351 mm
Biodiesel Capability	Up to B20¹
Wheel Base	3350 mm
Operating Specifications — Note (2)	Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Crankcase	21 l
Height - Top of ROPS	3453 mm
Operating Specifications — Note (1)	For a machine configuration as defined under “Weight.”
Reverse - 3	25.7 km/h
Hinge Pin Height at Maximum Lift	4223 mm
Engine Power - 2,100 rpm ISO 14396:2002	201 kW
Engine — Engine Power - 2,100 rpm ISO 14396:2002	273 hp (metric)
Gross Power - 2,100 rpm SAE J1995:2014	203 hp
Engine — Gross Power - 2,100 rpm SAE J1995:2014	277 hp (metric)
Net Power - 2,100 rpm ISO 9249:2007, SAE J1349:2011	255 hp (metric)
Operator Sound Pressure Level - ISO 6396:2008	70 dB(A)
Sound — Note (1)	¹Including countries that adopt the EU and UK Directives.
Exterior Sound Power Level - ISO 6395:2008	104 dB(A)
Differential - Final Drives - Rear	43 l
Operator Sound Pressure Level - ISO 6396:2008 ¹	69 dB(A)
Differential - Final Drives - Front	43 l
Sound — Note (2)	²Exterior Sound Power Level - European Union Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701.
Static Tipping Load - Full 40° Turn - With Tire Deflection	11734 kg
Static Tipping Load - Full 40° Turn - No Tire Deflection	12487 kg
Implement System - Maximum Pump Output at 2,340 rpm	322 L/min
Implement System - Maximum Operating Pressure	29300 kPa
Hydraulic Cycle Time - Total	9.4 s
Height - Top of Hood	2692 mm
Overall Length - Without Bucket	7263 mm
Hinge Pin Height at Carry Height	674 mm
Lift Arm Clearance at Maximum Lift	3459 mm
Rack Back - Maximum Lift	55 °
Rack Back - Carry Height	51 °
Width over Tires (Loaded)	2825 mm
Tread Width	2140 mm
Dimensions - Standard Lift — Note	All dimensions are approximate and based on machine equipped with 3.3 m³ (4.3 yd³) general purpose bucket with BOCE and Bridgestone 23.5R25 VJT L3 radial tires.
Dimensions - High Lift — Overall Length - Without Bucket	7657 mm
Dimensions - High Lift — Hinge Pin Height at Carry Height	776 mm
Dimensions - High Lift — Hinge Pin Height at Maximum Lift	4511 mm
Dimensions - High Lift — Lift Arm Clearance at Maximum Lift	3612 mm
Dimensions - High Lift — Rack Back - Maximum Lift	56 °
Dimensions - High Lift — Note	All dimensions are approximate and based on machine equipped with 3.3 m³ (4.3 yd³) general purpose bucket with BOCE and Bridgestone 23.5R25 VJT L3 radial tires.
Engine Power - 2,100 rpm ISO 14396:2002 (2)	273 hp (metric)
Engine Torque - 1,400 rpm ISO 14396:2002	1245 N·m
Gross Torque - 1,400 rpm SAE J1995:2014	1256 hp
Net Torque - 1,400 rpm ISO 9249:2007, SAE J1349:2011	1176 N·m
Dimensions - High Lift — Rack Back - Carry Height	48 °
