Caterpillar

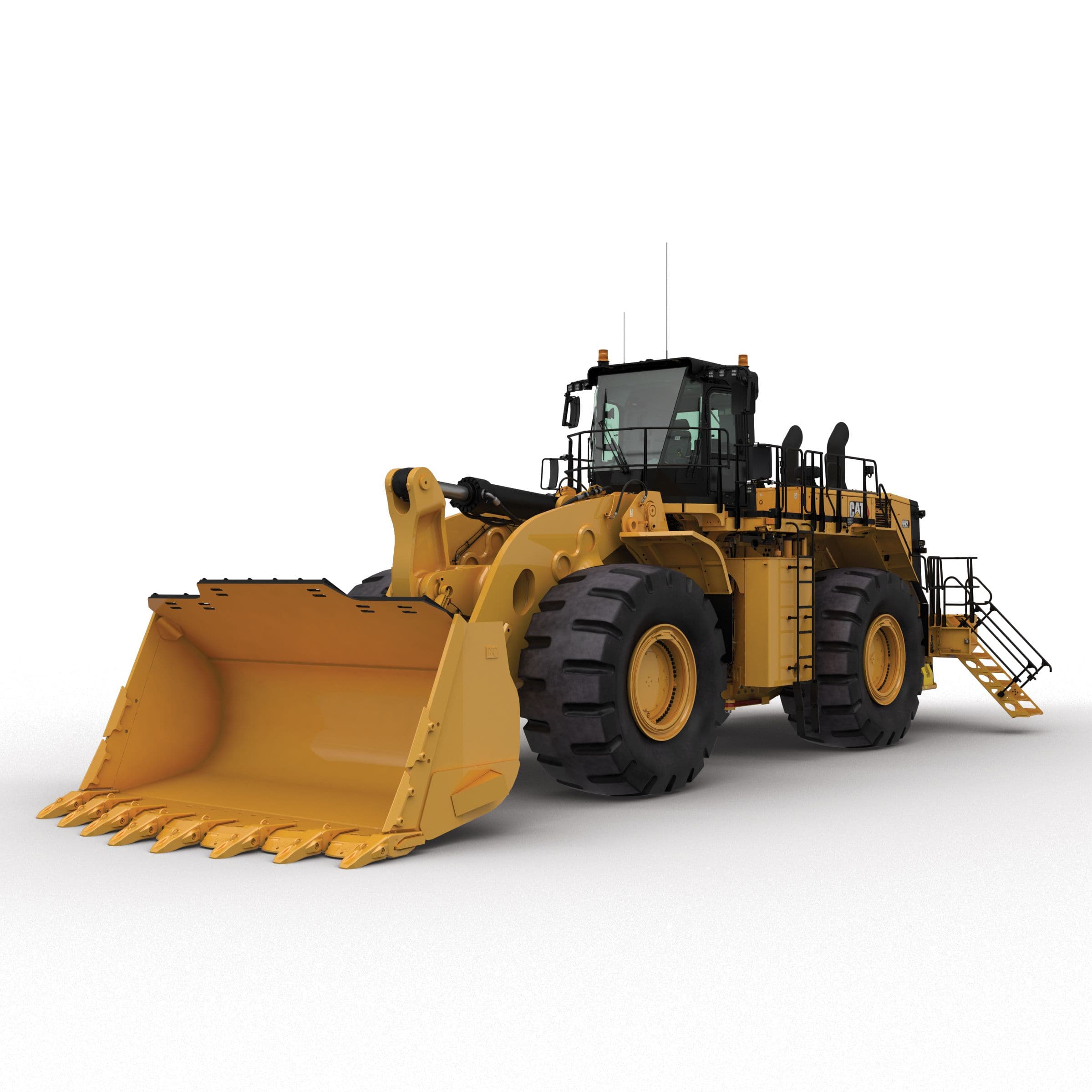

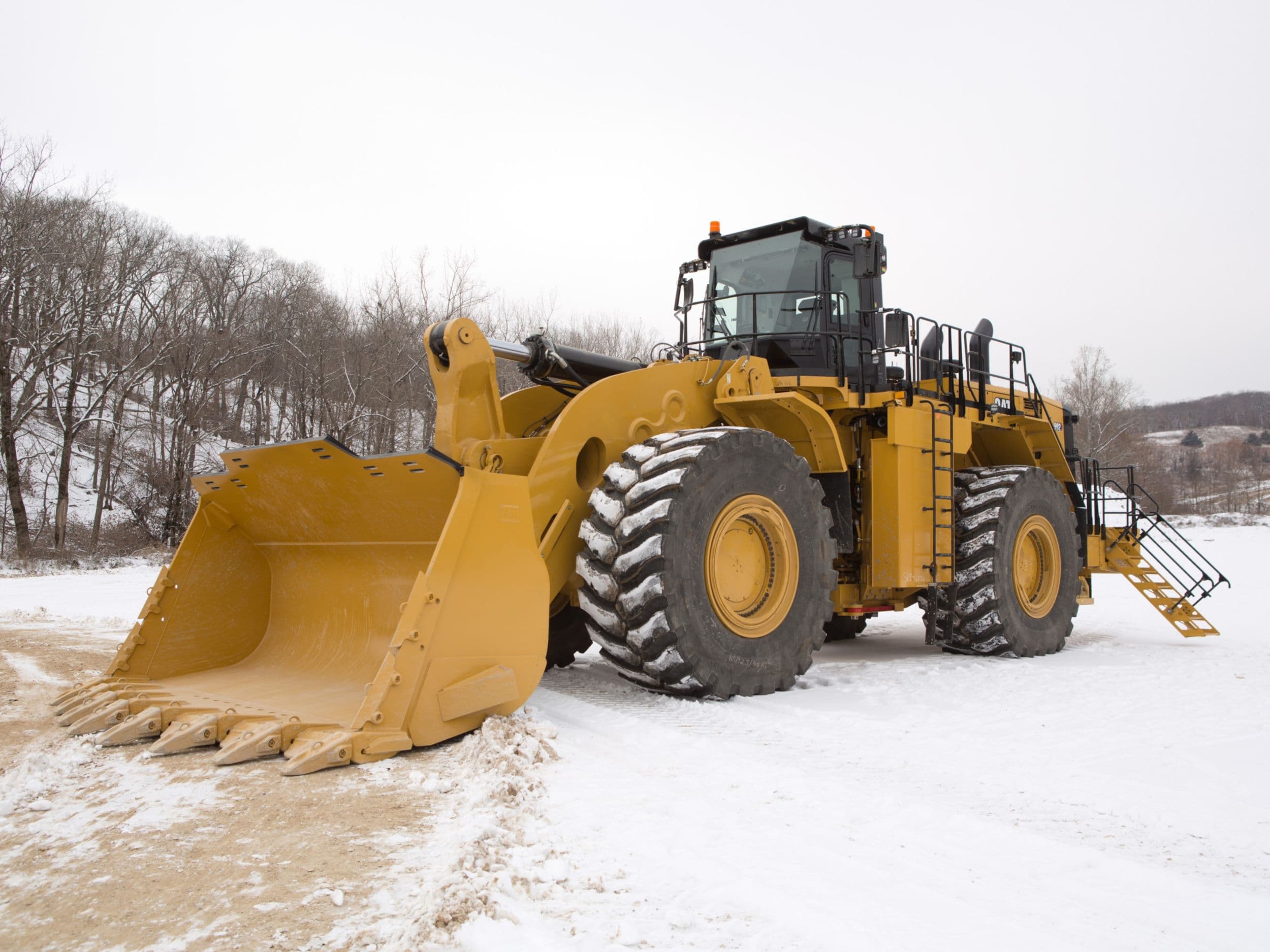

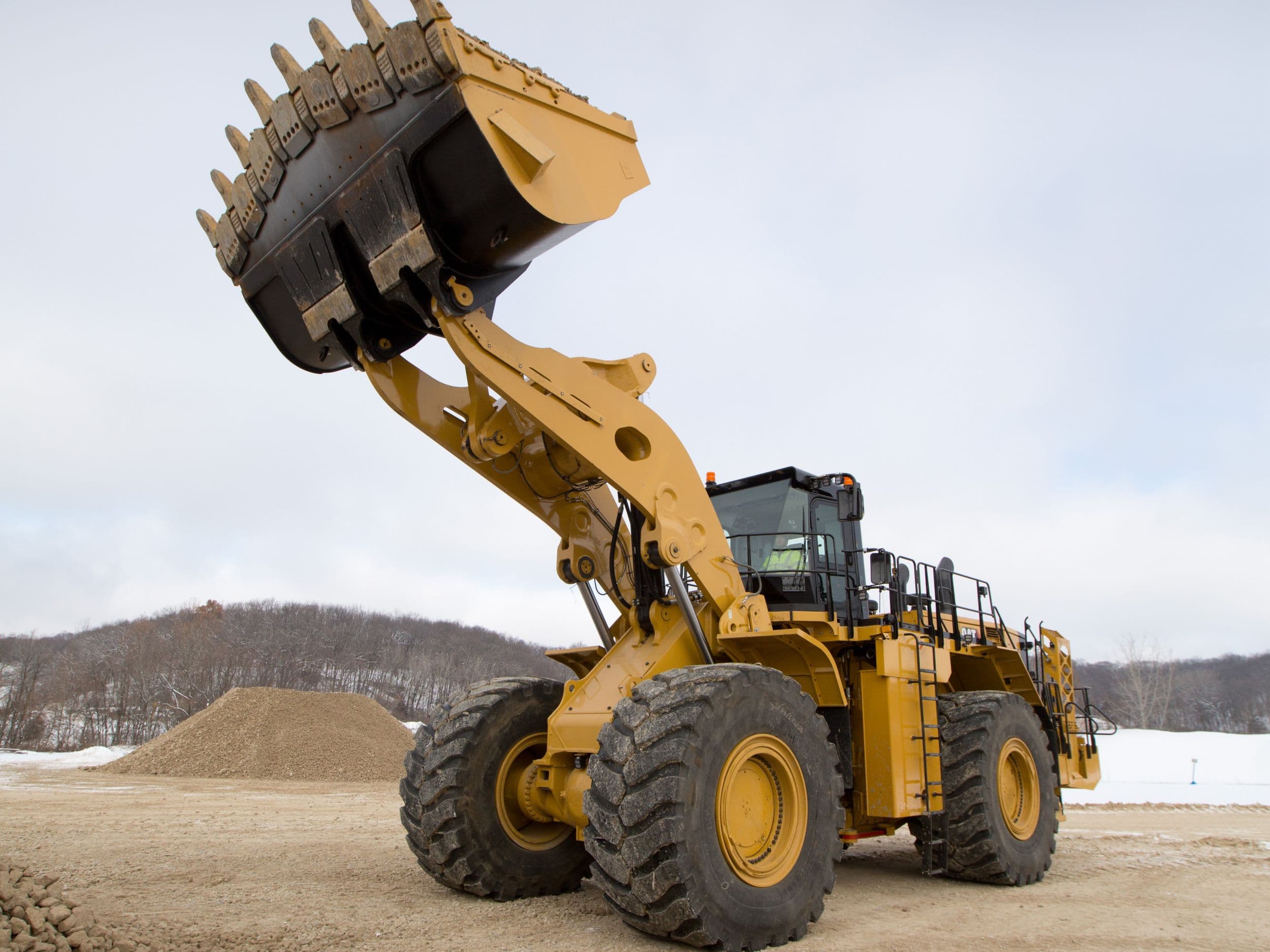

992 Wheel Loader

Name: 992 Wheel Loader
Brand: Caterpillar
SKU: CAT-108700

رقم القطعة: CAT-108700

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

992 Wheel Loader

المواصفات

Engine Model	Cat® C32B
Bore	145 mm
Stroke	162 mm
Displacement	32.1 l
Forward - 1	7 km/h
Forward - 2	11.9 km/h
Forward - 3	20.5 km/h
Note	Machine Sound Level (ISO 6396:2008) - 116 dB(A)
Reverse - 1	7.5 km/h
Fuel Tank	1460 l
Reverse - 2	13 km/h
Transmission	195 l
Brakes	ISO 3450:2011
Model	992
Product Page	https://www.cat.com/en_US/products/new/equipment/wheel-loaders/large-wheel-loaders/108700.html
Caterpillar Category	Large Wheel Loaders
Caterpillar Category Path	Products > Equipment > Wheel Loaders > Large Wheel Loaders > 992
Caterpillar Product Family	equipment
Caterpillar Product Page ID	108700
Datasheet URL	https://s7d2.scene7.com/is/content/Caterpillar/CM20210218-b797d-b6aab
Front	Fixed
Emissions	U.S. EPA Tier 4 Final, U.S. EPA Tier 2 Equivalent
Operating Weight	105882 kg
Net Power	607 kW
Rated Speed	1750 rpm
Wheel Base	5890 mm
Crankcase	120 l
Cooling Systems	225 l
Reverse - 3	22.4 km/h
Raise	9 s
Dump	2.6 s
Bucket Capacities	11.5-24.5 m³ (15-32 yd³)
Lift/Tilt System - Circuit	Positive Flow Control
Lift/Tilt System - Pump	Variable Displacement Piston
Transmission Type	Cat Planetary Powershift
Lift Cylinder - Bore	235 mm
Lift Cylinder - Stroke	1613 mm
Tilt Cylinder - Bore	292 mm
Tilt Cylinder - Stroke	1055 mm
Rear	Trunnion
Differential - Final Drives - Rear	365 l
Differential - Final Drives - Front	365 l
Tread Width	3302 mm
Gross Power - SAE J1995 at 1,750 rpm - Tier 4/HRC (Highly Regulated Country) - Standard	671 kW
Gross Power - SAE J1995 at 1,750 rpm - Tier 4/HRC - High Ambient	699 kW
Gross Power - SAE J1995 at 1,750 rpm - Tier 2/LRC (Less Regulated Country) - Standard	676 kW
Bucket Capacity Range	11.5-24.5 m³ (15-32 yd³)
Gross Power - SAE J1995 at 1,750 rpm - Tier 2/LRC - High Ambient	704 kW
Gross Power - ISO 14396 at 1,750 rpm - Tier 4/HRC - Standard	659 kW
Cat Truck Match - High Lift	785
Gross Power - ISO 14396 at 1,750 rpm - Tier 4/HRC - High Ambient	687 kW
Direct Drive - Forward 1	Disabled
Gross Power - ISO 14396 at 1,750 rpm - Tier 2/LRC - Standard	666 kW
Cat Truck Match - Standard	775/777
Direct Drive - Forward 2	12.9 km/h
Gross Power - ISO 14396 at 1,750 rpm - Tier 2/LRC - High Ambient	694 kW
Direct Drive - Forward 3	22.6 km/h
Net Power - SAE J1349 at 1,750 rpm - Tier 4/HRC - Standard	607 kW
Direct Drive - Reverse 1	8 km/h
Net Power - SAE J1349 at 1,750 rpm - Tier 4/HRC - High Ambient	607 kW
Direct Drive - Reverse 2	14.2 km/h
Rated Payload - High Lift	20.4 t
Net Power - SAE J1349 at 1,750 rpm - Tier 2/LRC - Standard	614 kW
Direct Drive - Reverse 3	24.7 km/h
Net Power - SAE J1349 at 1,750 rpm - Tier 2/LRC - High Ambient	614 kW
Peak Torque - SAE J1995 - Tier 4/HRC - Standard @ 1,200 rpm	4765 N·m
Relief Valve Setting - Lift/Tilt	34500 kPa
Maximum Flow at 2,165 rpm	950 L/min
Peak Torque - SAE J1995 - Tier 4/HRC - High Ambient @ 1,300 rpm	4820 N·m
Rated Payload - Standard	23.1 t
Rack Back	2.3 s
Peak Torque - SAE J1995 - Tier 2/LRC - Standard @ 1,200 rpm	4796 N·m
Peak Torque - SAE J1995 - Tier 2/LRC - High Ambient @ 1,350 rpm	4841 N·m
Total Hydraulic Cycle Time	17.1 s
Rated Payload - Standard (Material Handler)	27.2 t
Steering System - Circuit	Pilot, Load Sensing
Rated Payload - High Lift (Material Handler)	24.5 t
Steering System - Pump	Piston, Variable Displacement
Rack Back - High Lift	2.3 s
Raise - High Lift	9 s
Total Steering Angle	80°
Steering Cut Off Pressure	31000 kPa
Dump - High Lift	2.6 s
Oscillation Angle	±9°
Steering Cycle Times - High Idle	3.1 s
Float Down	3.2 s
Steering Cycle Times - Low Idle	4.9 s
Ambient Capability Hydraulically Driven Demand Fan - Standard	43 °C
Float Down - High Lift	3.2 s
Hydraulic System Factory Fill (Implement)	394 l
Hydraulic Tank - Implement	228 l
Hydraulic Factory Fill (Steering)	123 l
Ground to Top of ROPS	5571 mm
Hydraulic Tank (Steering Tank Only)	99.5 l
Ground to Top of Exhaust Stacks	5169 mm
Maximum Flow at 1,400-1,850 rpm	265 L/min
Ground to Top of Hood	3983 mm
Ambient Capability, Hydraulically Driven Demand Fan - High	55 °C
Ground to Bumper Clearance	1145 mm
Sound Performance - Suppression — Note	Machine Sound Level (ISO 6396:2008) - 113 dB(A)
Rear Axle - Centerline to Bumper	4119 mm
Ground to Center of Front Axle	1308 mm
Front Axle Centerline to Bucket Tip	5480 mm
Maximum Overall Length	15489 mm
Ground to Lower Hitch Clearance	666 mm
Clearance at Maximum Lift	4630 mm
Reach - Maximum Lift	2503 mm
B-Pin Height - Maximum Lift	6948 mm
Maximum Overall Height - Bucket Raised	9390 mm
Rack Back Angle - Maximum Lift	56.9 degrees
Dump Angle at Maximum Lift	-49.5 degrees
Rack Back Angle - Ground Level	40.2 degrees
Width - Over Tires - With Bulge	4493 mm
Rack Back Angle - Carry	48.9 degrees
Dimensions - High Lift - Approximate — Rack Back Angle - Ground Level	42.5 degrees
Dimensions - High Lift - Approximate — Dump Angle at Maximum Lift	-48.1 degrees
Dimensions - High Lift - Approximate — Rack Back Angle - Maximum Lift	56.2 degrees
Dimensions - High Lift - Approximate — Width - Over Tires - With Bulge	4495 mm
Dimensions - High Lift - Approximate — Rack Back Angle - Carry	51.6 degrees
Dimensions - High Lift - Approximate — Reach - Maximum Lift	2319 mm
Dimensions - High Lift - Approximate — Clearance at Maximum Lift	5256 mm
Dimensions - High Lift - Approximate — B-Pin Height - Maximum Lift	7465 mm
Dimensions - High Lift - Approximate — Maximum Overall Height - Bucket Raised	9759 mm
Dimensions - High Lift - Approximate — Maximum Overall Length	15733 mm
Dimensions - High Lift - Approximate — Front Axle Centerline to Bucket Tip	5724 mm
