Caterpillar

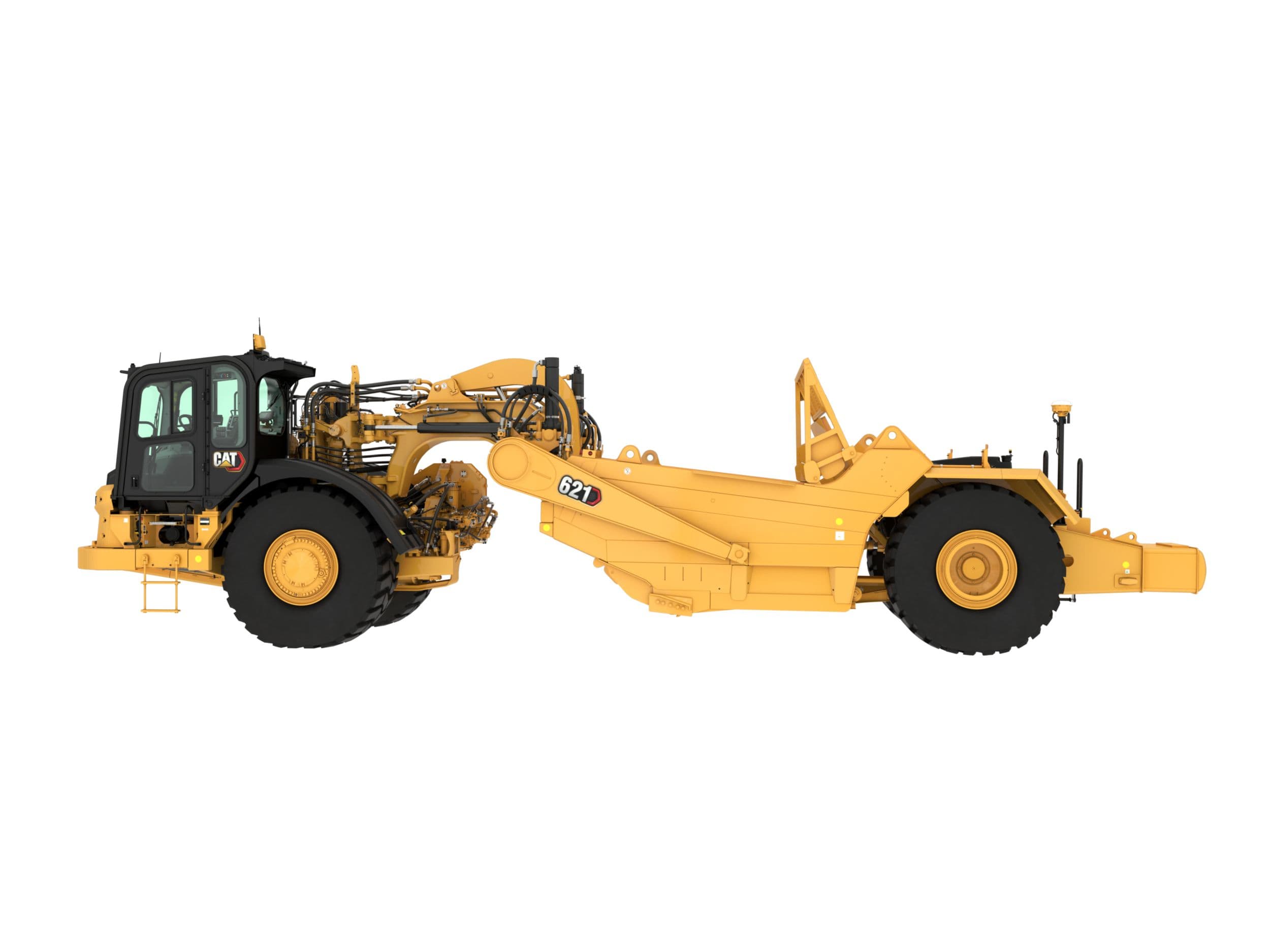

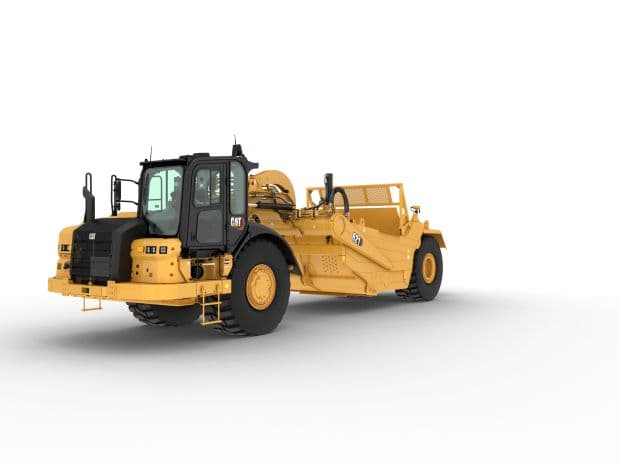

621 Wheel Tractor-Scraper

Name: 621 Wheel Tractor-Scraper
Brand: Caterpillar
SKU: CAT-125862

رقم القطعة: CAT-125862

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

621 Wheel Tractor-Scraper

المواصفات

Note	Cat® C13 engine meets U.S. Environmental Protection Agency (EPA) Tier 4 Final/EU Stage IV engine emission standards.
Fuel Tank	818 l
Cooling System	45 l
Hydraulic System	83 l
Brakes	ISO 3450:1996
Model	621
Product Page	https://www.cat.com/en_US/products/new/equipment/wheel-tractor-scrapers/open-bowl-scrapers/125862.html
Caterpillar Category	Open Bowl Scrapers
Caterpillar Category Path	Products > Equipment > Wheel Tractor-Scrapers > Open Bowl Scrapers > 621
Caterpillar Product Family	equipment
Caterpillar Product Page ID	125862
Datasheet URL	https://s7d2.scene7.com/is/content/Caterpillar/CM20221102-ff267-c6c8b
Wheel Base	7998 mm
Maximum Depth of Cut	315 mm
Height - Top of Cab	3612 mm
Diesel Exhaust Fluid	30.5 l
ROPS/FOPS	Meets SAE and ISO standards
Width - Outside Rear Tires	3275 mm
Top Speed - Loaded	53.9 km/h
Crankcase	30.58 l
Steering System	ISO 5010:2007
Overall Length	14.02 m
Flywheel Power - Tractor/Scraper	304 kW (407 hp)
Engine Model - Tractor	Cat® C13
Rated Engine RPM - Tractor	2000 r/min
Overall Width	3.58 m
Flywheel Power - Tractor	304 kW
Overall Shipping Height	4.03 m
Scraper Capacity - Struck	13 m³
Scraper Capacity - Heaped	18.4 m³
Rated Load	26 127 kg (57,610 lb); 26.19 tonnes (28.81 tons)
Width - Cut	3.14 m
Maximum Depth of Spread	540 mm
180° Curb-to-Curb Turning Width	11.8 m
Tires - Scraper	33.25R29**E3
Operating Weight - Empty	36185 kg
Fuel Tank Refill Capacity - Scraper	818 l
Transmission Gear - First	5 km/h
Tires - Tractor Drive	33.25R29**E3
Transmission Gear - Second	8.9 km/h
Transmission Gear - Third	12.1 km/h
Width - Overall Machine	3585 mm
Transmission Gear - Fourth	16.3 km/h
Width - Tractor	3381 mm
Transmission Gear - Fifth	21.9 km/h
Width - Inside of Bowl	3048 mm
Ejector Extend	5.2 s
Transmission Gear - Sixth	29.6 km/h
Height - Overall Shipping	4029 mm
Ejector Retract	6.7 s
Transmission Gear - Seventh	39.9 km/h
Ground Clearance - Tractor	557 mm
Bowl Lower	3.5 s
Transmission Gear - Eighth	53.9 km/h
Front of Tractor to Front Axle	3119 mm
Bowl Raise	3 s
Transmission Gear - Reverse	9.2 km/h
Axle to Vertical Hitch Pin	540 mm
Exterior Sound Level	The exterior sound power level for the standard machine (ISO 6393:2008) is 118 dB(A).
Seat Belt	SAE J386:JUN1985
Height - Scraper Blade Maximum	520 mm
Rollover Protection Structure (ROPS)	ISO 3471:2008 for up to 17 084 kg (37,664 lb)
Reverse Alarm	ISO 9533:2010
Rear Axle - Rear of Machine	2898 mm
Falling Object Protective Structure (FOPS)	ISO 3449:2005 Level II
Width - Overall Machine - Ladder Down	3790 mm
Transmission System	93 l
Width - Rear Tire Centers	2290 mm
Length - Overall Machine - Standard	14015 mm
Length - Maximum (Push-Pull)	15576 mm
Push-Pull — Operating Weight - Empty	36567 kg
Overall Length - With Bail Down	15.58 m
Bail Raise	1.8 s
Apron Raise	2.95 s
Bail Lower	3.2 s
Apron Lower	3.8 s
