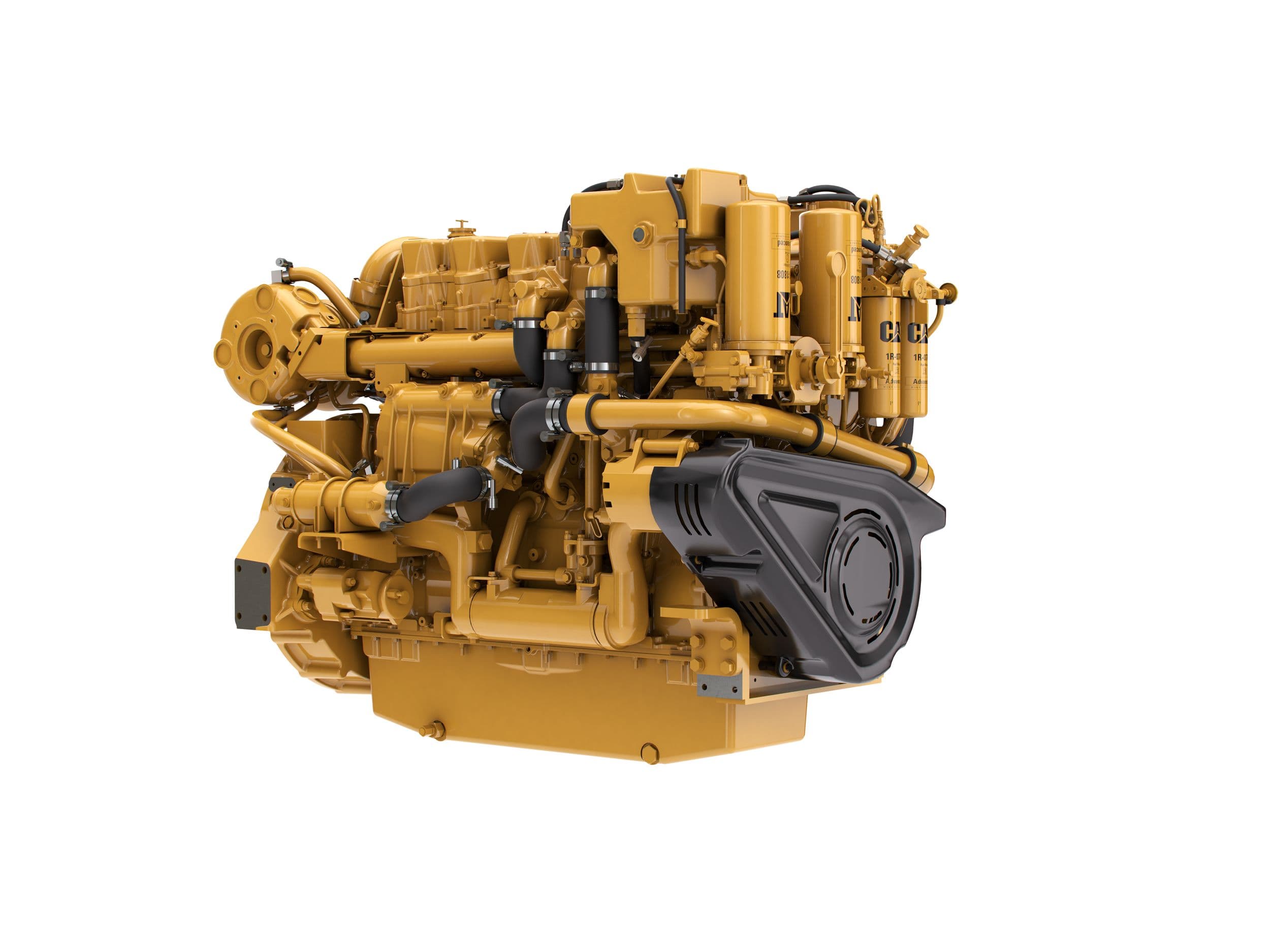

Cat C18 ACERT Propulsion Engine (Tier 3)
رقم القطعة: CAT-18493267
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
Cat C18 ACERT Propulsion Engine (Tier 3)
المواصفات
| Bore | 145 mm |
|---|---|
| Stroke | 183 mm |
| Displacement | 18.1 l |
| Model | C18 |
| Product Page | https://www.cat.com/en_US/products/new/power-systems/marine-power-systems/commercial-propulsion-engines/18493267.html |
| Caterpillar Category | Commercial Propulsion Engines |
| Caterpillar Category Path | Products > Power Systems > Marine Power Systems > Commercial Propulsion Engines > C18 |
| Caterpillar Product Family | power-systems |
| Caterpillar Product Page ID | 18493267 |
| Datasheet URL | https://s7d2.scene7.com/is/content/Caterpillar/CM20241226-c23c5-cbff7 |
| Emissions | U.S. EPA Tier 3 Commercial, IMO II, EU IWW, EU Stage V, China II |
| Aspiration | Turbocharged - Aftercooled |
| Maximum Height | 1300 mm |
| Speed Range | 1500 - 2100 rpm |
| Configuration | In-line 6, 4-Stroke-Cycle Diesel |
| Power Range | 454 - 1136 bhp (339 - 847 bkW) |
| Governor | Electroinc |
| Rotation from Flywheel End | Counterclockwise |
| Flywheel Housing | SAE No. 0 (136 teeth) or SAE No. 1 (113 teeth) |
| Refill Capacity | 49 / 68 l |
| Oil Change Interval | 250 / 500 |
| Cooling | Heat Exchanger or Keel Cooled |
| Minimum Dry Weight | 1814 kg |
| Minimum Length | 1854 mm |
| Minimum Height | 1198 mm |
| Maximum Width | 1204 mm |
| Minimum Width | 1134 mm |
