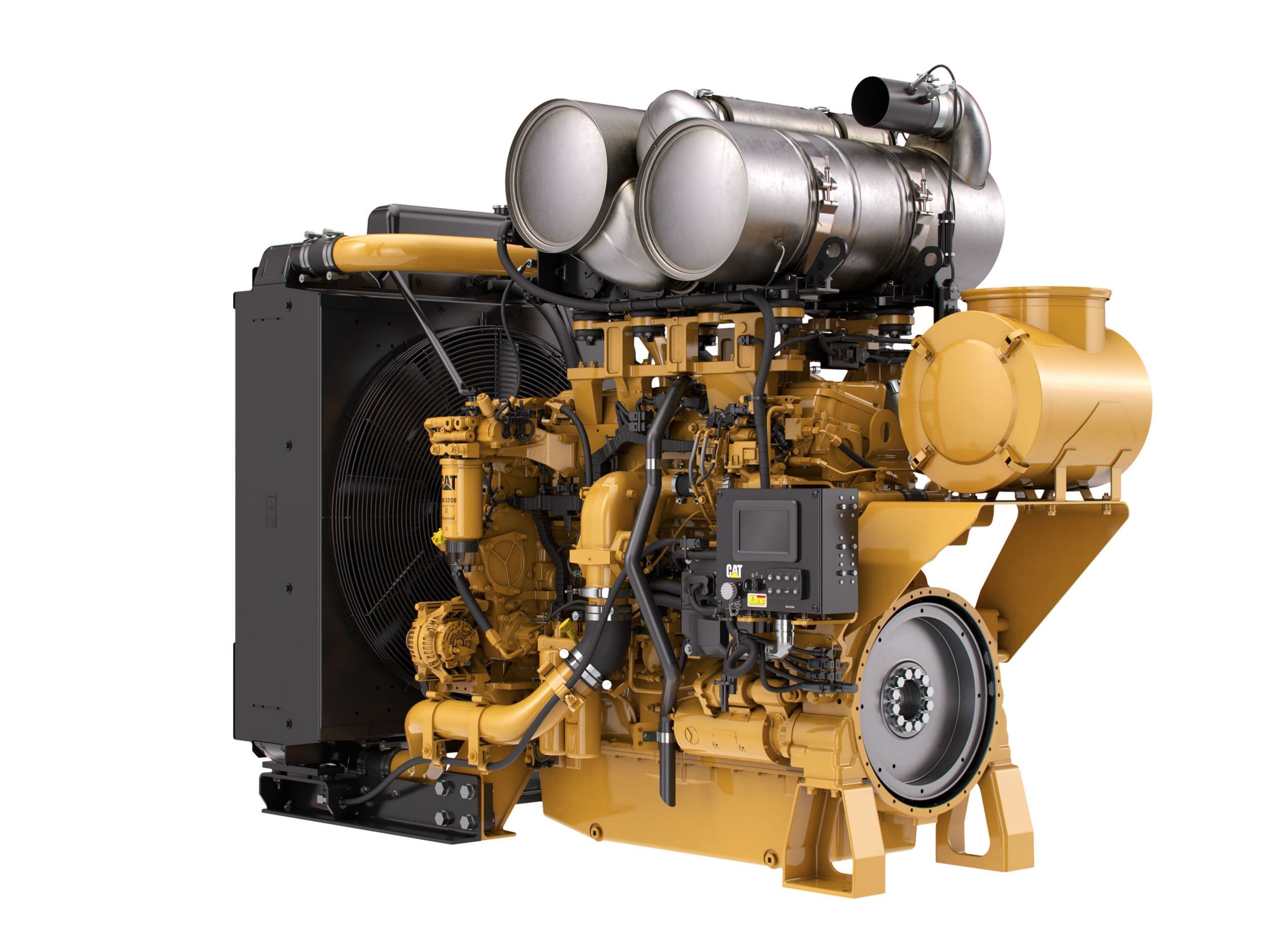

Cat® C15 Industrial Power Unit

Caterpillar

Cat® C15 Industrial Power Unit

رقم القطعة: CAT-18395875

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق ENG.

الوصف

Cat® C15 Industrial Power Unit

المواصفات

Bore137 mm
Stroke171 mm
Displacement15.2 l
ModelC15
Product Pagehttps://www.cat.com/en_US/products/new/power-systems/industrial/industrial-diesel-power-units/18395875.html
Caterpillar CategoryIndustrial Diesel Power Units
Caterpillar Category PathProducts > Power Systems > Industrial > Industrial Diesel Power Units > C15
Caterpillar Product Familypower-systems
Caterpillar Product Page ID18395875
Height2006 mm
EmissionsU.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final), Korea Stage V, China Nonroad IV
Rated Speed1800-2100 rpm
Width1229 mm
AspirationTurbocharged Aftercooled (TA)
Maximum Torque2655 Nm @ 1400 rpm
Length2488 mm
Weight2650 kg
Compression Ratio17.0:1
Rotation from Flywheel EndCounterclockwise
Maximum Power433 kW
Minimum Power354 kW
Engine ConfigurationInline 6, 4-Stroke-Cycle Diesel
AftertreatmentDOC+DPF+SCR
Diameter356 mm
Aftertreatment Dimensions — Width1112 mm
Aftertreatment Dimensions — Height654 mm
PETU Dimensions - Tier 4 Final Only — Length854 mm
PETU Dimensions - Tier 4 Final Only — Width287 mm
PETU Dimensions - Tier 4 Final Only — Height551 mm
PETU Dimensions - Tier 4 Final Only — Weight19.4 kg
Volume Capacity48.4 l
Aftertreatment Dimensions — Weight268 kg
