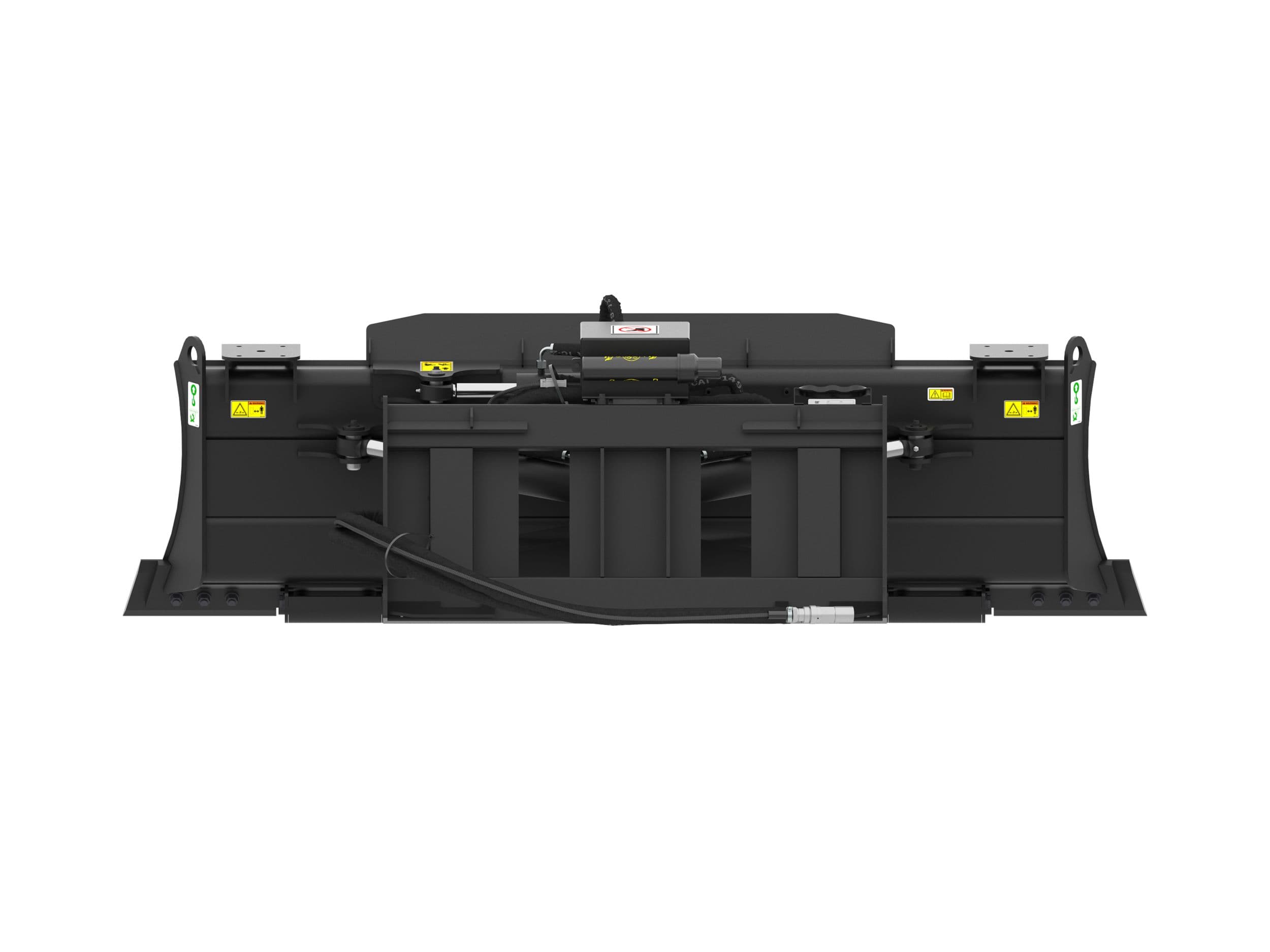

2337 mm (92 in) Dozer Blade
رقم القطعة: CAT-131221
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق ENG.
الوصف
2337 mm (92 in) Dozer Blade
المواصفات
| Model | 2337 mm (92 in) |
|---|---|
| Product Page | https://www.cat.com/en_US/products/new/attachments/blades/dozer-blades/131221.html |
| Caterpillar Category | Dozer Blades |
| Caterpillar Category Path | Products > Attachments > Blades > Dozer Blades > 2337 mm (92 in) |
| Caterpillar Product Family | attachments |
| Caterpillar Product Page ID | 131221 |
| Datasheet URL | https://s7d2.scene7.com/is/content/Caterpillar/CM20260213-97542-342e9 |
| Overall Height | 779 mm |
| Blade Width | 2342 mm |
| Blade Height | 716 mm |
| Cutting Edge Thickness | 16 mm |
| Length | 1028 mm |
| Weight | 510 kg |
| Interface Type | Skid Steer Coupler |
| Optimal Hydraulic Flow | 42-86 L/min (11-23 gpm) |
| Optimal Hydraulic Pressure | 145-235 bar (2100-3400 psi) |
| Required Hydraulics | Standard Flow w/14 pin Electrical |
| Width - Fully Angled | 2049 mm |
| Maximum Blade Angle - Right/Left of Center | 30 degrees |
| Tilt Angle Range | +/-10 degrees |
